AOC e2752Vh User Manual

38

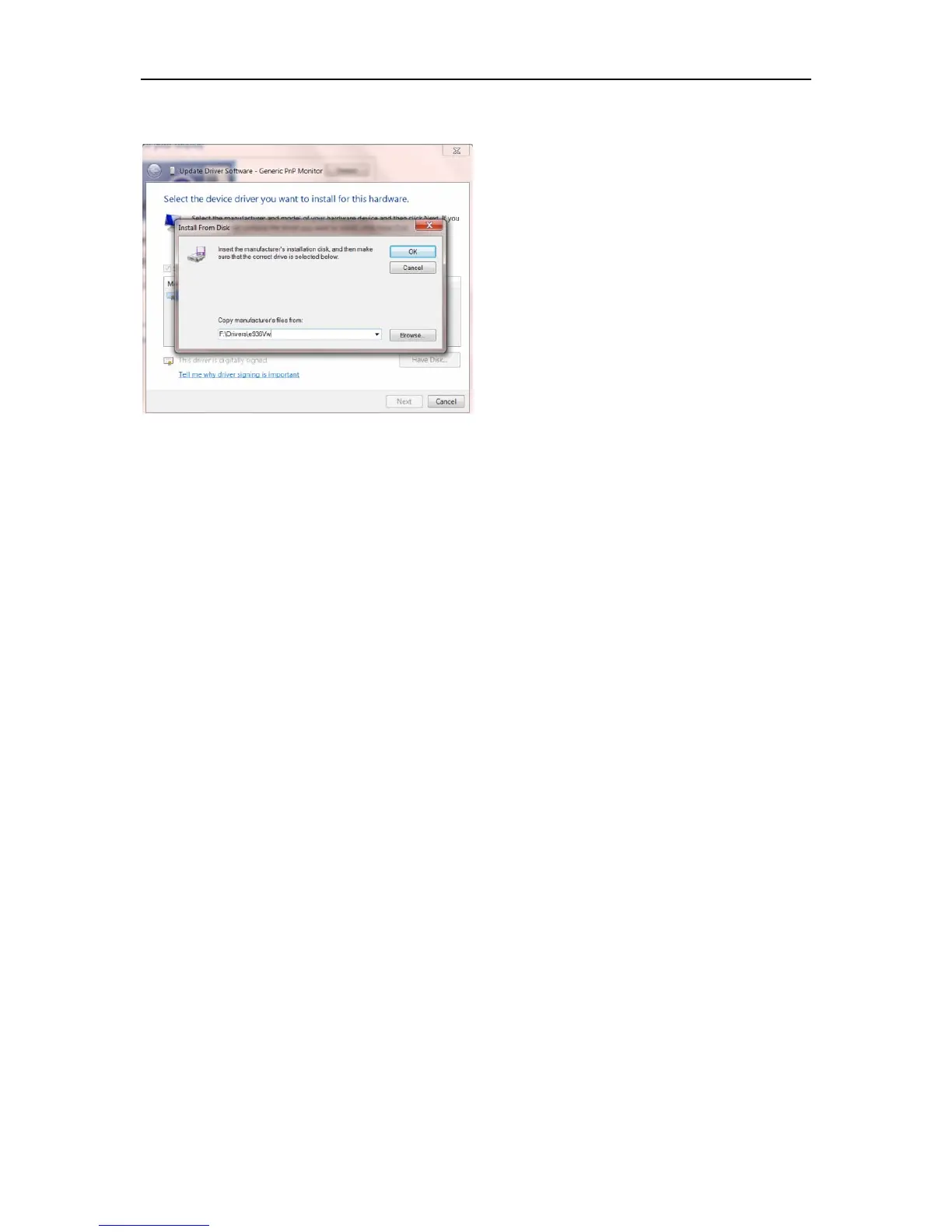

10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
13. Close all open windows and remove the CD.
14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.

AOC e2752Vh Specifications

General

3D	No
Aspect ratio	16:9
Response time	2 ms
Display diagonal	27 \
Supported video modes	1080p
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
DVI-I ports quantity	-
USB Type-A downstream ports quantity	0
Product color	Black
LED indicators	Power
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight (without stand)	- g
