AOC e2752Vh User Manual

40

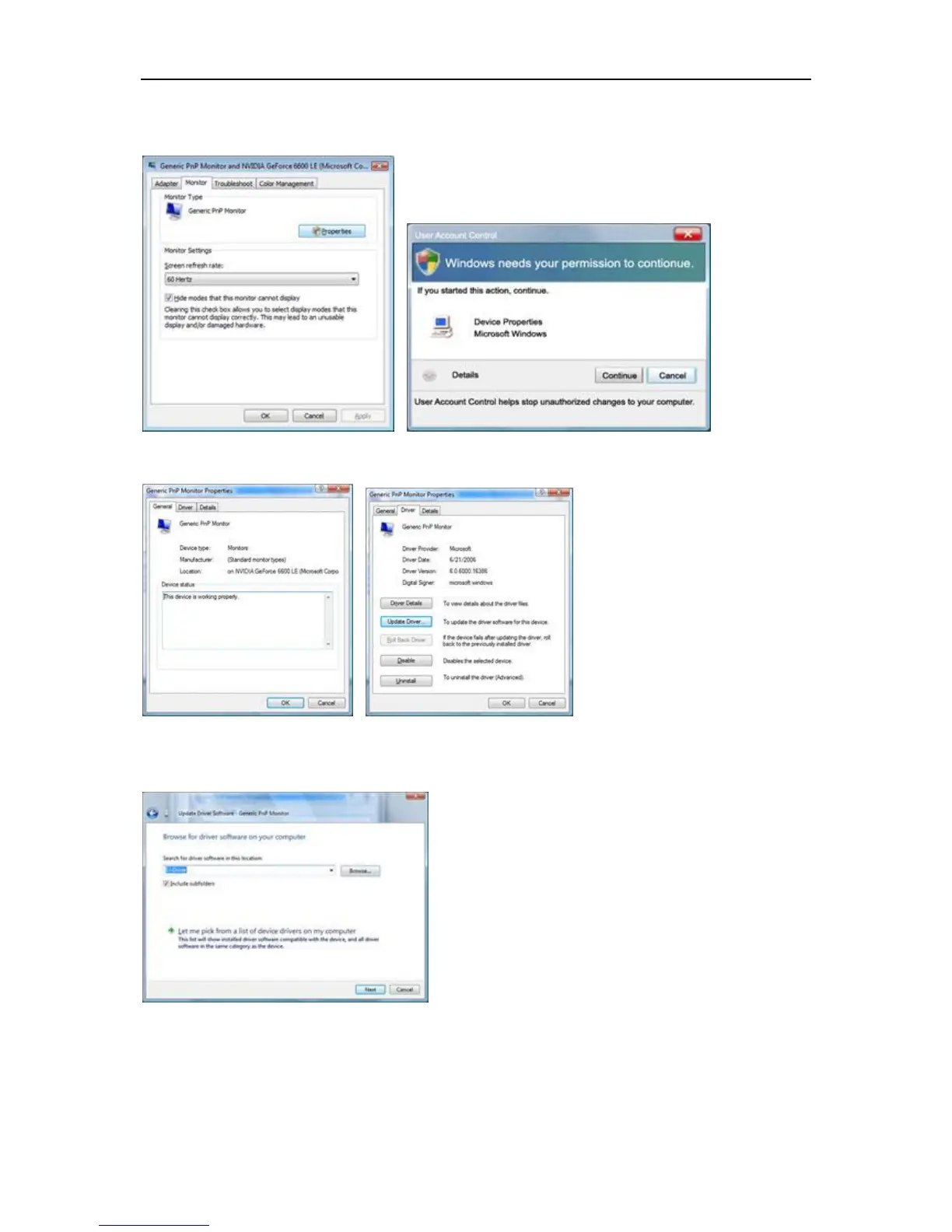

4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your
monitor is completed. The monitor can be used as is.
If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".
5. Click "Update Driver..." in the "Driver" tab.
6. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers
on my computer".
7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive
F:\Driver (CD-ROM Drive).
8. Select your monitor model and click on the 'Next' button.
9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

AOC e2752Vh Specifications

General

3D	No
Aspect ratio	16:9
Response time	2 ms
Display diagonal	27 \
Supported video modes	1080p
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
DVI-I ports quantity	-
USB Type-A downstream ports quantity	0
Product color	Black
LED indicators	Power
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight (without stand)	- g
