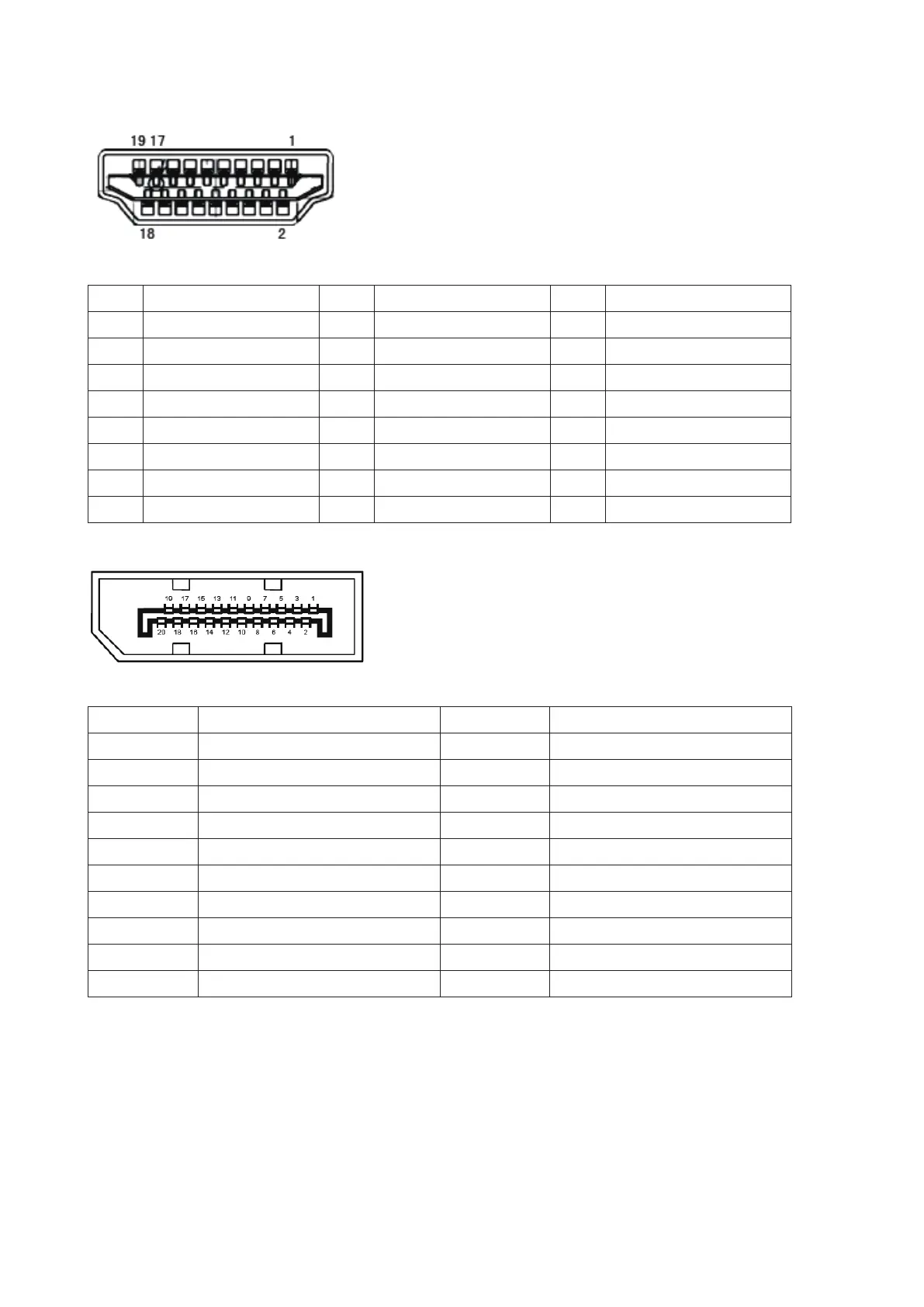

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC G4309VX/D and is the answer not in the manual?

AOC G4309VX/D Specifications

General

Panel type	VA
Screen shape	Flat
Display diagonal	43 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	4000:1
Display number of colors	1.07 billion colors
Display brightness (typical)	720 cd/m²
HDMI	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
USB Type-A downstream ports quantity	4
Cable lock slot	-
Panel mounting interface	100 x 200 mm
Power consumption (standby)	- W
Power consumption (typical)	125 W
RMS rated power	7 W
Product color	Black
Market positioning	Gaming
