60

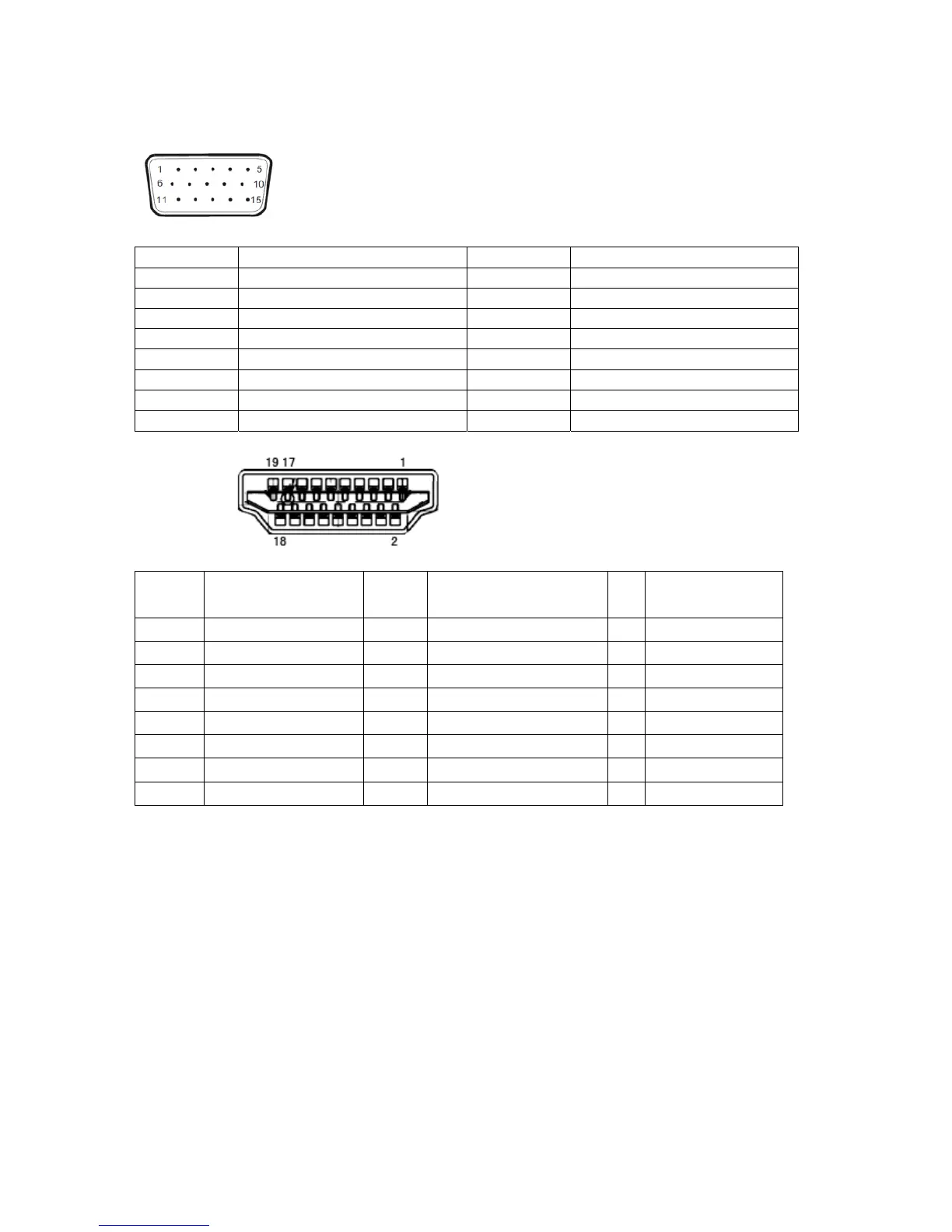

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin
No.
Signal Name
1 TMDS Data 2+ 9 TMDS Data 0 17 DDC/CEC Ground
2 TMDS Data 2 Shield 10 TMDS Clock + 18 +5V Power
3 TMDS Data 2 11 TMDS Clock Shield 19 Hot Plug Detect
4 TMDS Data 1+ 12 TMDS Clock
5 TMDS Data 1Shield 13 CEC
6 TMDS Data 1 14 Reserved (N.C. on device
7 TMDS Data 0+ 15 SCL
8 TMDS Data 0 Shield 16 SDA
