4.3 Panel Specification
4.3.1 General Features
LM230WF3 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode (White LED) backlight system
without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type
display operating in the normally black mode. It has a 23 inch diagonally measured act ive display area wi th FHD
resolut ion (1080 ver t ical by 1920hor izontal pixel ar ray) Each pixel is divided into Red, Green and Blue sub-pixels
or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a
8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with A-FRC (Advanced
Frame Rate Control). It has been designed to apply the 8Bit 2 port LVDS interface. It is intended to support displays
where high brightness, super wide viewing angle, high color saturation, and high color are important.

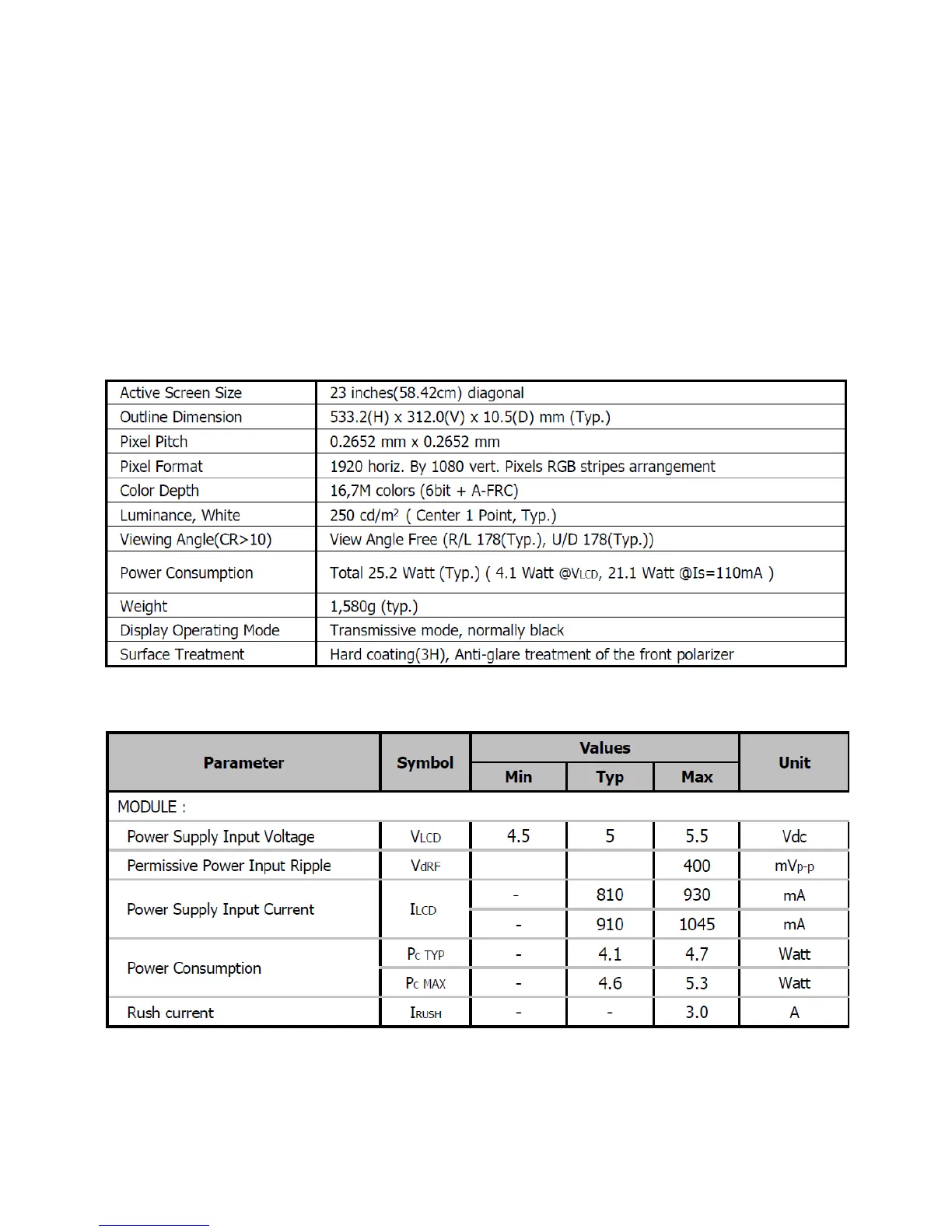

4.3.2 Display Characteristics
