AOC I2369Vm

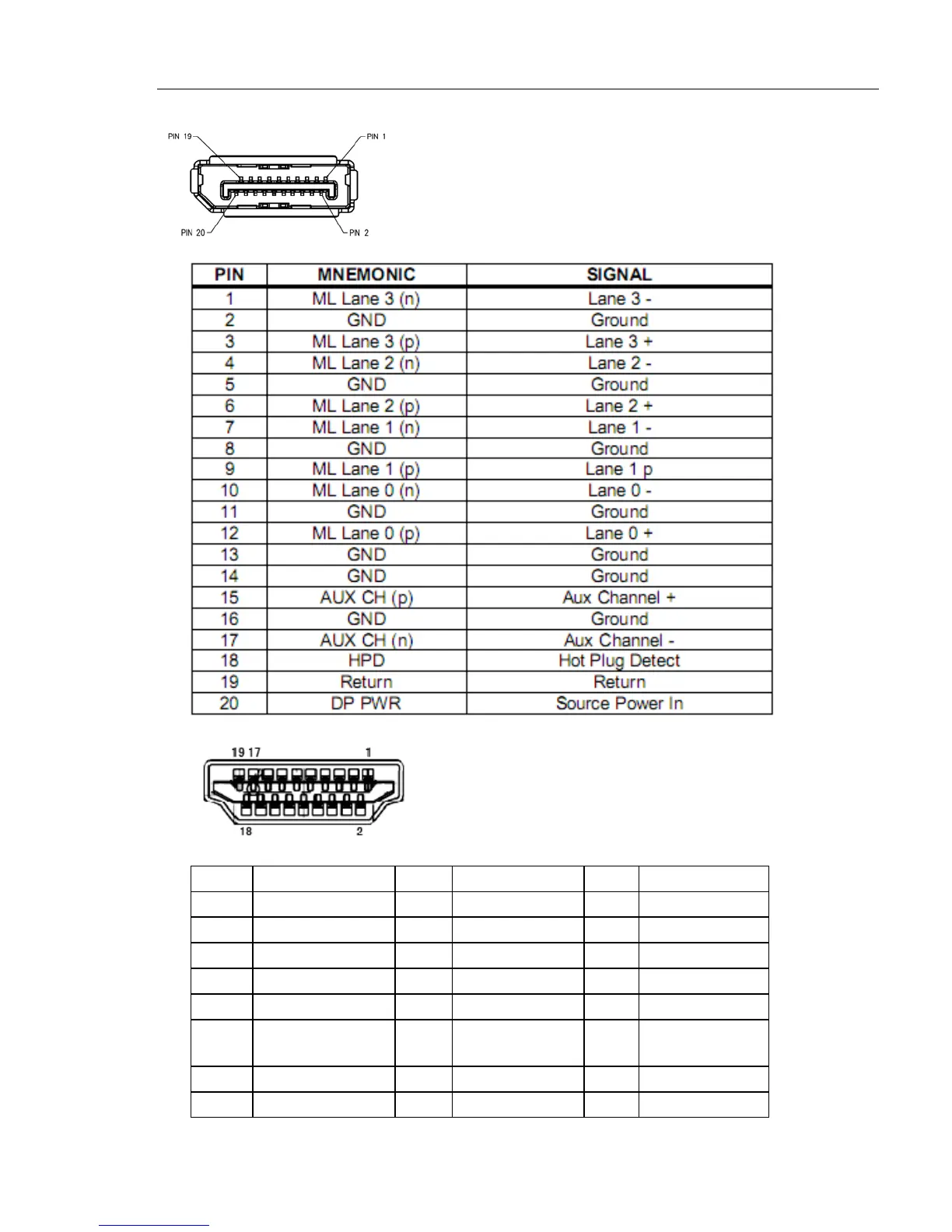

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1 TMDS Data 2+ 9 TMDS Data 0 17
DDC/CEC Ground
2 TMDS Data 2 Shield 10 TMDS Clock + 18 +5V Power
3
TMDS Data 2
11 TMDS Clock Shield 19 Hot Plug Detect
4 TMDS Data 1+ 12
TMDS Clock
5 TMDS Data 1Shield 13 CEC
6
TMDS Data 1
14
Reserved (N.C. on
device
7 TMDS Data 0+ 15 SCL
8 TMDS Data 0 Shield 16 SDA

