AOC L22DK99U

77

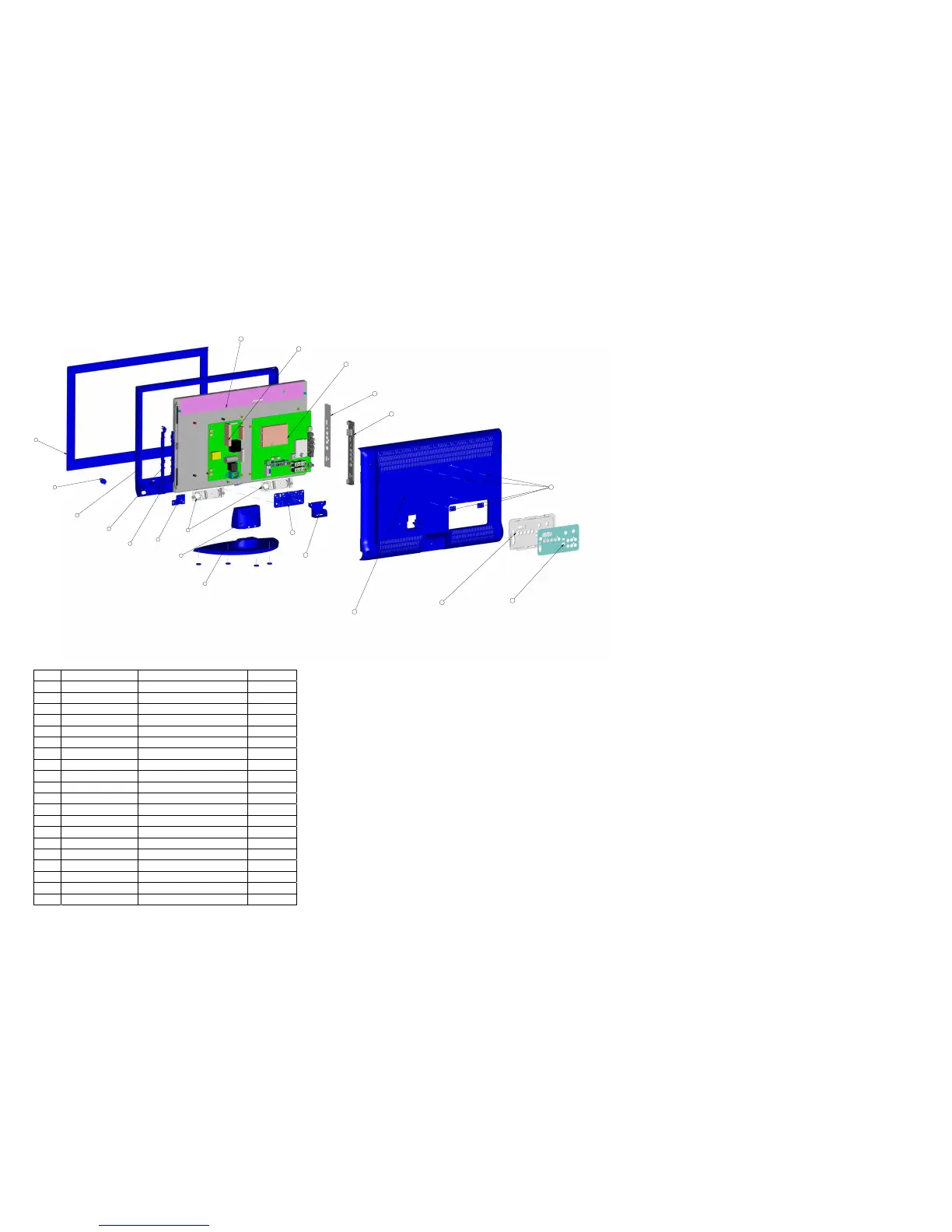

10. Exploded View
For 22”
1
2
3
4
5
6
7
8
9
1 1
2 1
3
1
4 1
5
1
6 1
7
1
8
1
9
1
0
2
10
ITEM PART NAME PART NO QUANTITY
1 DECO P34E0283ADTA1L0100 1
2 LENS P33E0130AFT 1C0100 1
3 BEZEL P34T0282ADT 1L0130 1
4 FUNCTION KEY P33T0132ADT 1L0100 1
5 KEY BOARD KEPFAZA3 1
6 IR BOARD IRPFAZA3 1
7 SPEAKER 078G0050A03 K 1
8 STAND P34E0286ADT 1L0100 1
9 BASE P34E0285ADT 1L0133 1
10 PANEL 750TVV216EBA21N000 1
11 HINGE-BKT A15T0516201 1
12 HINGE A37T0104012 1
13 REAR COVER P34E0284ADT 1L0130 1
14 COVER_REAR_IO Z34T0076 1101A 1
15 REAR IO LABEL Z40G000261514A 1
16 BKT-VESA P15T8299 1 4
17 BKT-SIDE-IO P15T0432202 1
18 SIDE-IO-LABEL Z40G000261515A 1
19 MAIN BOARD CBPFA2QCZ1 1
20 POWER BOARD PWTVAC44ESA1 1
