22″LCD TV AOC L22W831
2.3 How to Connect
Connecting your TV to a power outlet
• Plug the power cord into a power outlet.
Connecting an outside antenna
Antenna cables come in two types: 75 ohm and 300 ohm.
• If your antenna cable has a 75 ohm connector, connect the cable to the coaxial jack on the back of your TV.
• If your antenna cable has a 300 ohm connector, connect the cable to a 300-75 ohm adapter (not included), connect
the adapter to a 75 ohm cable, then connect the other end of the 75 ohm connector to the coaxial jack on the back of
your TV.
To connect cable TV without a converter/descrambler box:
1 Connect one end of a 75 ohm cable to the coaxial jack on the back of your TV.
2 Connect the other end of the cable to the cable TV wall outlet.
To connect cable TV with a converter/descrambler box:

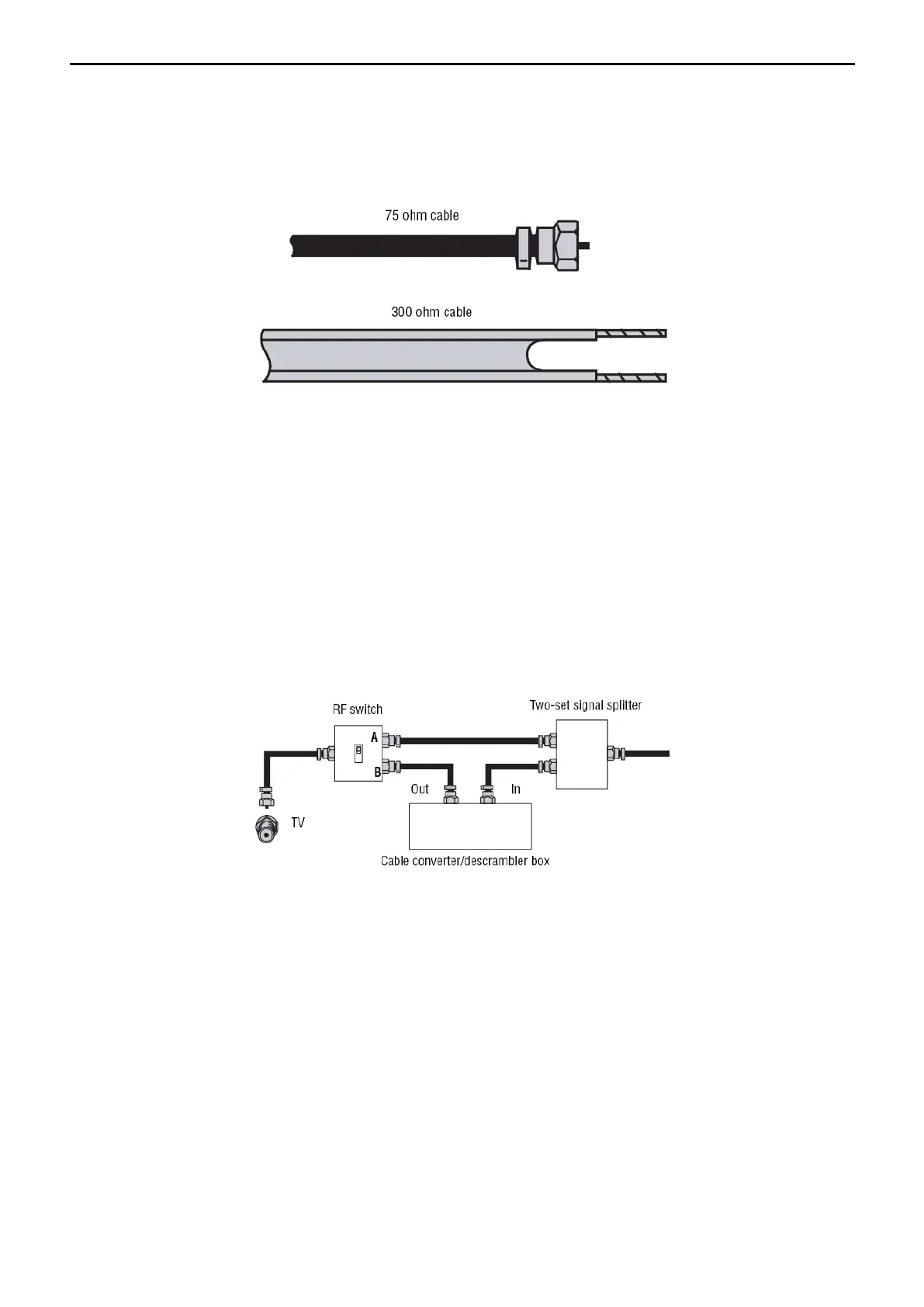

• Use the following illustration to connect a converter/descrambler box. (The RF switch and the signal splitter are not
provided.) Set the RF switch to the A position to watch unscrambled channels using your TV remote control. Set the
RF switch to the B position to watch scrambled channels using the converter/descrambler controls.
To connect an external signal source:
1 For composite video—plug the audio/video cable into the AV IN L and R jacks (6), and AV IN VIDEO (4) jacks
on the back of your TV, then connect the other ends to the corresponding jacks on the external signal source- OR
–For S-Video—Plug in the audio cables as described above, then plug one end of an S-Video cable into the AV IN
S-Video(5) jack on the back of your TV and the other end into the S-Video jack on external signal source.
- OR - For component video—Plug the Y, Pb, and Pr video (3)cables into the component input jacks, and the
Audio L and Audio R cables into the COMPONENT (2) audio jacks on the back of your TV, then plug the other ends
of the cables into the corresponding jacks on the external signal source.
- OR - For HDMI—plug one end of an HDMI (1) cable into the back of the TV and the other end into an HDMI device.
2 Turn on your TV.
3 Press the INPUT to open the input source menu, press v or ^ to select the external signal source you want to
watch, and then press ENTER.
4 Turn on external signal source.
To Next Page
