INSTALLATION

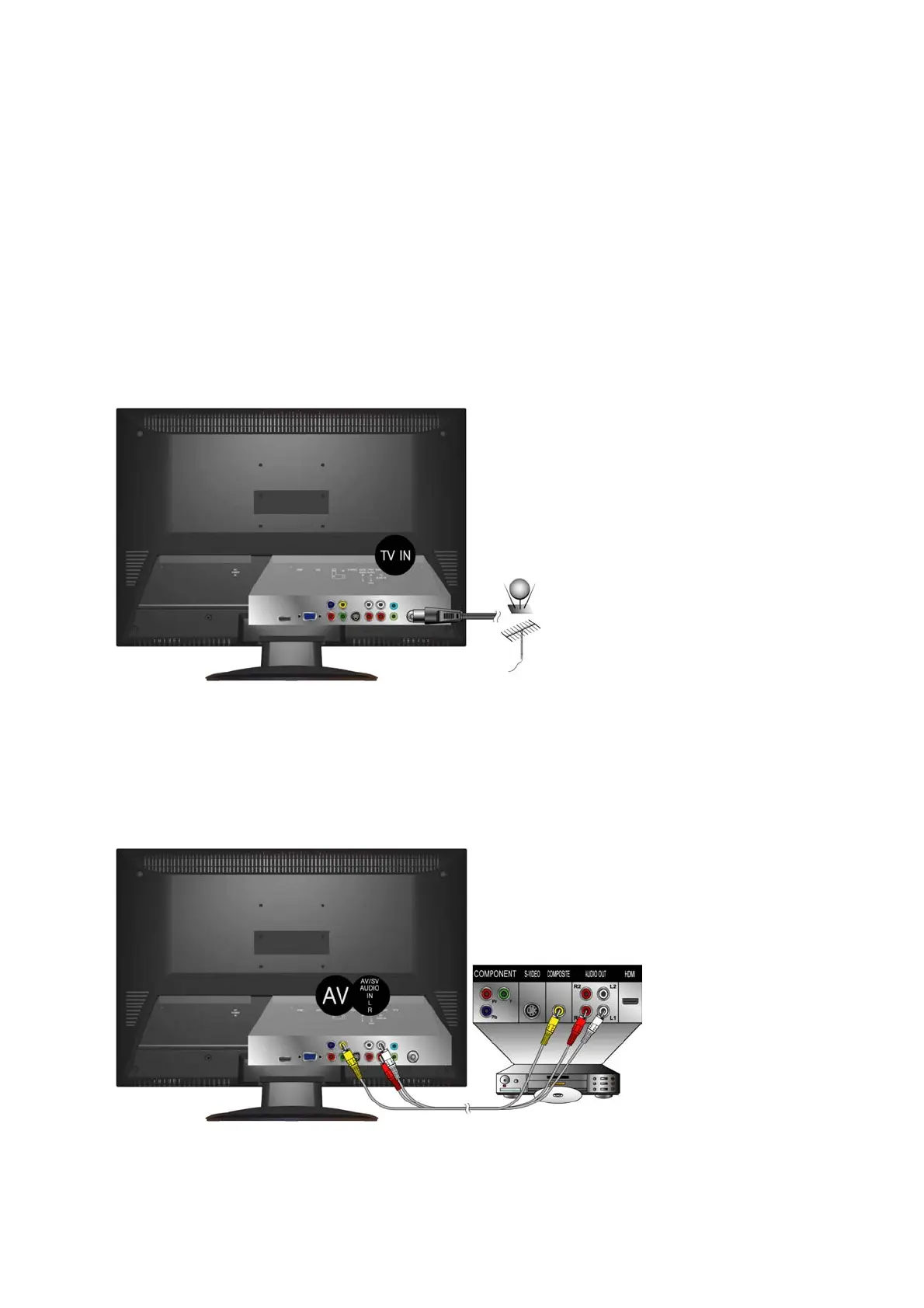

Connecting RF antenna and Cable TV
Make sure the power is OFF before installing your LCD TV.
1) AIR TV: Connect the LCD TV to TV antenna with 75-ohm coaxial cable. Preset the air TV
channels into memory with Auto Scan function when using an antenna TV system. This air
input jack both support TV and DTV systems. Besides, the TV system (NTSC) and DTV
system (ATSC) can be found by the scanning of “AIR” with Auto Scan function. See page 33.
2) Cable TV: Connect the LCD TV to the cable with CATV and Digital cable. Preset the cable TV
channels into memory with Auto Scan function when using a cable TV system. The cable
input jack both support CATV and Digital cable systems. Besides, the CATV system (cable TV)
and Digital cable system (clear QAM) can be found by the scanning of “Cable” with Auto Scan
function. See page 33.
Note: Users can select either Air or Cable TV cable to be connected to the TV IN jack. To
watch both of them, use an adapter to connect both Air and Cable cables to the jack.
Connecting to DVD / Set Top Box
Connect Video/Audio cables from compatible devices into the back panel of LCD TV.
1) With AV cable:
RF Cable, CATV/ Digital cable
or Adapter (not supplied)
VCD or DVD Player
RCA A/V Cable

AOC L24H898 Specifications

General

Power LED	Yes
Pixel pitch	0.2715 x 0.2715 mm
Cable lock slot	No
Display diagonal	23.6 \
Display brightness	300 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	1080p
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	145 mm
Package width	620 mm
Package height	510 mm
Package weight	9000 g
Certification	FCC, cULus, RoHS, EPA3.0
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Audio (L/R) in	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
LED indicators	Stand-by
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	75 W
RMS rated power	10 W

Weight and Dimensions

Depth (with stand)	216 mm
Width (with stand)	566.7 mm
Height (with stand)	442.7 mm
Weight (with stand)	7000 g
Depth (without stand)	86 mm
Height (without stand)	386.7 mm
