26” LCD TV AOC L26W861
34

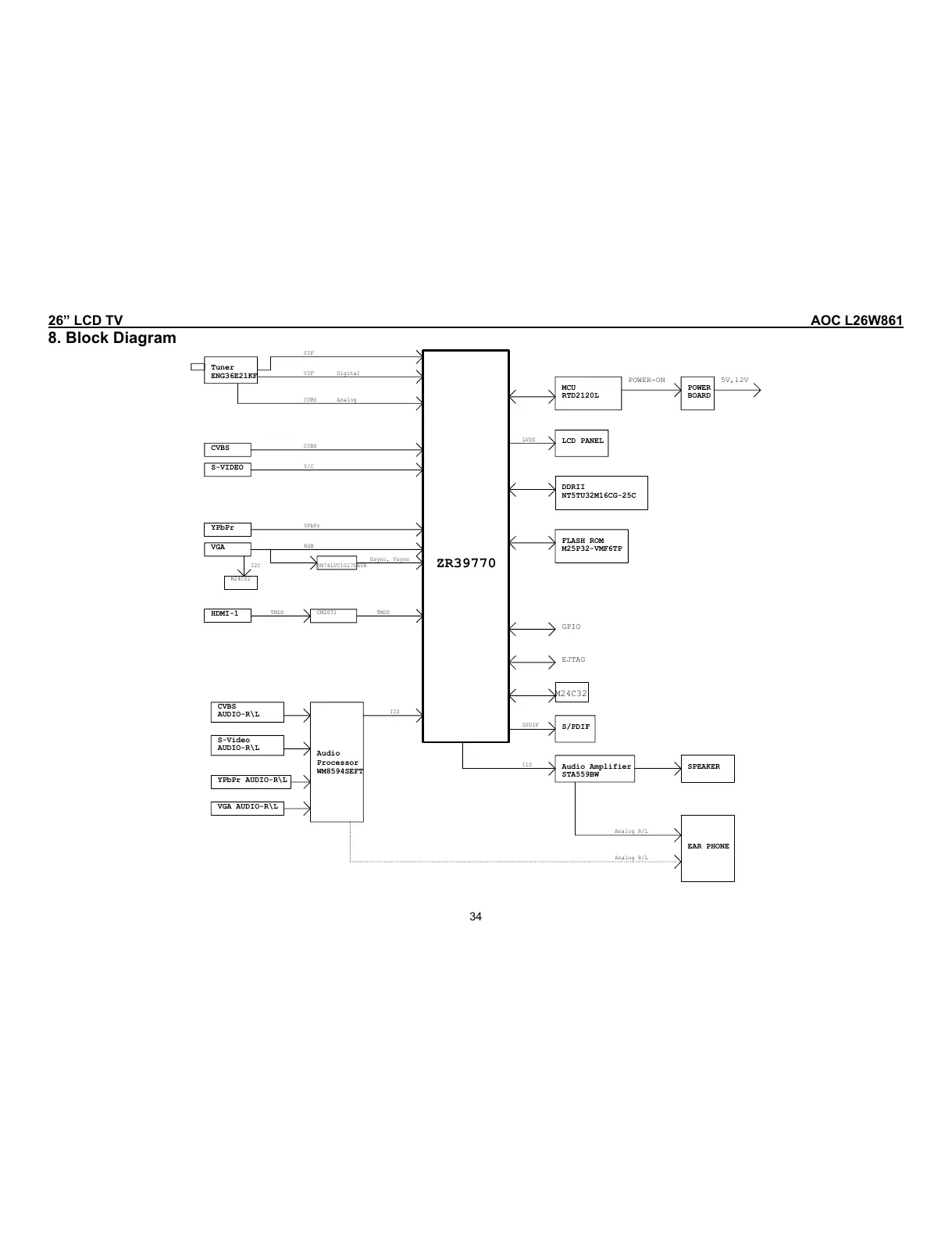

8. Block Diagram
POWER-ON
VGA AUDIO-R\L
GPIO
TMDS
LVDS
EJTAG
Tuner
ENG36E21KF
CVBS
SIF
Analog R/L
Audio Amplifier
STA559BW
CVBS
AUDIO-R\L
POWER
BOARD
Analog R/L
Y/C
LCD PANEL
YPbPr
IIS
Digital
Hsync, Vsync
YPbPr AUDIO-R\L
S-VIDEO
M24C32
SPDIF
YPbPr
CVBS
MCU
RTD2120L
VIF
I2C
SPEAKER
IIS
ZR39770
CVBS
HDMI-1
FLASH ROM
M25P32-VMF6TP
DDRII
NT5TU32M16CG-25C
CM2031
EAR PHONE
Analog
TMDS
S-Video
AUDIO-R\L
VGA
SN74LVC1G17DBVR
5V,12V
RGB
M24C02
Audio
Processor
WM8594SEFT
S/PDIF
