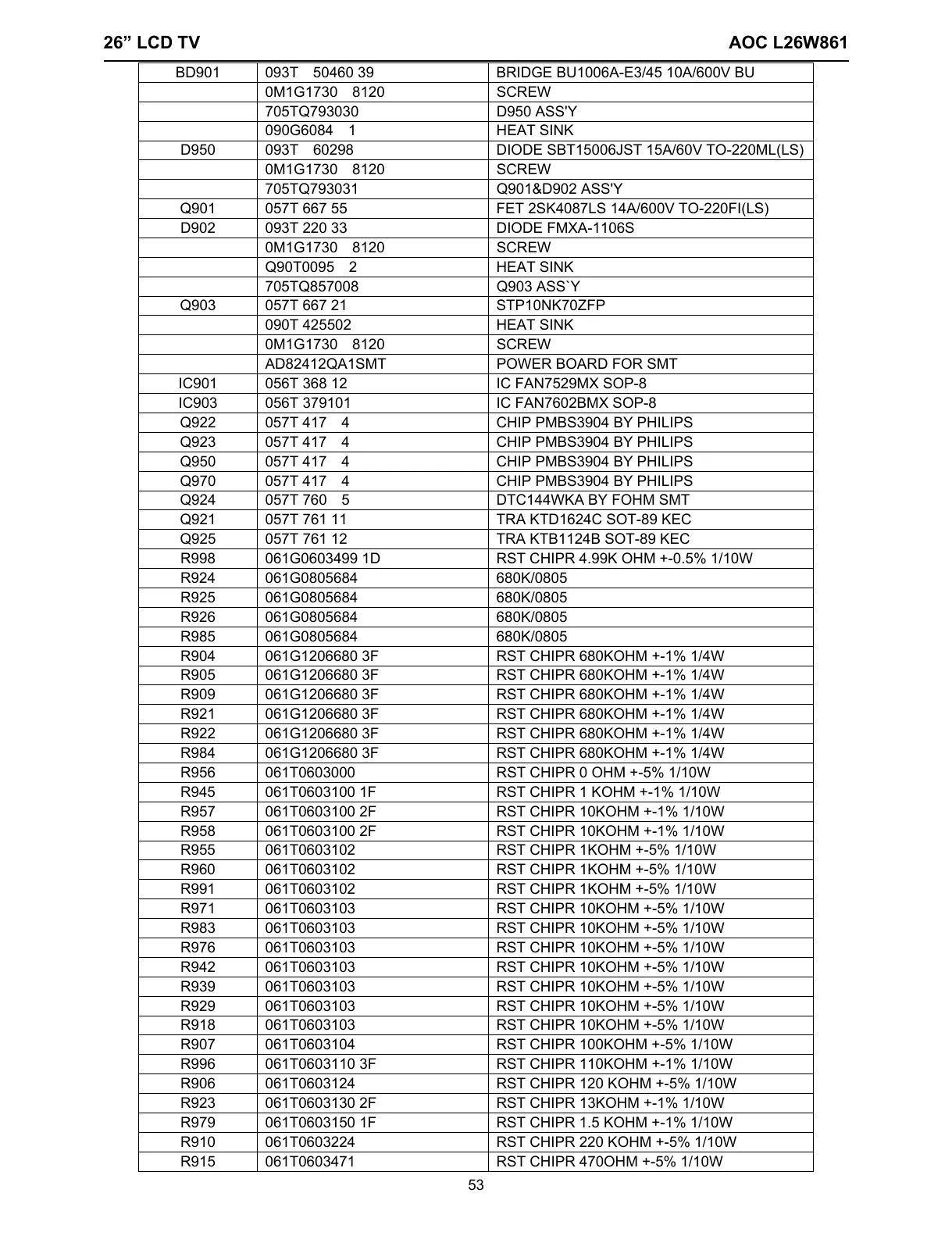

AOC L26W861 Service Manual

26” LCD TV AOC L26W861
53
BD901 093T 50460 39 BRIDGE BU1006A-E3/45 10A/600V BU
0M1G1730 8120 SCREW
705TQ793030 D950 ASS'Y
090G6084 1 HEAT SINK
D950 093T 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)
0M1G1730 8120 SCREW
705TQ793031 Q901&D902 ASS'Y
Q901 057T 667 55 FET 2SK4087LS 14A/600V TO-220FI(LS)
D902 093T 220 33 DIODE FMXA-1106S
0M1G1730 8120 SCREW
Q90T0095 2 HEAT SINK
705TQ857008 Q903 ASS`Y
Q903 057T 667 21 STP10NK70ZFP
090T 425502 HEAT SINK
0M1G1730 8120 SCREW
AD82412QA1SMT POWER BOARD FOR SMT
IC901 056T 368 12 IC FAN7529MX SOP-8
IC903 056T 379101 IC FAN7602BMX SOP-8
Q922 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q923 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q950 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q970 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q924 057T 760 5 DTC144WKA BY FOHM SMT
Q921 057T 761 11 TRA KTD1624C SOT-89 KEC
Q925 057T 761 12 TRA KTB1124B SOT-89 KEC
R998 061G0603499 1D RST CHIPR 4.99K OHM +-0.5% 1/10W
R924 061G0805684 680K/0805
R925 061G0805684 680K/0805
R926 061G0805684 680K/0805
R985 061G0805684 680K/0805
R904 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R905 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R909 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R921 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R922 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R984 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R956 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R945 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R957 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W
R958 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W
R955 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R960 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R991 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R971 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R983 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R976 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R942 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R939 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R929 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R918 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R907 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R996 061T0603110 3F RST CHIPR 110KOHM +-1% 1/10W
R906 061T0603124 RST CHIPR 120 KOHM +-5% 1/10W
R923 061T0603130 2F RST CHIPR 13KOHM +-1% 1/10W
R979 061T0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W
R910 061T0603224 RST CHIPR 220 KOHM +-5% 1/10W
R915 061T0603471 RST CHIPR 470OHM +-5% 1/10W
