32’’ LCD TV AOC L32W665
16

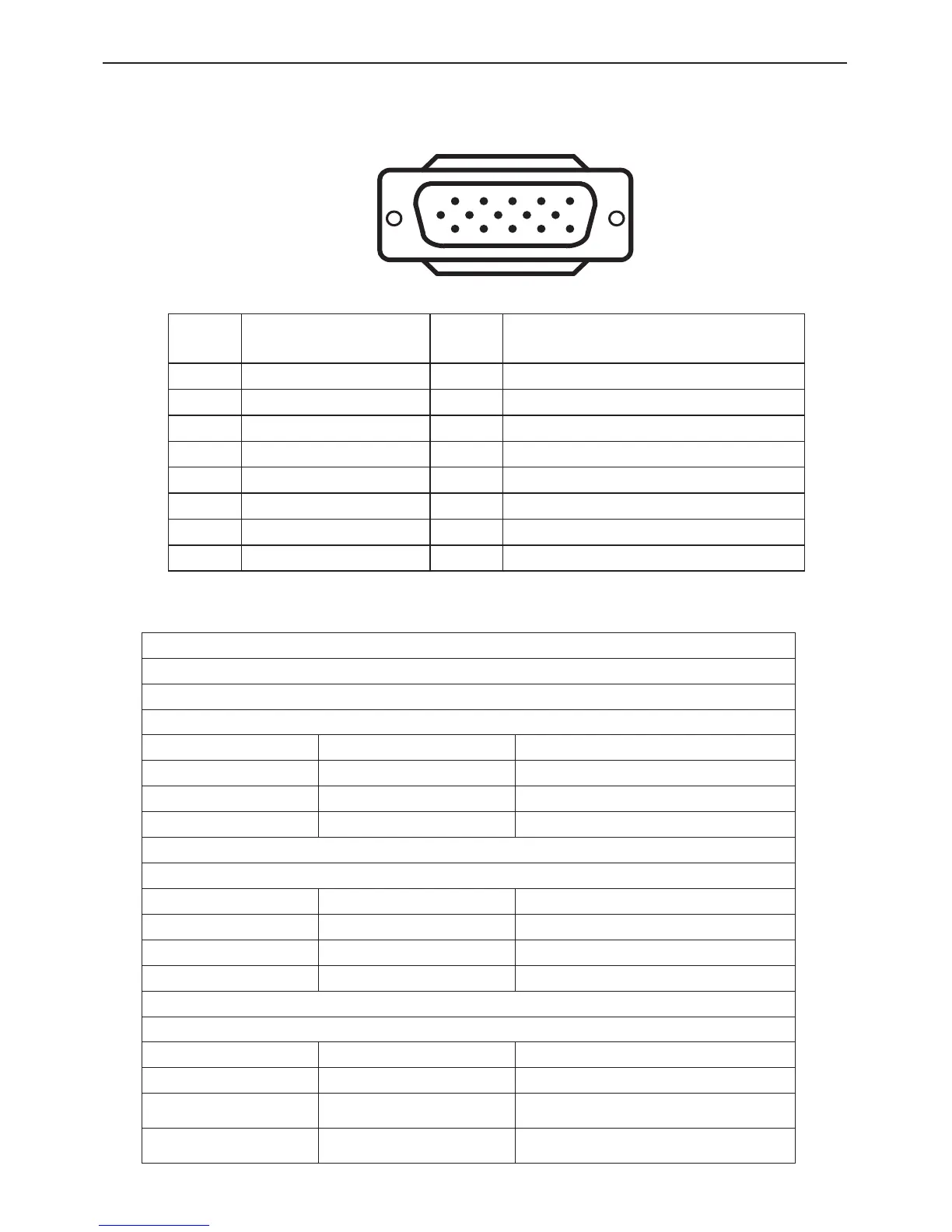

4. Input/Output Specification
4.1 RGB Signal input
15 - Pin Color Display Signal Cable
Pin No. Description Pin No. Description
1 Red Video 9
No Pin!
2 Green Video 10 Sync Ground
3 Blue Video 11 SDA(Remote Control)
4 SCL(Remote Control) 12
Serial Data for DDC
5 Ground 13
H-Sync.
6 Red Video Ground 14
V-Sync.
7 Green Video Ground 15
Serial Clock for DDC
8 Blue Video Ground
4.2 AV/S-Video/Component signal input
Video / S-Video / Component Video Input
All tests must be performed under “video standard testing conditions” unless otherwise specified
AV (Composite Video input)
Video1 / Video2
System NTSC
Amplitude 1.0 V(p-p), negative sync.
Impedance 75 ohm terminated
S-Video (Y / C input)
S-Video1 / S-Video2
System NTSC
Y signal amplitude 1.0Vpp (including sync)
C signal amplitude 0.286Vpp
Impedance 75 ohm terminated
Component (Y, Pb/Cb, Pr/Cr input)
Component1/Component2
System 1080i, 480p, 720p, 480i
Y signal amplitude 1.0Vpp (including sync)
Cr, (R-Y) / Cb, (B-Y)
Signal amplitude
±0.35Vpp, 75 ohm
Impedance
75 ohm terminated
1
6
11 15
5
10
