HDMI S-Video Composite Pr Pb Y PC Audio in 15-pin D-Sub

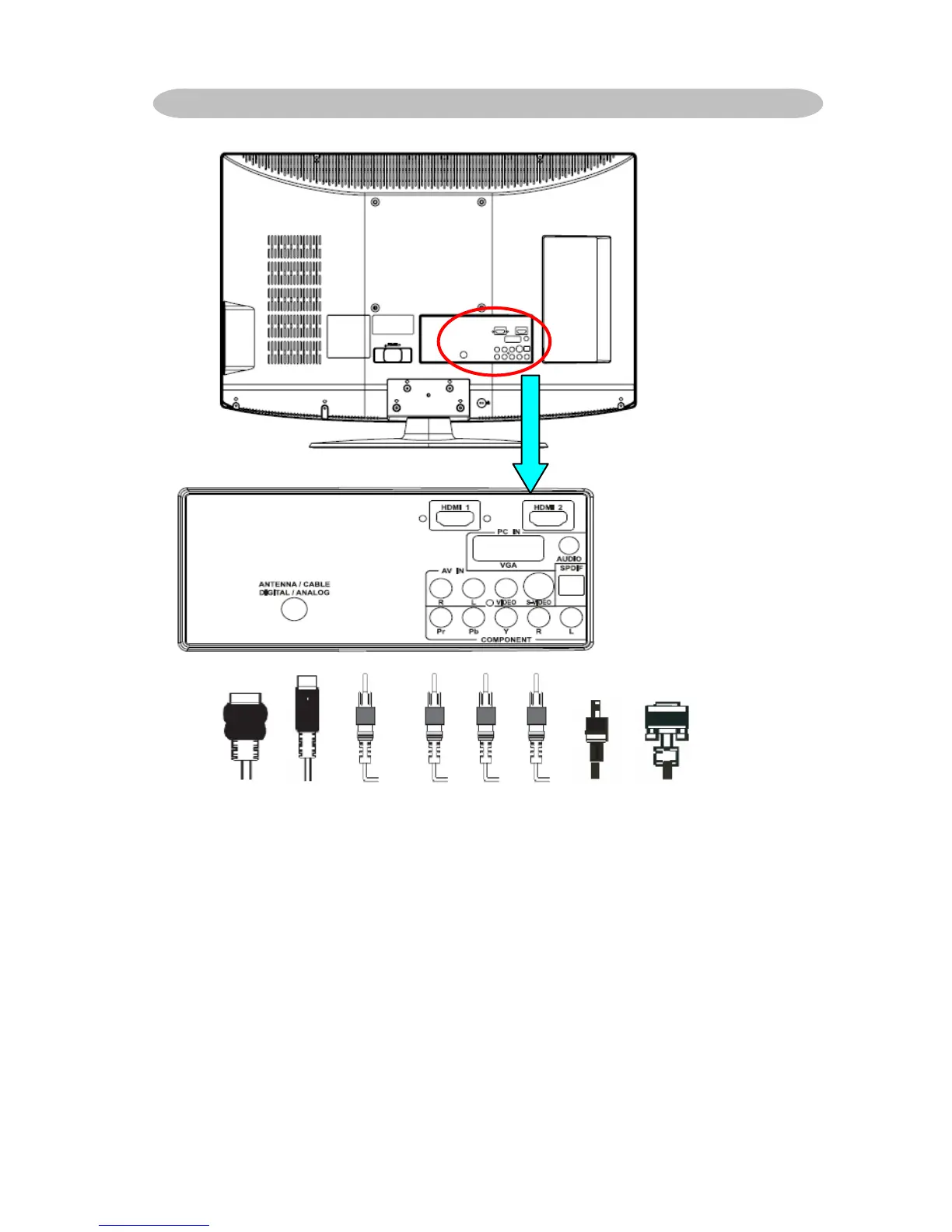

1. HDMI – Connect the primary source for digital video such as a DVD
multimedia player or set top box through this all digital connector.
The white color band on the rear of the TV indicates this connection.
2. RGB PC – Connect the video and audio cables from a computer
here.
3. AV/S-VIDEO IN – Connect the primary source for composite video
devices, such as a VCR or video game. Use the white and red
connectors to connect the external audio from the same source.
The signal being carried by the S-Video cable and connector, if
connected, will take priority over the Video RCA connector (yellow
connector).
PERIPHERAL CONNECTION GUIDE
