AOC L32W961 User Manual

17

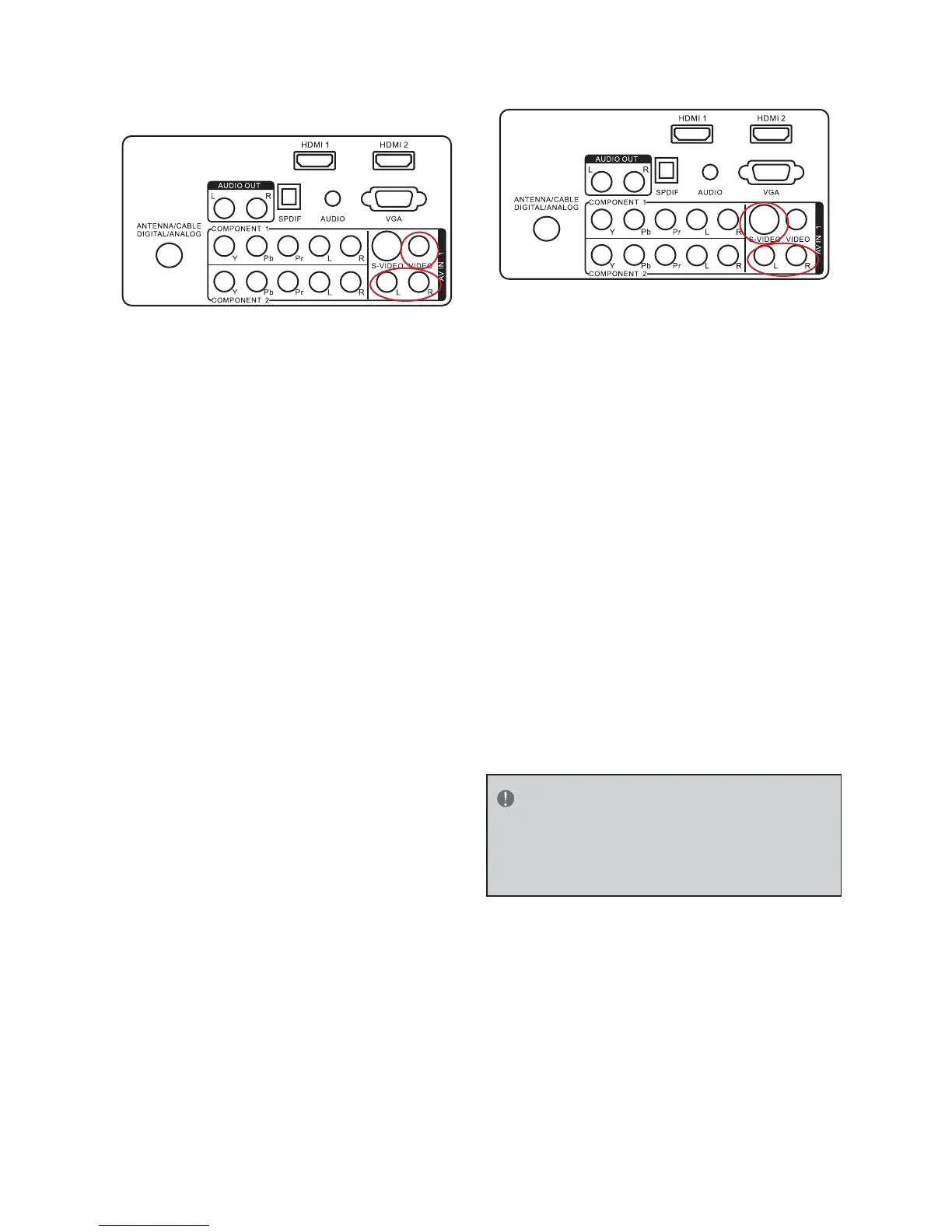

Using Composite (AV) Video
Connecting your DVD Player (Good)
1. Turn off the HDTV and DVD player.
2. Connect the Video (yellow color)
connector on your DVD player to the
Video (yellow color) connector in the AV
group.
3. Connect the R (red color) and L (white
color) audio connectors on your DVD
player to the corresponding R (red color)
and L (white color) audio input connectors
in the AV group.
4. Turn on the HDTV and DVD Player.
5. Select AV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the VIDEO button on the
Remote Control.
Connecting Your VCR or Video Camera
1. Turn off the HDTV and VCR or Video
Camera.
2. Connect the S-Video jack on the rear of
your VCR or Video Camera to the S-Video
jack in the AV group on the rear of the
HDTV.
3. Connect an audio cable (white and red
connectors) cable to the audio output
connectors associated with the S-Video
output on your VCR or Video Camera
and connect the other end to the audio
connectors associated with the AV input
on the rear of the HDTV.
4. Turn on the HDTV and VCR or Video
Camera.
5. Select AV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the VIDEO button on the
Remote Control.
NOTE
f
Refer to your VCR or Video Camera user
manual for more information about the
video output requirements of the product.

AOC L32W961 Specifications

General

Comb filter	3D
Response time	6.5 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	20000:1
Contrast ratio (typical)	2000:1
Supported graphics resolutions	1366 x 768
Manual	Yes
Package depth	218 mm
Package width	899 mm
Package height	680 mm
Package weight	15000 g
Certification	FCC, cULus, RoHS, EPA3.0
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
PC Audio in	No
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Digital audio optical out	1
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	200 x 200 mm
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	232.5 mm
Width (with stand)	792.7 mm
Height (with stand)	559.5 mm
Weight (with stand)	12300 g
Depth (without stand)	98 mm
Height (without stand)	519.5 mm
Weight (without stand)	11000 g
