AOC L42H961

42ƎLCD TV AOC L42H961
70

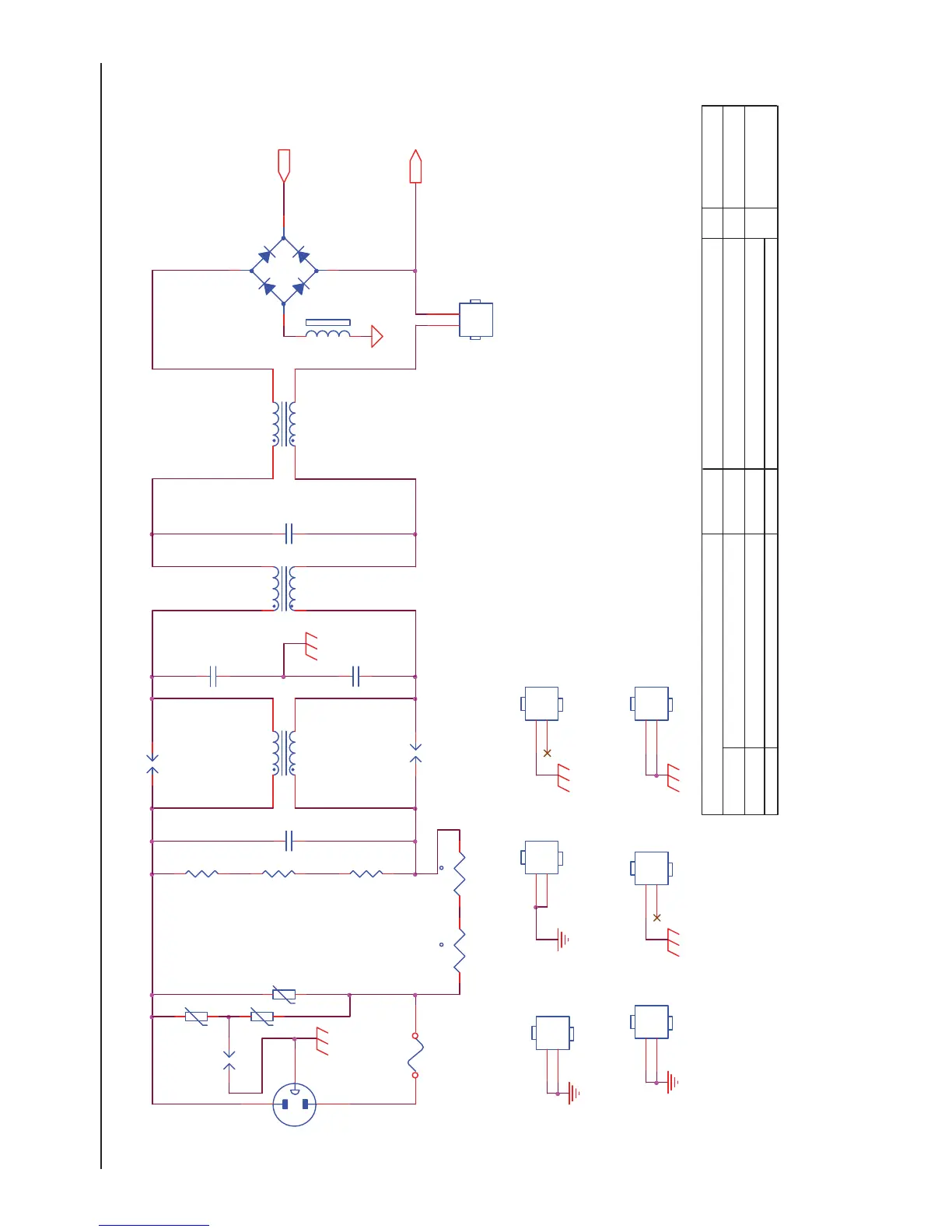

9.2 Power Board 715G3351 1
FB901 BEAD
12
C901
0.47uF
CN902 NC
1
2
L
N
HS1
HEAT SINK (BD901)
1 2
HS3
HEAT SINK (IC901)
1 2
t
NR901
1 2
HS2
HEAT SINK (Q901,D901)
1 2
C904
0.47uF
RV902 NC
L901 20.0MH
1 4
2 3
t
NR902
1 2
CN901
1 2
3
HS4
HEAT SINK (D910)
1 2
SG901 NC
HS5
HEAT SINK (Q901)
1 2
1.0
A
26Monday, February 16, 2009
<
⿄⠍
>
02.ACside
715G3351-H
OEM MODEL Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
R903
300K OHM 1/4W
R902
300K OHM 1/4W
SG902 NC
BO
L903 20.0MH
1 4
2 3
R+
R901
300K OHM 1/4W
RV903 NC
-
+
BD901 D10XB60
2
1
3
4
SG903 NC
RV901 Varistor
F901 FUSE
C902 680pF C903 680pF
L902 2.0MH
1
2
4
3
HS6
HEAT SINK (D904,D907)
1 2
