AOC LC32K0D3D

43

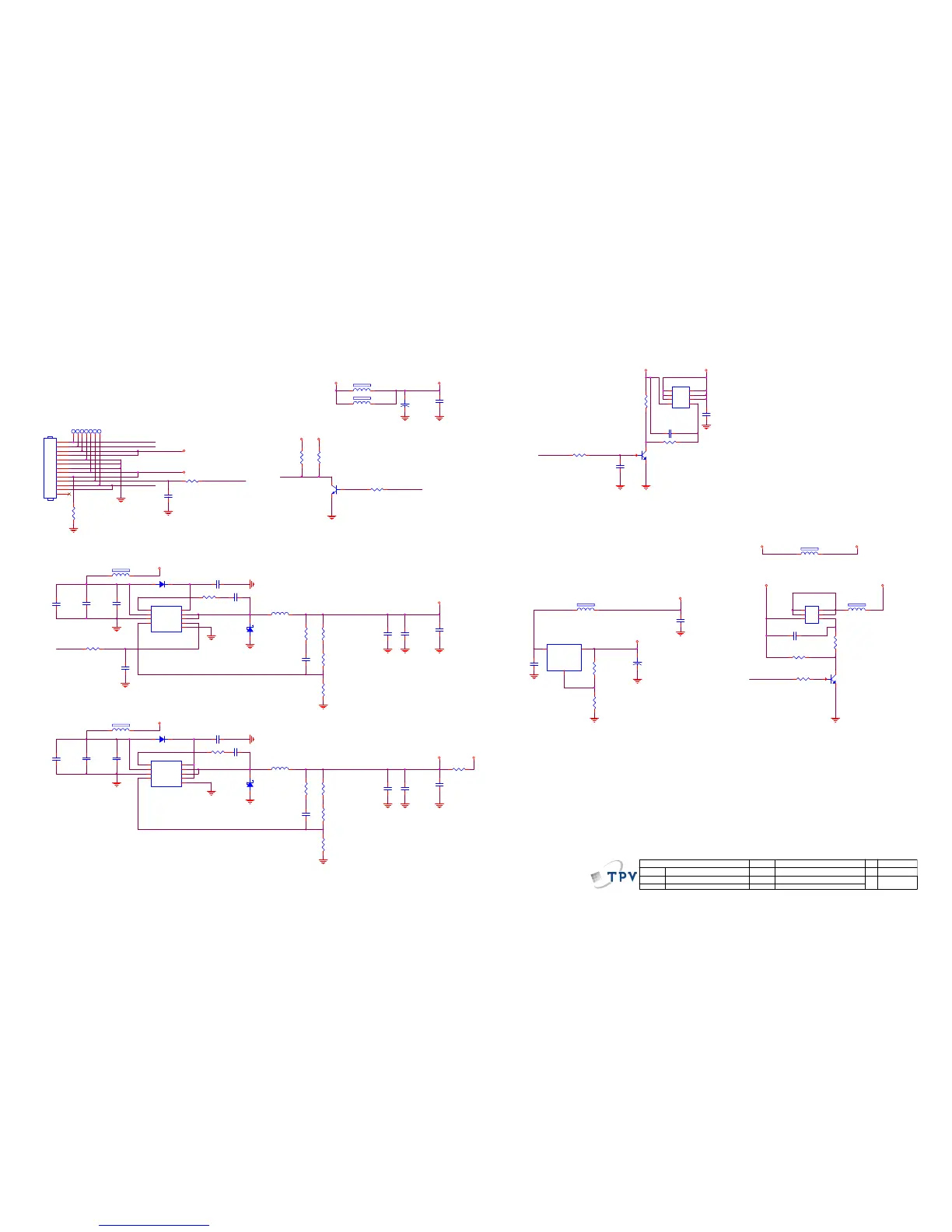

9. Schematic Diagram
9.1 Main Board
715G3805M1A000005B
C713
22uF 10V
AV33
C714
22uF 10V
Vout=0.8x (1+31.5K/10K) = 3.32V for MP2212
R719
1.5K +-1% 1/10W
R722
10K 1/10W 1%
C722
560pF 50V
L702
4.7uH
FB706
220R/2000mA
1 2
U702
MP2212DN
FB
1
GND
2
IN
3
BS
4
VCC
5
SW
6
SW
7
EN/SYNC
8
Thermal Pad
9
R723
30K 1/10W 1%
C716
100N 50V
C718
100N 50V
DV33
C724
22uF 10V
+5V_SW
R725
0R05 1/10W
C726
22uF 10V
D704 BAS316
R726
0R05 1/10W
C727 1UF16V
C711
100N 50V
SMD/0402
D702
SS3P4
1 2
C728
22uF 10V
R727
0R05 4A 1/4W
OPWRSB
Vout=0.8x (1+4K/10K) = 1.12V for MP2212
SMD/0402
SMD/0402
C729
10uF 16V
C733
1UF16V
R731
56R 1/10W 1%
U703
G1117T43Uf
VIN
3
VOUT
2
GND/ADJ
1
R717
120R 1% 1/10W
FB707
220R/2000mA
1 2
DV18_DDR
DV33
C730
100N 16V
FB703 NC/220R/2000mA
1 2
R714
4.7K1/16W
+ C734
100UF 25V
R711
22KOHM 1/10W
R712
1K1/16W
Vout=1.25x (1+56/120)= 1.833V
TP704
R707
10K1/16W
R708
33K 1/10W
C708
100N 16V
FB704
220R/2000mA
12
+ C702
470UF 10V
R718
1K 1/10W 1%
R721
10K 1/10W 1%
CN701
CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
R705 2K7 1/16W 5%
R704 100OHM1/16W
TP706
C720
560pF 50V
R703
10KOHM +-5% 1/8W
TP703
Q701
BC847C
3
2
1
FB705
220R/2000mA
1 2
TP705 TP702
U701
MP2212DN
FB
1
GND
2
IN
3
BS
4
VCC
5
SW
6
SW
7
EN/SYNC
8
Thermal Pad
9
C715
100N 50V
L701
4.7uH
Q702
BC847C
3
2
1
R713
NC/1K1/16W
Q703
AO6415
D
1
D
2
G
3
S
4
D
5
D
6
TP701
R701
22KOHM 1/10W
C705 1UF16V
Q705
BC847C
C709
1UF16V
TP707
FB701 120R/3000mA
1 2
FB702 120R/3000mA
1 2
R720
3K 1/10W 1%
C717
100N 50V
R710 1K1/16W
C719
22uF 10V
C712
10U 10V
Q704
AON4421
D
1
D
2
D
3
G
4
S
5
D
6
D
7
D
8
R702 33K 1/10W
C706 1UF16V
+5V_SW+5V_STB
+12V/5V
+24V
+5V_STB +5V1_TUN
+5V_STBSTB_PWR5V
DV11
+5V_SW DV33
+5V_STB
+5V_SW +5V1_TUN
R716
0R05 1/10W
STAND_BY
SMD/0402
C723
22uF 10V
BRIGHT_ADJ
STANDBY
R715
0R05 1/10W
D703 BAS316
EC080-35 も础
STB_PWR5V
C725 1UF16V
SMD/0402
OEM MODEL
Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 E32AA2NBWLXPNS
DTV SHARP LC-32LE320E MAIN BOARD Custom
416Wednesday , August 18, 2010
715G3805-1
04. POWER-1
G3805-1-32LE320E-100308
The item of this page start from "701"
C701
NC/22U 10V
INVERTER_ON_OFF
SMD/0402
STANDBY
STANDBY
C707
100N 50V
SMD/0402
DV11
+5V_STB TO +5V_SW BY DV11
SMD/0402
DC POWER INPUT
C721
22uF 10V
EC080-35 も础
D701
NC/SS3P4
1 2
SMD/0402
