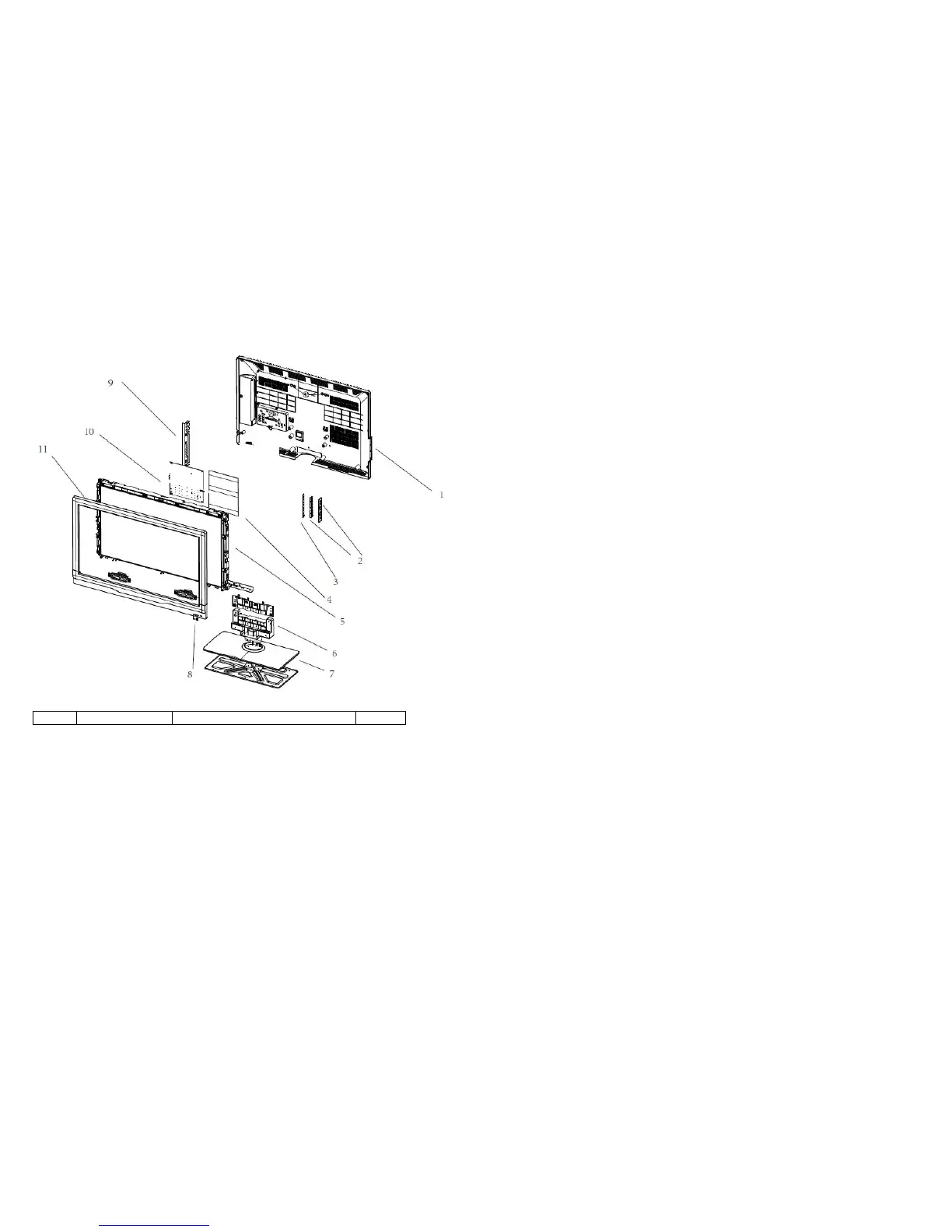

10. Exploded View
For 32”
ITEM PART NAME PART NO QUANTITY
1 705TZA34099 rear cover assy 1
2 A33T0788ADTB1L0100 Key cover 1
3 KEPFAPA4 KEY PCB ASSY 1
4 CBPFA2UBPA MAIN PCB ASSY(LG TUNER) 1
5 750TVU315W4612N000 PANEL T315HW04 V600 SZ AUO 1
6 Q15T0704101 BASE BKT 1
7 Q34T7082ADT 1T0100 BASE 1
8 IRPFAPA7 IR PCB ASSY 1
9 A15T1197101 bkt-io_side-2K10-GMBH-MTK5363H 1
10 ADTVA2496PA1 POWER PCB ASSY 1
11 705TZA34098 bezel assy 1
To Next Page
