AOC LE39D1440/20 - Service Adjustments and Firmware; White Balance Adjustment Procedure

39
7. Adjustment
7.1 White Balance Adjustment
1.
In Component signal mode, Signal generator will select Tim 314, Pattern 141(80% White);

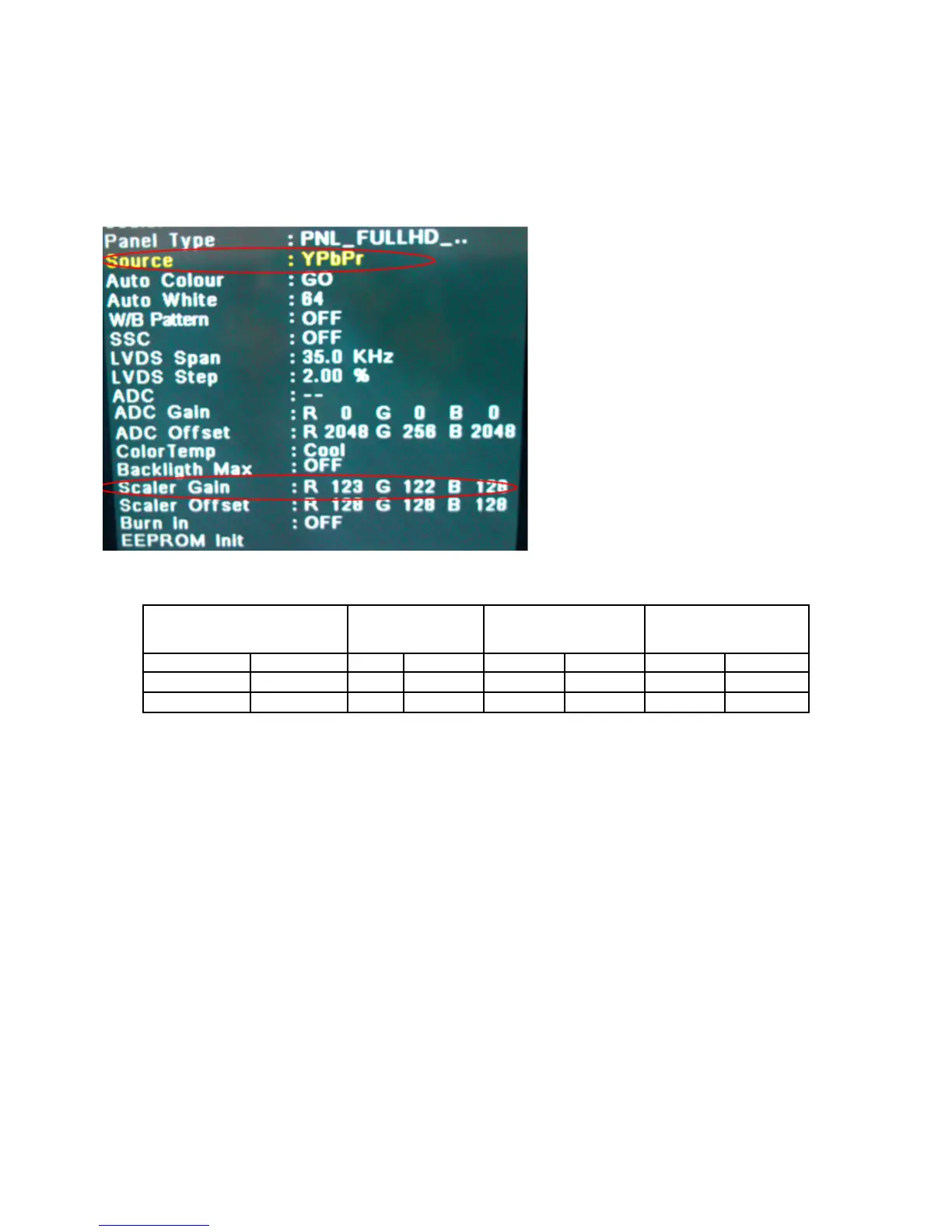

2. Press "Menu +1+9+9+9+ Back" into the factory mode.
3. Move the cursor to Current Source and choose component; Move the cursor to Color temp and choose color
temp(Cool, Normal, Warm), Move the cursor to the Gain and adjust RGB parameters to make the color
temperature value within the cool color temperature specifications(Specifications in the following table) (NOTE:
What we need is the Gain after the Color temp )
Take LE32D1440 for example：
色温规格：
色温
(x,y)
Cool
(0.271,0.274)
Normal
(0.285,0.293)
Warm
(0.313.329)
Item Level x y x y x y
调整规格
80IRE 0.003 0.003 0.003 0.003 0.003 0.003
产品规格
80IRE 0.030 0.030 0.030 0.030 0.030 0.030
