AOC LE39D5322/40 User Manual

40

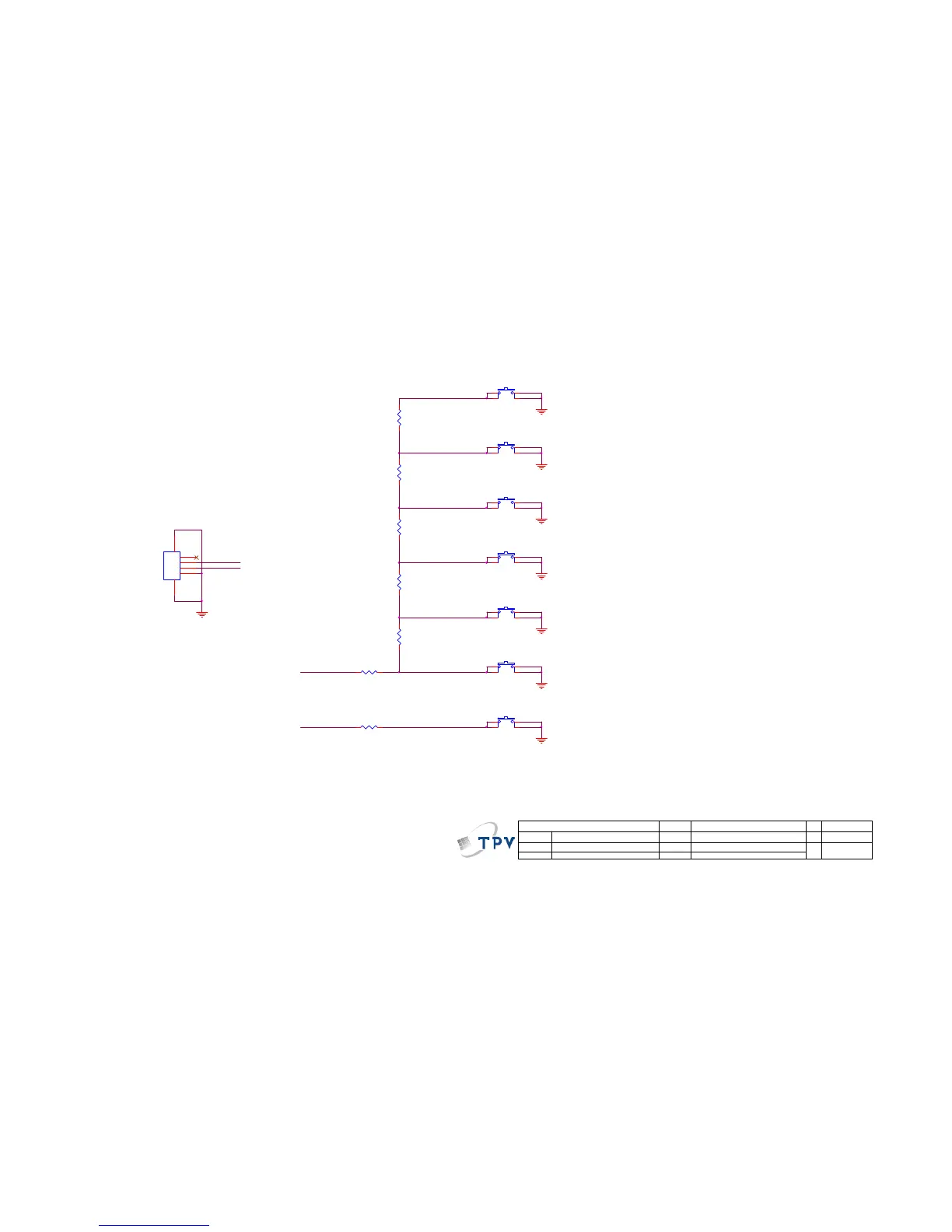

9.3 KEY Board
715G5298K01000004S
FUNC_KEY
PWR-SW
33G8032 4F HR
MENU
Source Select
Power ON/OFF
VOL+
VOL-
CH-
CH+
OEM MOD EL Size
Rev
Date
Sheet of
TPV MOD EL
PCB N AME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 A
Custom
22Friday , Sept ember 02, 2011
<
称爹 >
02-Keypad
2.04V~2.22V
1.24~1.45V
0.85V~1.02V
0.47V~0.63V
1.58V~1.79V
2.48V~2.72V
R05
750OHM + -1% 1/8W
R04
1K 1/8W 1%
R01
7K5 1/8W +/- 1%
R03
1K8 + /- 1% 1/8W
R06
750OHM +-1% 1/8W
R02
2K7 1/8W 1%
R07
750OHM +-1% 1/8W
SW01
TACT SW FWRD H1.5MM
CN01
CONN
1
2
3
4
65
FUNC_KEY
PWR -SW
77G 607 2 FD
SW02
TACT SW FWRD H1.5MM
SW03
TACT SW FWRD H1.5MM
SW04
TACT SW FWRD H1.5MM
SW05
TACT SW FWRD H1.5MM
SW06
TACT SW FWRD H1.5MM
SW07
TACT SW FWRD H1.5MM
