6 Installation and Quick Start
Installation in a UPS
How to install
the card for
different UPS
models
You can install the Management Card in a card slot in a
Smart-UPS, Matrix-UPS, Symmetra UPS, or AIS 5000 UPS.
For a Silcon UPS, install the Management Card in a Silcon
Triple Chassis Protocol Converter (AP9604S).
• In a Symmetra UPS that uses more than one APC
management product, you must install the APC
management products in the correct order for them to
operate properly.
• You do not need to turn power off for a Symmetra UPS
or Matrix-UPS. For a Matrix-UPS, however, you must
put the UPS in maintenance bypass mode before you
remove or install a Management Card.
Step 1: Turn
power off
(Smart-UPS) or
use bypass
(Matrix-UPS)

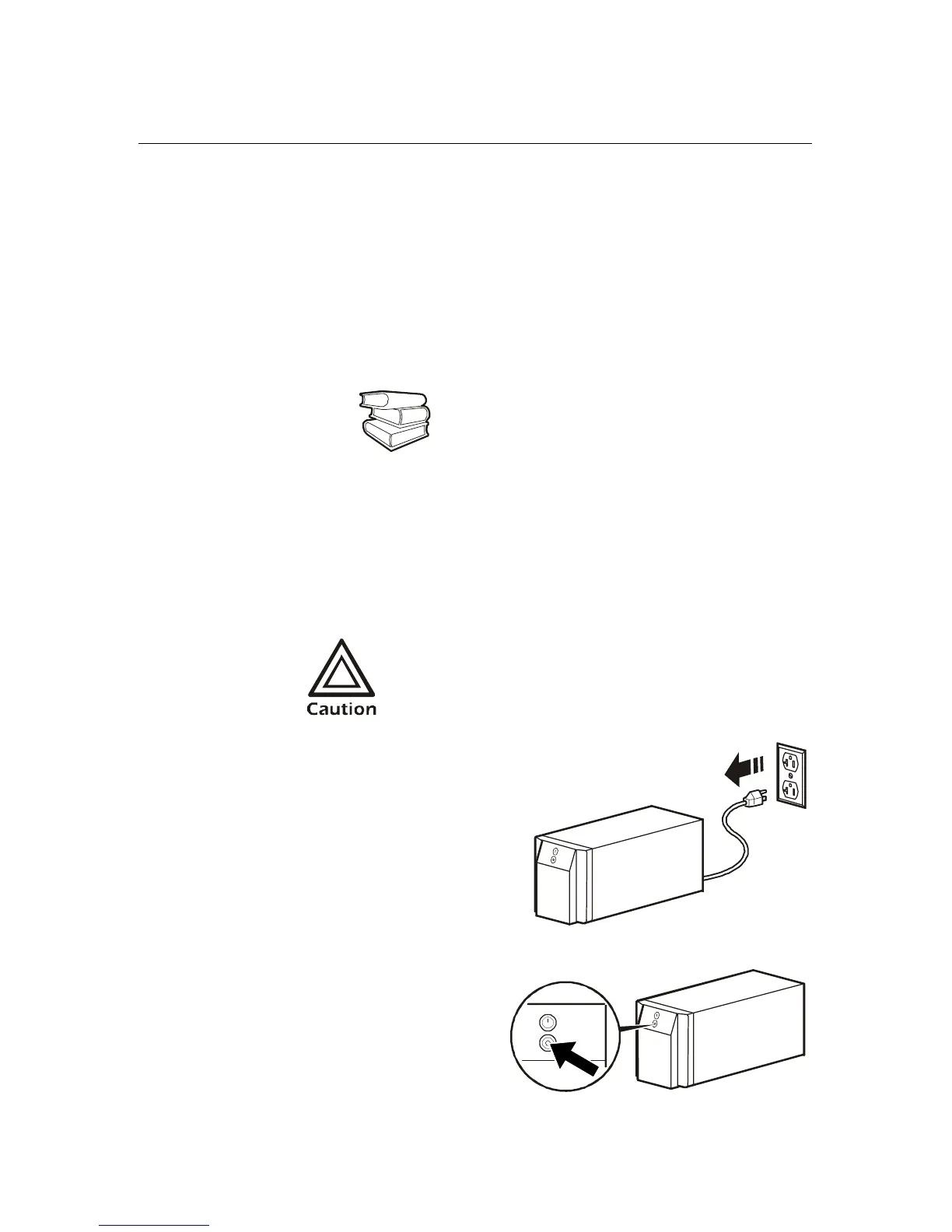

Smart-UPS
1. Turn off the
equipment that is
connected to the
UPS.
2. Disconnect the
UPS from its AC
(input power)
source.
3. Press the OFF
button on the
UPS for
approximately
five seconds to
turn off the DC
(battery) power.
See also
See Installation of Multiple Management
Cards, a copy of which came with the
Management Card.
Damage to the UPS or Management Card can
result if you do not remove all AC and DC power
from a Smart-UPS.
