APC Network Management Card - Firmware upgrade; Loss of serial cable

Page 26 - 34003641EN/AF
5. Maintenance
5.3 Firmware upgrade
The Network Management Card firmware can be upgraded easily through two different download procedures:
◗ Via ETHERNET with Mupgrade software tool (Windows only).
◗ Via serial link with Download software tool.
APC by Schneider Electric Web site is periodically upgraded with new firmware releases.
To get more information about those software tools, refer to the NMC user manual on www.apc.com.

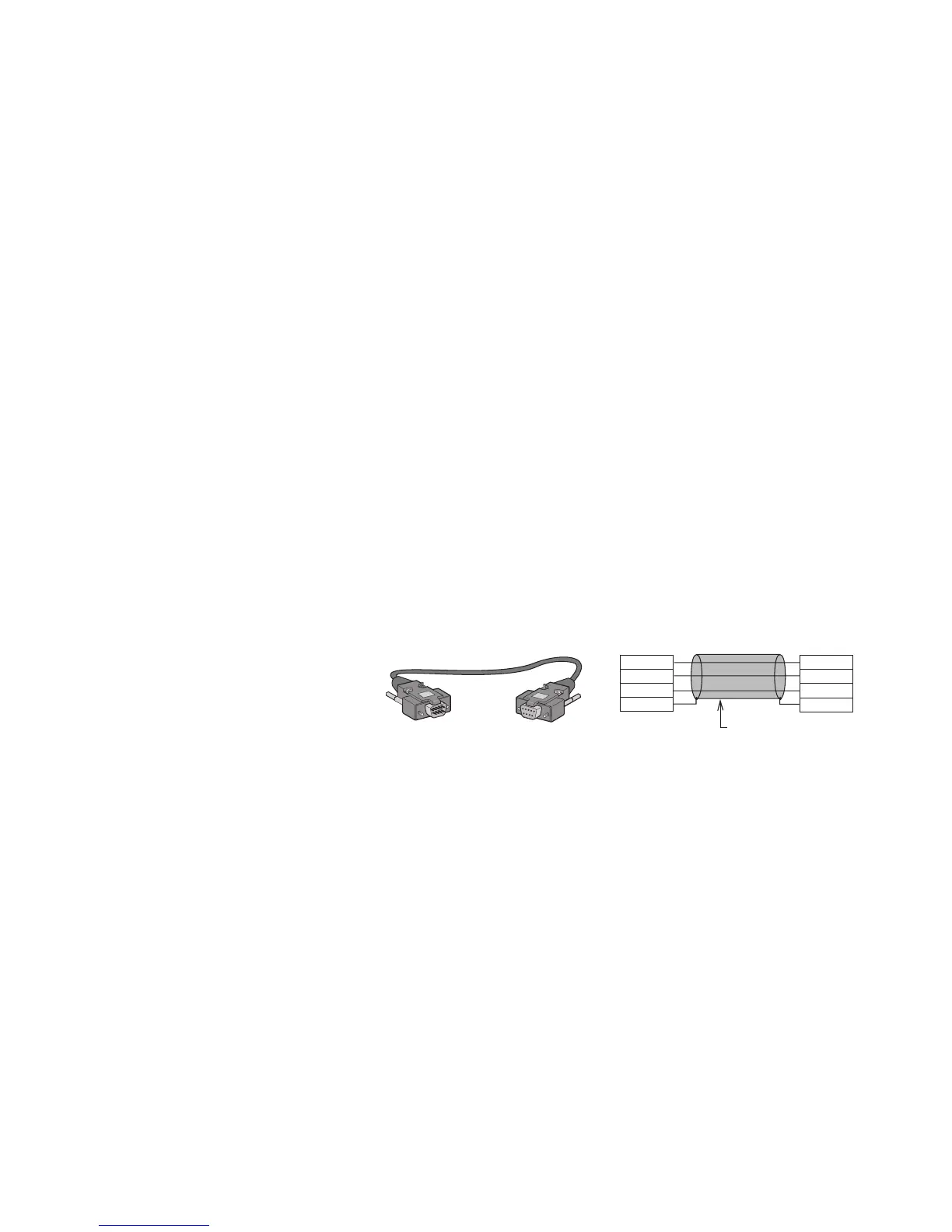

5.4 Loss of serial cable
male DB9
connector
DB9/DB9 cable (1,8 m max)
female DB9
connector
male DB9
connector
female DB9
connector
2
3
5
2
3
5
frame
frame
shielded
cable
