007-5510-002
137

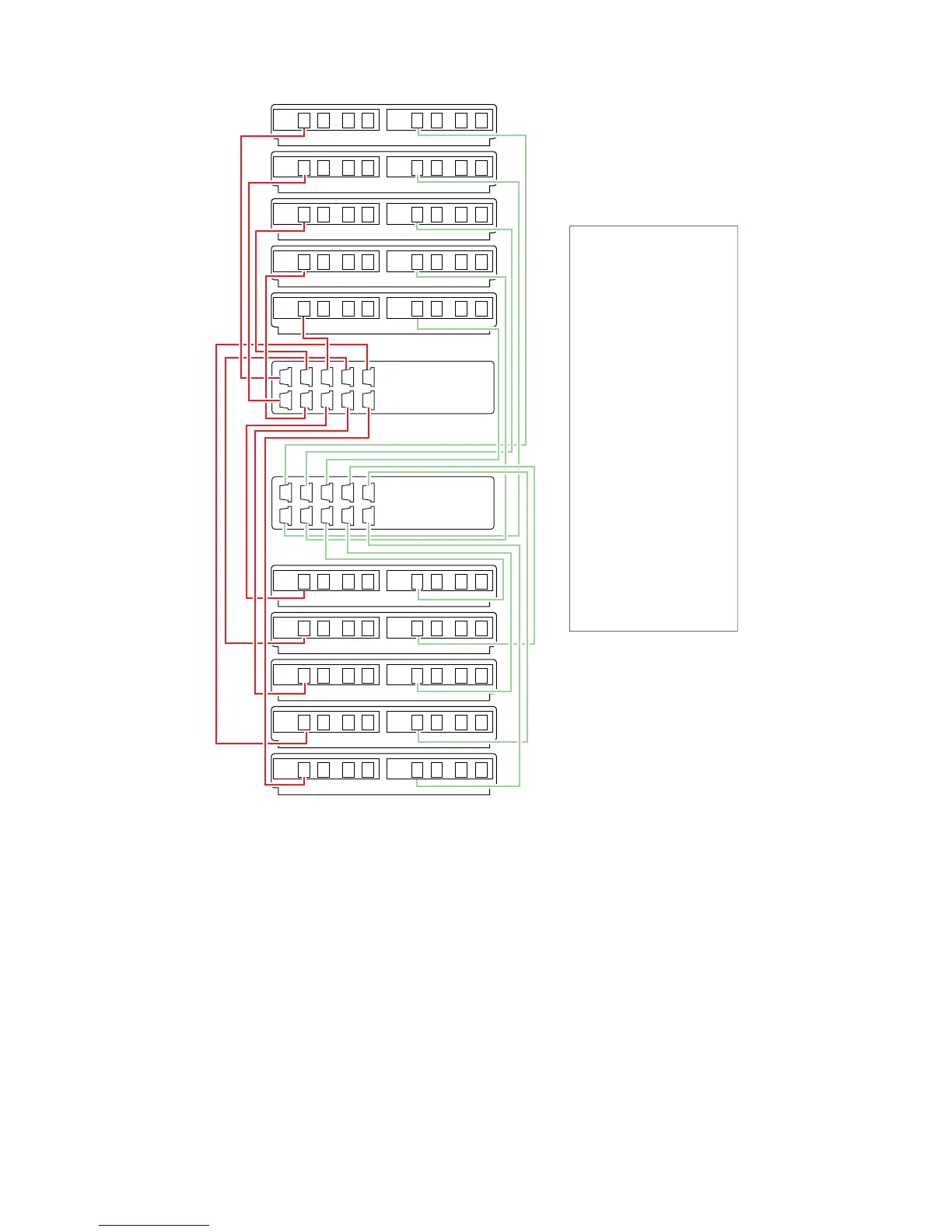

Figure C–3 Controller Cabling (2 Controllers and 10 Drive Enclosures)
A A
Channel A
B B
Channel B
C C
Channel C
D D
Channel D
E E
Channel E
F F
Channel F
G G
Channel G
H H
Channel H
P P
Channel P
S S
Channel S
A C E G P
B D F H S
Controller 2
A C E G P
B D F H S
Controller 1
Note: To use these cable
lengths, controllers and
jbods must be placed in
the order as shown.
Cable lengths:
Controller 1 Channel A = 3M
Controller 1 Channel B = 3M
Controller 1 Channel C = 3M
Controller 1 Channel D = 2M
Controller 1 Channel E = 2M
Controller 1 Channel F = 2M
Controller 1 Channel G = 2M
Controller 1 Channel H = 3M
Controller 1 Channel P = 3M
Controller 1 Channel S = 3M
Controller 2 Channel A = 3M
Controller 2 Channel B = 3M
Controller 2 Channel C = 3M
Controller 2 Channel D = 2M
Controller 2 Channel E = 2M
Controller 2 Channel F = 2M
Controller 2 Channel G = 2M
Controller 2 Channel H = 3M
Controller 2 Channel P = 3M
Controller 2 Channel S = 3M
To Next Page
