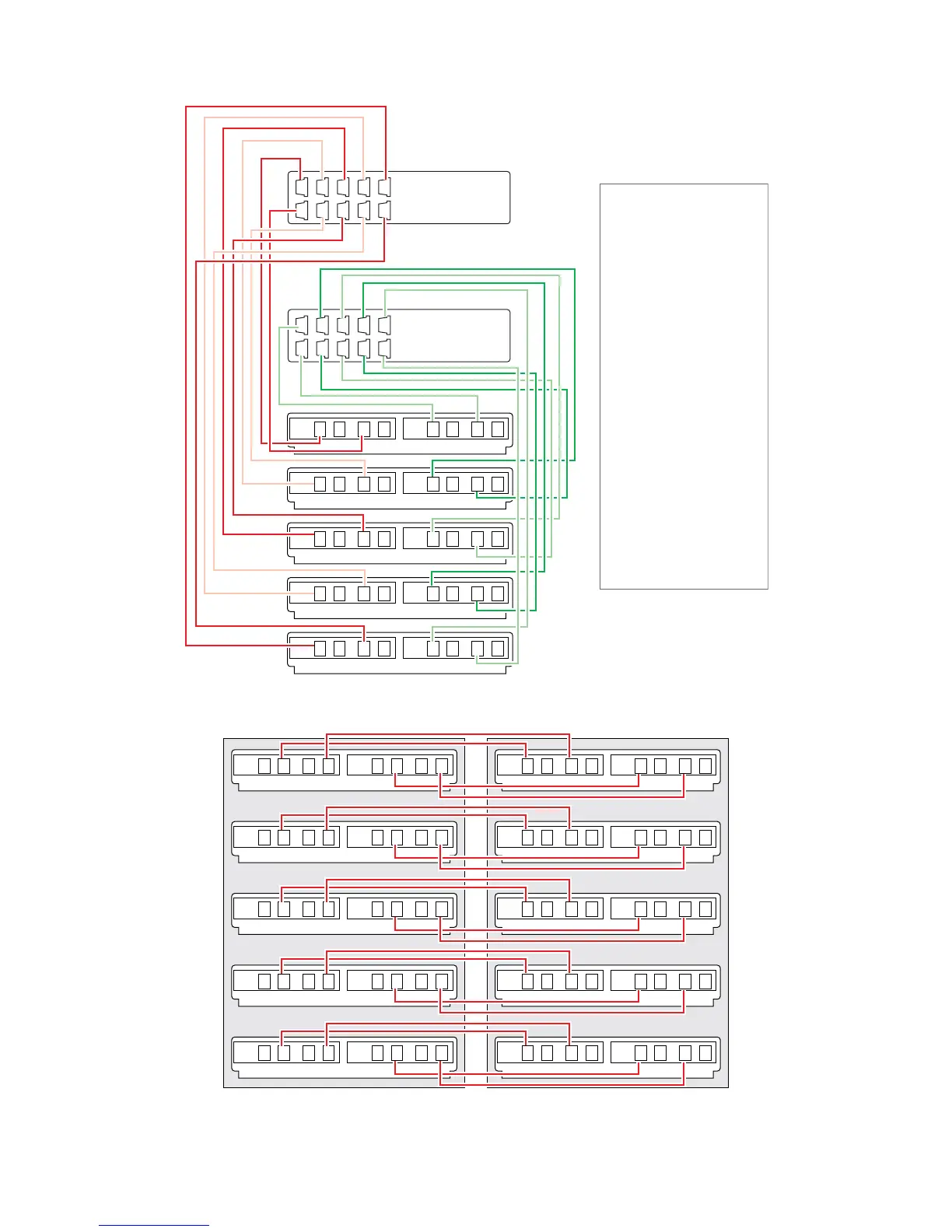

Figure C–1 Controller Cabling (2 Controllers and 5 Drive Enclosures)
Figure C–2 Drive Enclosure Cabling (2 Controllers and 5 Drive Enclosures)
A A
Channel A/B
C C
Channel C/D
E E
Channel E/F
G G
Channel G/H
P P
Channel P/S
A C E G P
B D F H S
Controller 2
A C E G P
B D F H S
Controller 1
BB
DD
FF
HH
SS
Note: To use these cable
lengths, controller 1 must be
on top and controller 2 must
be on the bottom.
Cable lengths:
Controller 1 Channel A = 2M
Controller 1 Channel B = 2M
Controller 1 Channel C = 2M
Controller 1 Channel D = 2M
Controller 1 Channel E = 3M
Controller 1 Channel F = 3M
Controller 1 Channel G = 3M
Controller 1 Channel H = 3M
Controller 1 Channel P = 3M
Controller 1 Channel S = 3M
Controller 2 Channel A = 2M
Controller 2 Channel B = 2M
Controller 2 Channel C = 2M
Controller 2 Channel D = 2M
Controller 2 Channel E = 3M
Controller 2 Channel F = 3M
Controller 2 Channel G = 3M
Controller 2 Channel H = 3M
Controller 2 Channel P = 3M
Controller 2 Channel S = 3M
