7032 SOUTH 196th - KENT, WA 98032 - (253) 872-0141 / FAX (253) 872-8710
OPERATION / MAINTENANCE MANUAL

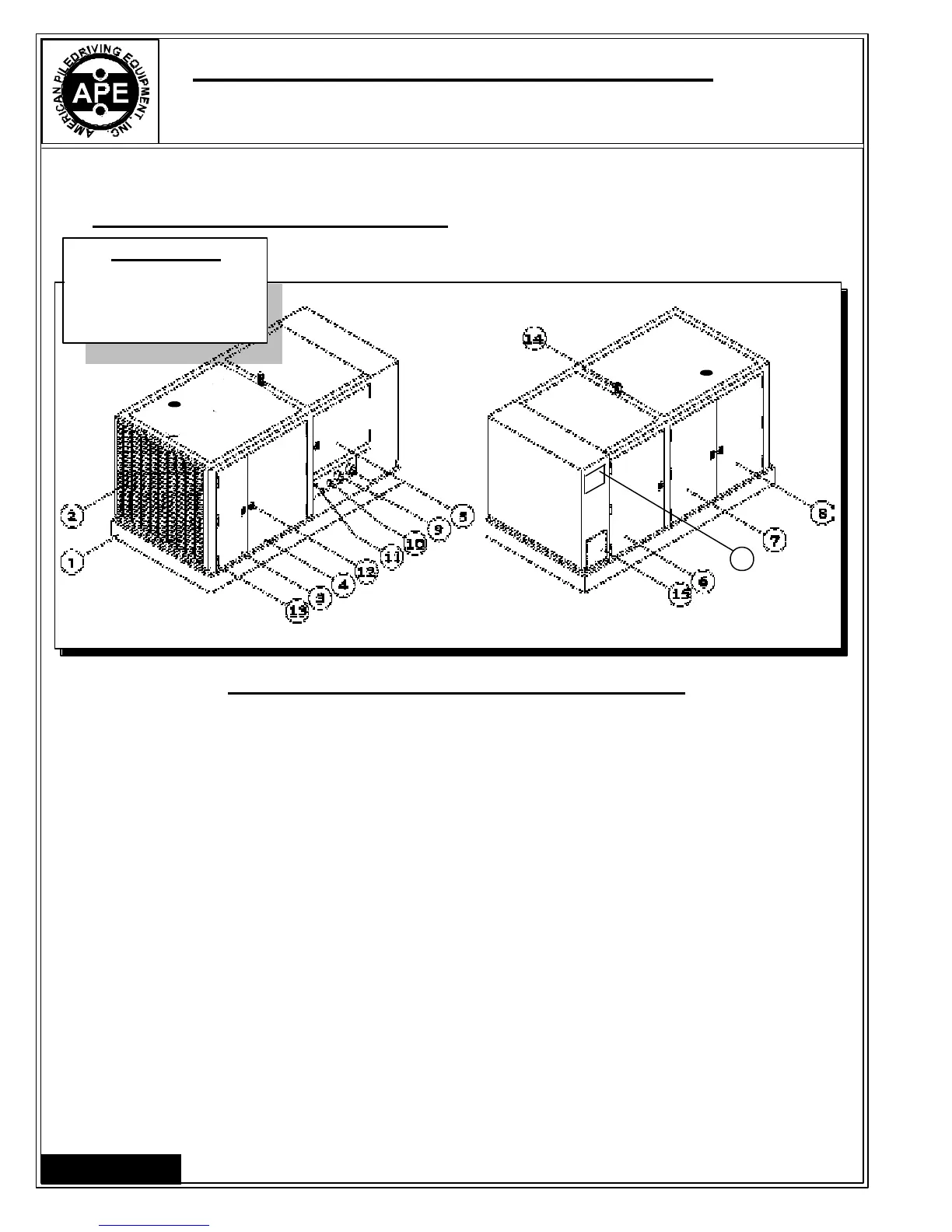

Figure 2-C. Model 350 Power Unit Skid Identification
II. COMPONENT DEFINITION (Continued...)
II-3. Model 350 Power Unit Skid Identification
WEIGHT: 10,000 lbs
LENGTH: 122 inches
WIDTH: 66 inches
HEIGHT: 78 inches
16
-MODEL 350
Page 2-4
1) Skid with fuel tank sub base and hydraulic tanks, lower and spare upper
2) Heat exchanger and engine radiator
3) Control panel door
4) Service door
5) Service door and access to hydraulic valves
6) Service door and access to engine
7) Service door
8) Service door
9) Hydraulic quick disconnects
10) Case drain line
11) Spotter quick disconnects
12) Door latch
13) Door hinge- lift up to remove door. Grease to assist using built in
grease zert.
