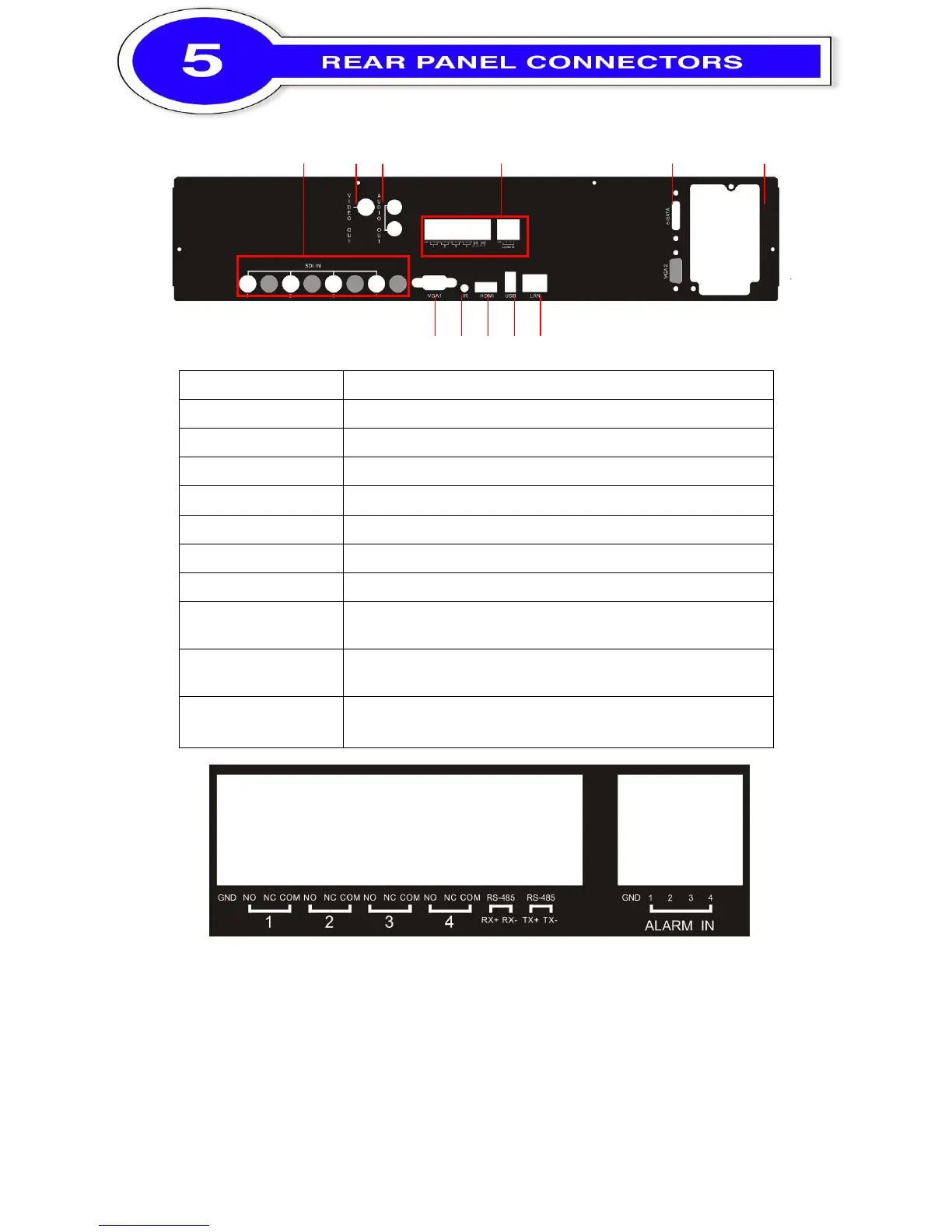

APEC SDR-400 - Rear Panel Connectors

8
○
1
○
2
○
3
○
9
⑩ ⑪
○
4
○
5
○
6
○
7
○
8
○
1
SDI IN
SDI input port for HD camera, 4 in total.
○
2
VIDEO OUT
BNC output port for second monitor
○
3
AUDIO OUT
RCA output port for audio sign, 2 in total.
○
4
VGA
VGA port.
○
5
IR
IR extension cable jack.
○
6
HDMI
HDMI port
○
7
USB
USB port
⑧LAN
Network port.
○
9
EXTERNAL I/O
EXTERNAL I/O port, left and right are two groups, see
the following table function
⑩eSATA
External SATA hard disks port for expanding recording space.
(depends on model)
⑪ AC 110/220V
Socket for an AC 110/220V input.
Caution: Switch to local voltage before use.
