This document provides instructions for the TH60SS Cooker Hood, covering its installation, operation, maintenance, and technical specifications.

Function Description

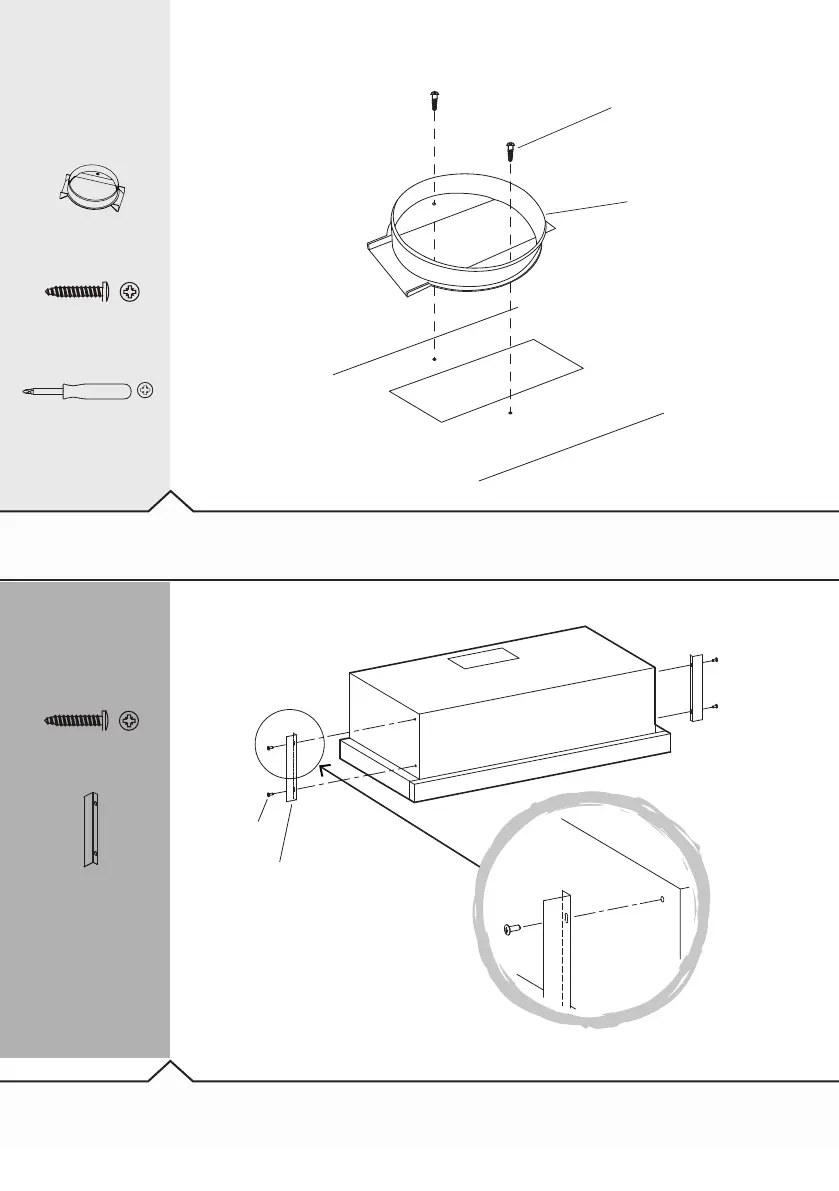

The TH60SS Cooker Hood is designed to extract air from the kitchen to remove odours and maintain an optimum level of air quality. It also provides illumination for the cooking area. The appliance can be installed in two ways: ducted option or recirculation option. In the ducted option, air is extracted and vented outside, while in the recirculation option, air is filtered and returned to the kitchen.

Important Technical Specifications

Model Identification: TH60SS
Supply Voltage: 220-240V~50Hz
Power Consumption - Fan: 100W
Power Consumption - Luminary: 2 x 28W Max
Power Consumption - Total: 156W
Protection Class: I
ILCOSD Code: HSG-28-230-E14-35
Annual Energy Consumption (AEChood): 78.5 kWh/a
Time Increase Factor (f): 1.5
Fluid Dynamic Efficiency (FDEhood): 12.9
Energy Efficiency Index (EEIhood): 93.6
Measured Air Flow Rate at Best Efficiency Point (QBEP): 212.4 m³/h
Measured Air Pressure at Best Efficiency Point (PBEP): 151 Pa
Maximum Air Flow (Qmax): 366.2 m³/h
Measured Electric Power Input at Best Efficiency Point (WBEP): 68.8 W
Nominal Power of the Lighting System (WL): 56 W
Average Illumination of the Lighting System on the Cooking Surface (Emiddle): 107 lux
Measured Power Consumption in Standby Mode (Ps): - (Not specified, likely 0W)
Measured Power Consumption Off Mode (Po): 0 W
Sound Power Level (LWA): Max. 63 / min. 54 dB
Lighting Efficiency (LEhood): 1.9 lux/W
Grease Filtering Efficiency (GFEhood): 64.3 %
Air Flow at Min. and Max. Speed in Normal Use: Max. 330.0 / min. 174.9 m³/h

Clearance Distances:

Gas Hobs: 750mm
Electric Hobs: 650mm

Ventilation Requirements:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10⁻⁵ bar).
The room must have adequate ventilation if an extractor hood is used simultaneously with appliances that run on gas or other fuels.
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Usage Features

The cooker hood is designed for domestic use only. Switching On/Off:

The appliance is switched on at the switched fused connection unit.
Lamp Switch: "O" for Lamp off, "I" for Lamp on.
Motor Switch: "O" for Motor off, "I" for Motor speed low, "II" for Motor speed high.
For best results, it is recommended to leave the cooker hood on for 15 minutes after cooking.

Safety Warnings:

All installation work must be carried out by a competent person or qualified electrician.
The appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.
Accessible parts may become hot during use; young children should be kept away.
Keep the appliance and its cord out of reach of children less than 8 years.
Means for disconnection must be incorporated in the fixed wiring in accordance with wiring rules (an all-pole disconnection switch with a contact separation of at least 3mm in all poles).
Regularly check the power plug and power cord for damage.
Do not allow electric cables to touch hot parts of the appliance.
Do not install the appliance outdoors in a damp place or in an area prone to water leaks.
Failure to install screws or fixing devices correctly may result in electrical hazards.
Do not use flammable sprays in close vicinity to the appliance.
A steam cleaner is not to be used.
The appliance is not intended to be operated by external timer or separated remote-control system.
Consult local regulations regarding fumes outlets.
Before connecting, switch off electricity and check voltage/frequency.
The hood may stop working during electrostatic discharge (e.g., lightning); switch off and reconnect after one minute.
Do not use the hood if it shows signs of damage or imperfection.
Flambé cooking must not be carried out underneath this appliance.
The appliance must be earthed.
Children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use the appliance if supervised and instructed. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Maintenance Features

General Maintenance:

Always switch off the electricity supply before carrying out maintenance work.
Cleaning is crucial to avoid electric shock and fire risks.

Bulb Replacement:

The bulb may be hot; allow 10 minutes for it to cool before replacement.
Turn to remove the bulb. (Specific instructions for removal are shown visually in the manual).

Filter Maintenance:

Aluminium Filters (Grease Filters):
- Clean thoroughly once a month or whenever the display pilot light lights up (if fitted) to avoid fires.
- Remove filters and soak in hot water and detergent for an hour.
- If using a dishwasher, position filters vertically to improve the cleaning process.
Active Charcoal Filters (for Recirculation Mode):
- Replace every 3 months.
- Model Number for Carbon Filter: 02825263 (UK & IE).
- Ordering Hotline: 0344 800 1128 (UK), 014475261 (IE).
Note: Increase filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

Troubleshooting: The manual provides a troubleshooting table for common issues:

Excessive vibration: Check if installed properly, fan blade damaged, or fan motor not fixed tightly.
Light on, but motor does not work: Fan blade jammed or motor damaged.
Both light and motor do not work: Light bulb blown or power connection loose.
Suction performance reduced: Speed too low, distance to hob too great, aluminium grease filter dirty, top vent obstructed, or optional vent kit twisted.
Works normally but cooking smells linger: Charcoal filter not fitted in recirculation mode or charcoal filter is full of grease.

Environmental Protection:

Dispose of packing material carefully.
Waste electrical products should not be disposed of with household waste. Recycle where facilities exist.
The product must be handed over to an electric and electronic equipment collection point for recycling.
Do not dismantle the appliance in a way not shown in the user manual.

Reducing Environmental Impact:

Install the cooker hood in a proper place with efficient ventilation.
Clean the cooker hood regularly to avoid blocking the airway.
Switch off the cooker hood light after cooking.
Switch off the cooker hood after cooking.
