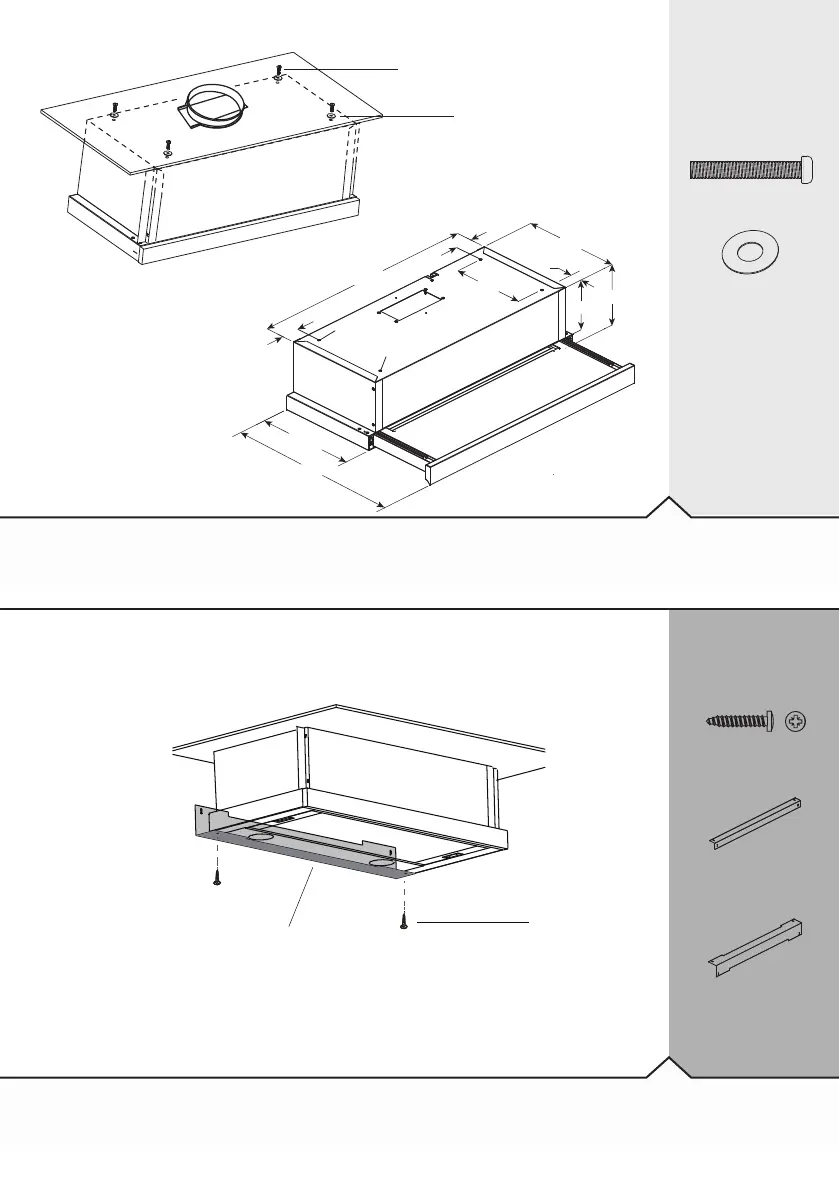

Cut a hole in the cupboard base to suit the position of the exhaust vent in the hood
and size to suit the vent kit. Fix the cooker hood underside of the cupboard using
the 2 hole position (A) and 2 hole position (B).
[07]
[09] or [10]
Fix the bottom decorative plate to the cooker hood to adjust the space between wall
and cooker hood if necessary.
[05] x4
[06] x4
A
B
280mm
460mm
553mm
50mm
50mm
210mm
280mm
33mm
140mm
180mm
[05]
[06]
[07] x 2
[09] x 1
[10] x 1
