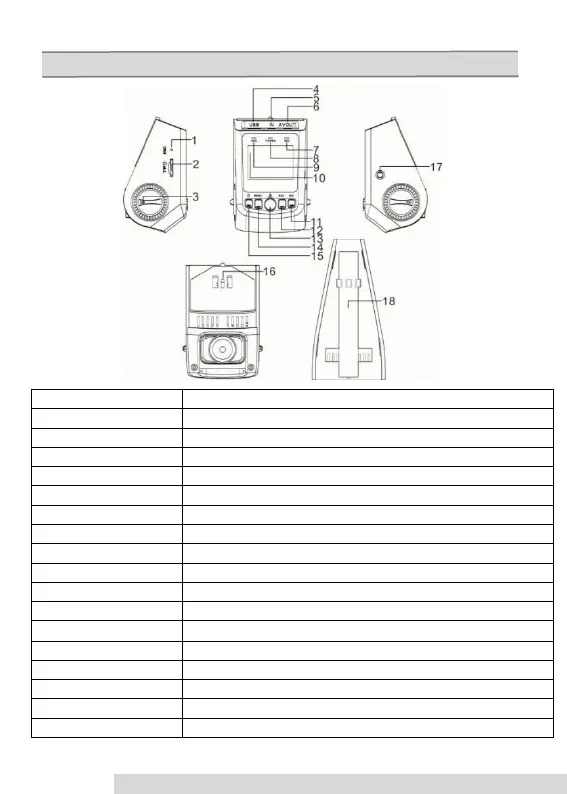

Microphone (records audo during video recording).
micro SD (TF) card slot.
lens angle adjustment knob (max. approx. 60')
USB power and data socket
optional GPS module socket
external monitor connection socket
camera mode indicator light
power indicator light.
recording indicator light
1.5'' LCD display.
SEE NEXT PAGE
SEE NEXT PAGE
confirm operation button
operations related to the main menu button
SEE NEXT PAGE
mounting stay attachment
camera reset hole
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
·
·
·
·
·
·
·
·
cable cover mounting (attach to main camera body)
Functions & features
MIC
TF
Twist adjust knob
mini USB
GPS socket
A/V connector
Mode light
Power light
Record light
Screen
MIC / DOWN
RECORD / UP
OK
MENU
Power button
Stay mounting part
Reset hole
Cable cover mount
