Aperto X-Box 550 - Max. Permissible Door Dimensions; Technical Data (Aperto X-Box)

General Information
4
Max. permissible door dimensions *
APERTO X-Box:
Max. width:
550 800
– One piece door: 3500 5500 mm
– Sectional door: 3500 5500 mm
– Hinged double door **: – 2800 mm
– Side-sectional or roller door:
Track 2600 .................................................... 2350 2350 mm
Track 3000 .................................................... 2750 2750 mm
Track 3400 .................................................... 3150 3150 mm
– Up-and-over door | Canopy door:
– 4500 mm
Approx. height
– One piece door:
Track 2600 .................................................... 2600 2600 mm
Track 3000 .................................................... 3000 3000 mm
Track 3400 .................................................... 3400 3400 mm
– Sectional door:
Track 2600 .................................................... 2350 2350 mm
Track 3000 .................................................... 2750 2750 mm
Track 3400 .................................................... 3150 3150 mm
– Hinged double door **:
mm
Track 2600 .................................................... – 3000 mm
– Side-sectional or roller door:
Track 2600 .................................................... 2300 3000 mm
– Up-and-over door | Canopy door:
Track 2600 .................................................... – 1900 mm
Track 3000 .................................................... – 2300 mm
Track 3400 .................................................... – 2700 mm
Duty cycle: ........................................................ 15 15 %
* Door in accordance with EN 12604, EN 12605
** With standard hinged double door fi tting, part no. 1501.
For taller doors, correspondingly longer tracks or track extensions
must be installed. Please ask you specialist dealer.
Technical data (Aperto X-Box)
General
Rated voltage: 24 V DC
Lighting: Integrated LED lighting
Operational temperature range: –10 °C to +45 °C
IP-code: IP 20
Working environmental emissions value: < 75 dBA – operator only
Operator: 550 800
Max. pulling and pushing force: 550 800 N
Rated pulling force: 150 240 N
Rated current consumption (approx.): 4.0 6.4 A
Rated power consumption: 110 160 W
Max. speed: 150 130 mm/s
Nominal power, standby (approx.): 0.1 0.1 W
Weight with track 2600: 16.0 16.0 kg
X-Box (battery and control unit):
Discharge voltage: 21 V
Charging end voltage
of the lead acid battery: approx. 28.8 V
Capacity: 14.4 Ah
Open-circuit voltage: 25.6–26.2 V
Self-discharge/Day: < 0.1 % of nominal capacity
Lifetime of the battery: At least 3–5 years
(Eurobat Standard)
Weigh of 3-piece X-Box: 16.2 kg
Weight of separate battery unit: 5.7 kg

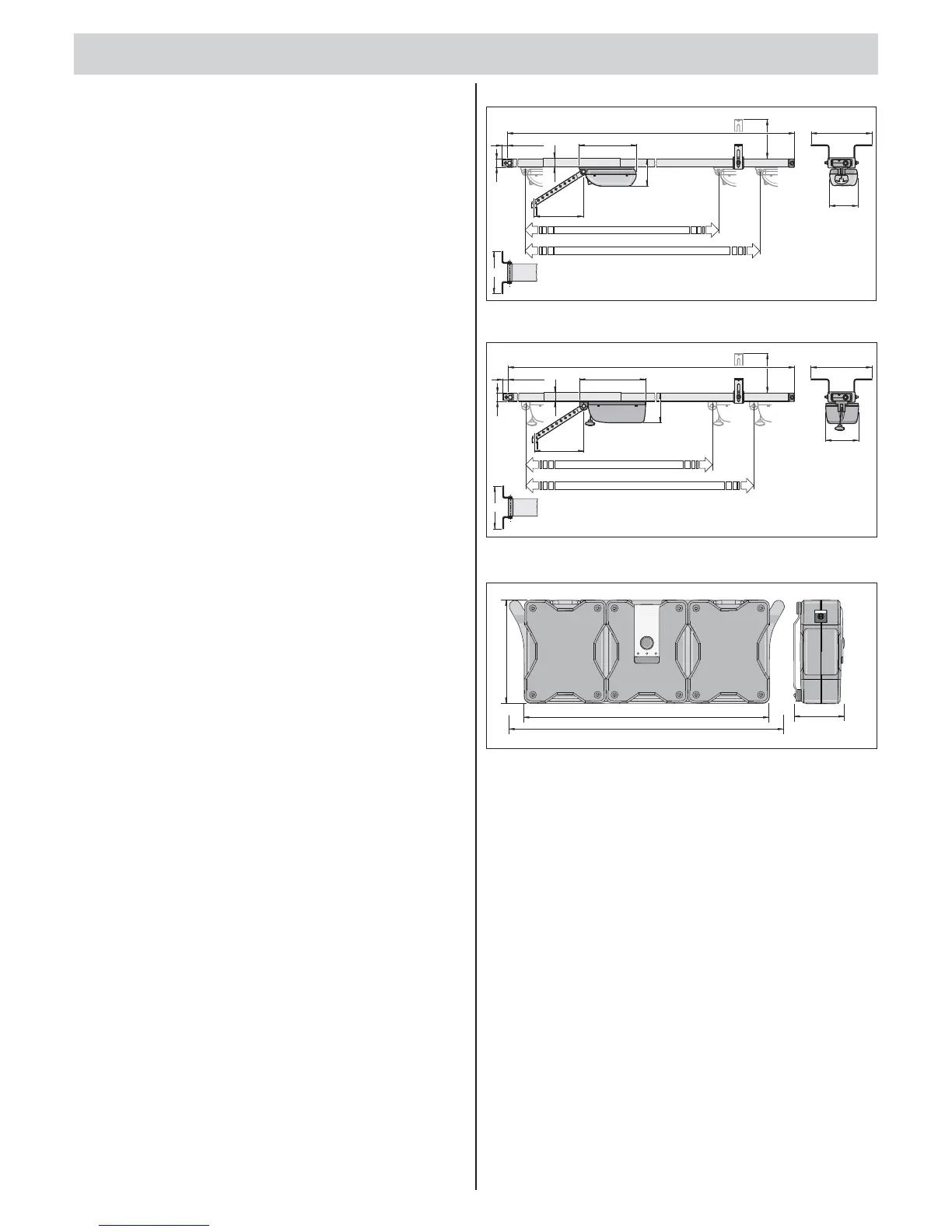

APERTO operator 550
252
120
2600
3000 / 3400
375
30
max.22,5
max.
214
3240 /3640 /4040
35
176
245
115
APERTO operator 800
2600
3000 / 3400
375
30
max.22,5
max.
214
3240 /3640 /4040
35
176
125
270
137
252
X-Box
260 mm
110 mm
635 mm
745 mm
Package (L x W x H):
– Operator 790 x 160 x 160 mm
– Track 2600 1665 x 160 x 50 mm
– X-Box battery and control unit 765 x 335 x 180 mm
