General Installation
7

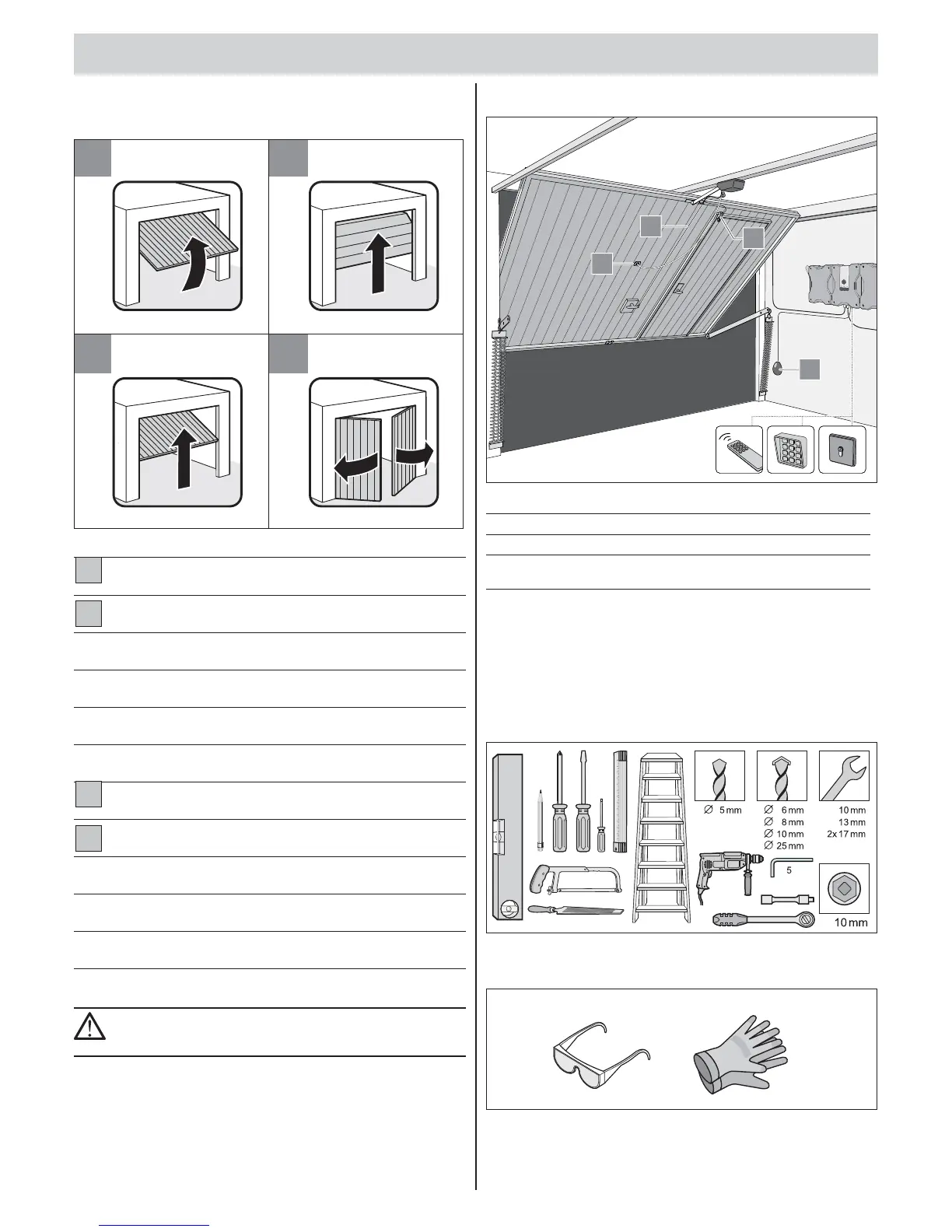

Door types and accessories
Accessories are not included in the scope of delivery.
D
A B
C
Door type Accessories
Swinging door |
One piece door
• No accessories required
Sectional door
with single rail
• Sectional door fi tting
with boomerang
• Release lock (19) *
Sectional door
with double rail
• Sectional door bracket
without boomerang
• Release lock (19) *
Rolling shutter door • Release lock (19) *
Up-and-over door |
Canopy door
• Curved arm
Hinged double door • Caution! Contact specialist dealer!
• Special emergency release required
• Wing door fi tting | Hinged double
door fi tting
* Release lock for emergency release (19) is absolutely mandatory
if there is not a separate access point.
Slip door | Pass door | Built-in pass door
Caution!
If a slip door in set into the door, a slip door safety device (20)
must be installed. (Not included in the scope of delivery.)
Overview of accessories (optional)
21
19
18
20
Item Name
18. Bowden cable for extending the emergency release
19. Release lock for emergency release
20. Slip door safety device | Pass door fuse |
Slip door safeguard
21. Photo eye
• Telecody for wireless activation of the door with a number combination
• Code keypad for activation of the door with a number combination
• Key switch for activation of the door with a key
• Locking set
Tools required
Personal protective equipment
 Safety glasses (for drilling)
 Protective gloves (e.g. when handling cut-off pieces of perforated
strip steel)
A
B
C
D
