Aphex Xciter 1403 - Hook-Up Guide; Direct By-Pass Operation; Input Connection and Settings

Models 1401 through 1403
Page 4
a. Direct By-Pass
When the unit is switched “off” (no effect) your instru-
ment is routed directly to the output jack and does
not pass through any electronics.
b. Input
When plugging in, make sure you set the input
active/passive switch to match your instrument’s
pickup. This assures the optimum level and imped-
ance match. The power is automatically switched

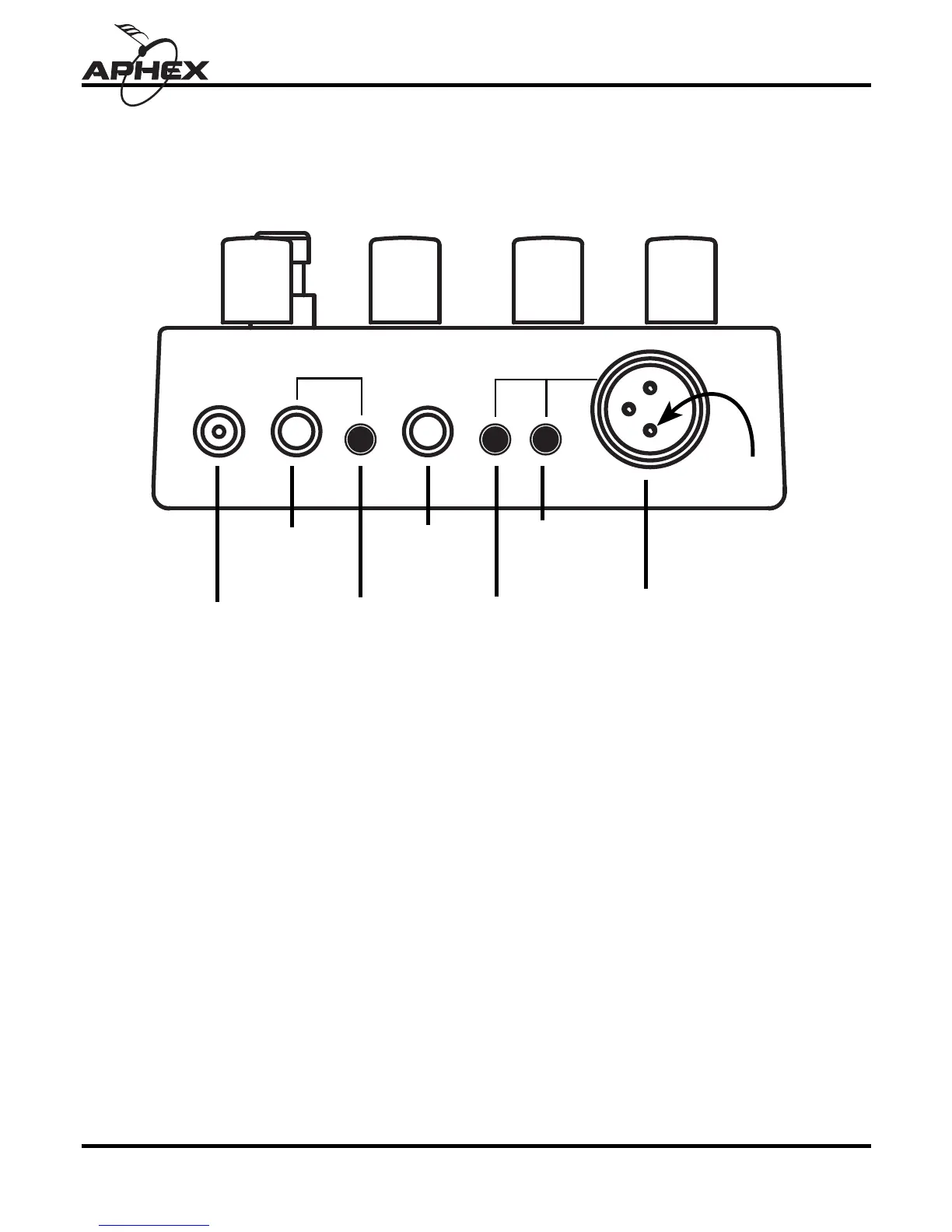

Power
Instrument
Input
Active (In)
Passive (Out)
Instrument
Output
Ground
Grounded(In)
Lifted (Out)
D.I. Balanced
150Ω Output
Mic Level
Wet(In)
Dry(Out)
Hot
1
3
2
1. Hook-Up
