FORCED AIR FURNACE
The heavy-duty
furnace in the 2600 series center bath
model is located under
the clothes closet on the curbside of the coach,
in
the 2600
and
3000 series
rear
bath
models it is located under the bed
on the roadside of the coach and in the
3300
island
bed and rear bath series and the 3000 series
center bath it is located
in
the galley cabinet. It has a sealed combustion
chamber with a dual blower,
one of which circulates warm air while the
other furnishes outside air for com-
bustion. The combustion blower also forces
the ue gases through a vent to
the outside for maximum safety and
heating efficiency. The heat from the
furnace is ducted throughout the
coach including the bathroom.
NOTE: 3 O00 &
3300
Series
models
have an
additionalfurnace located behind
passenger
seat.
It is totally
independent of main furnace.
\
/
1
2

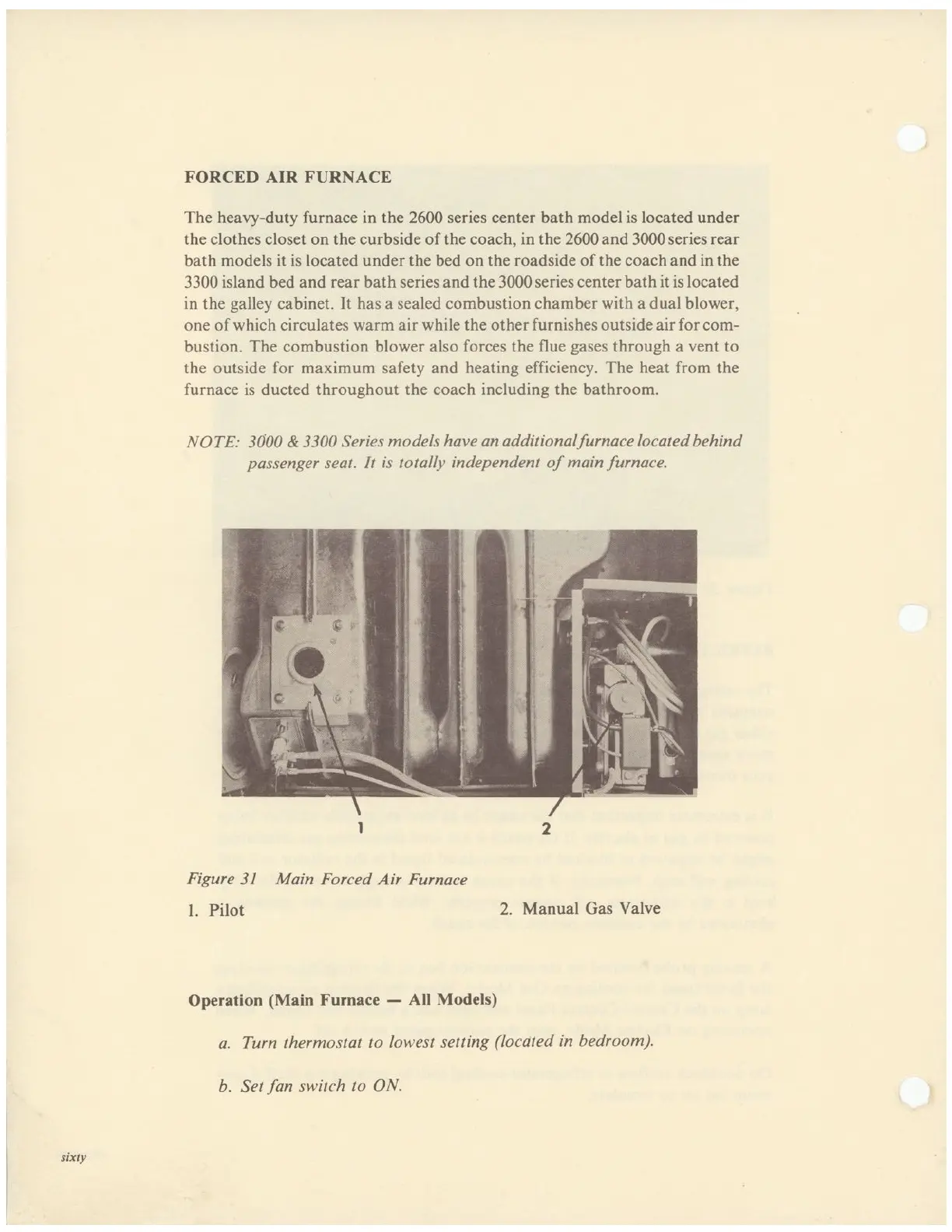

Figure
3
I
Main Forced
Air Furnace
1.
Pilot
2. Manual
Gas
Valve
Operation
(Main Furnace
— All
Models)
a. Turn
thermostat
to lowest
setting
(located
in
bedroom).
b. Set
fan
switch to
ON.
To Next Page
