4.3 INSTALLATION NOTES:
( 1 ) Ensure the original wired control of equipment
works.
( 2 ) Shut down equipment main power source before
installation.
( 3 ) Mount in a firmed site where the receiver
can be seen easily by operator.
( 4 ) Keep away the mounted site from motors
relays, cables, high voltage wiring and devices,
or the protrusion of building where crane
moves.
Select a firmed site without metal shield.
( 5 ) Ensure the wiring layout correctly and safely
( 6 ) Test each function to be sure each output has
the same function as wired control
( 7 ) Put the wired pendant if has in safe position

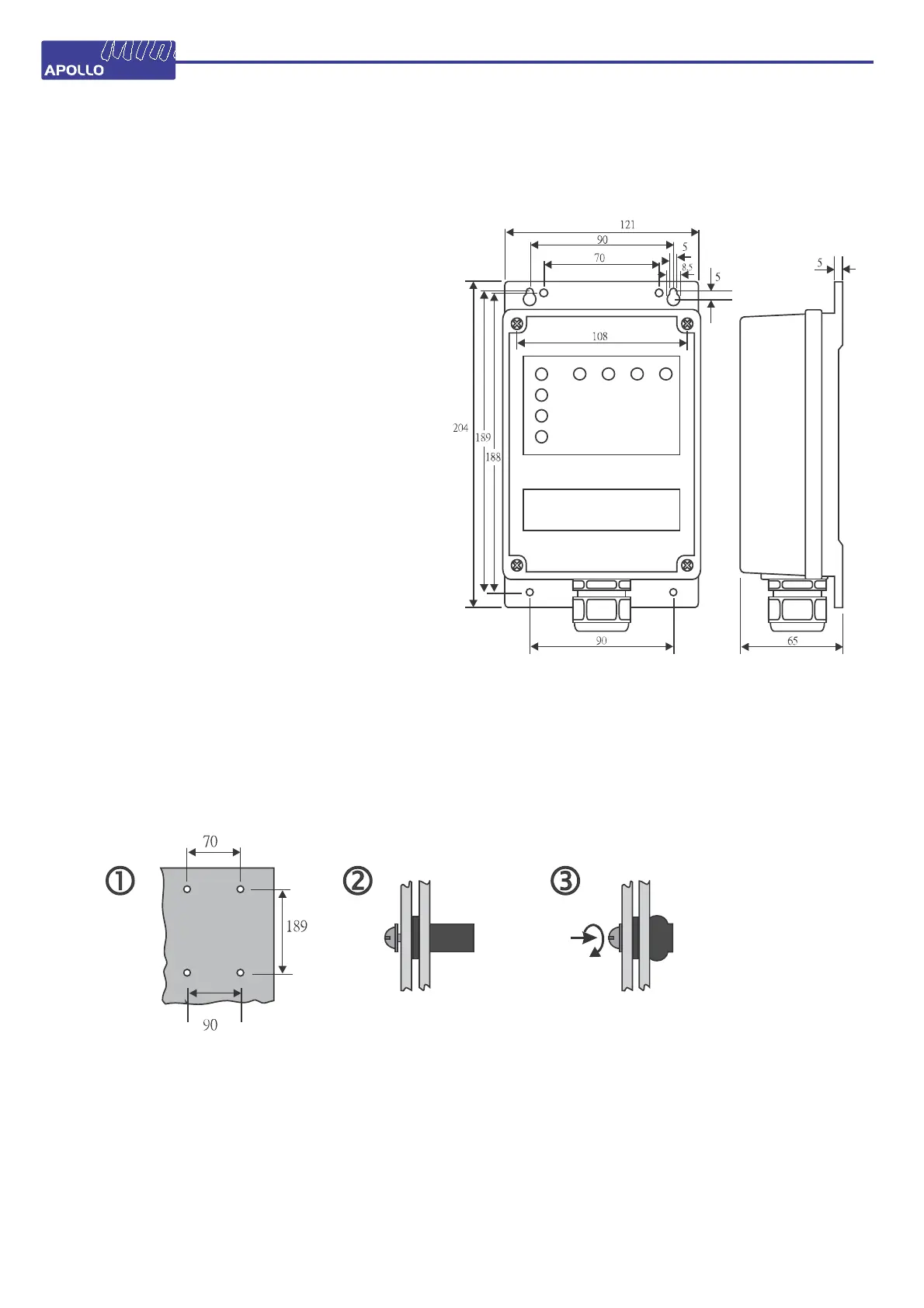

Dimension of receiver
(Box 1.1)
hole 8mm dia x 4
insert rubber absorber in position
screwing in until rubber
absorber inflated
4.4 INSTALLATION :RECEIVER ILLUSTRATION
5
