The TimeSaver Base® is a design
that provides installers with an open
working area with fixing holes shaped
to allow a fast mounting procedure.
The relay base incorporates a single-
pole voltage-free changeover contact
for switching ancillary equipment. The
maximum contact rating is 30V 1A.
When the detector changes to the
alarm state, the relay is energised,
causing the contact to change state.
The contact will remain in this
condition until the detector is reset.
A base is available which allows Orbis
detectors to be used in ‘Sav-Wire’
detection and alarm systems. Care
should be taken to connect Sav-Wire
bases correctly as shown in fig 9.
The Orbis Heater base is designed
to be used in cold climates where
environmental conditions could
result in either icing or condensation
affecting the operation of detectors. It

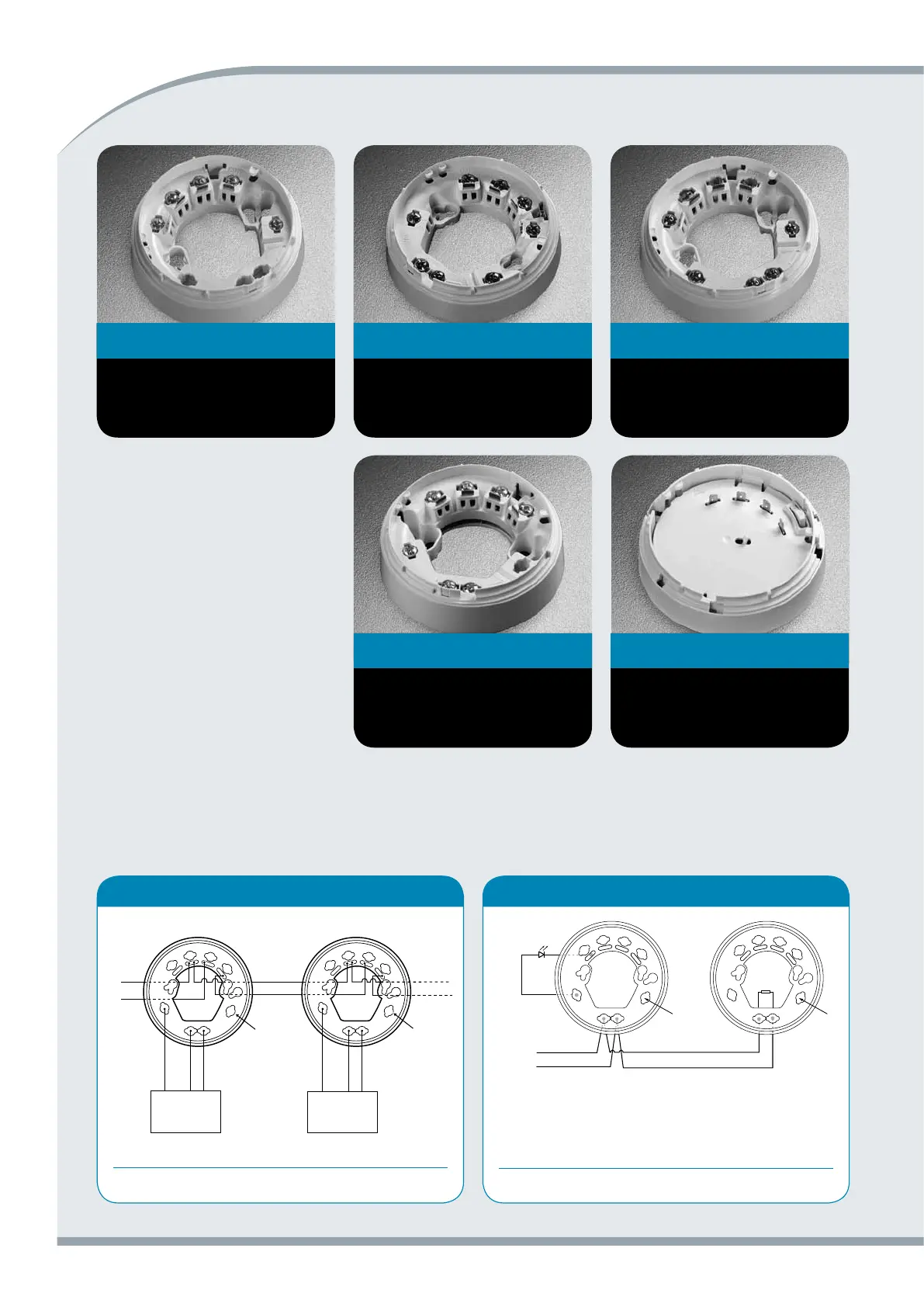

ORBIS
HEATER BASE
Part Number ORB-HB-00020-APO
ORBIS
TIMESAVER LX
Part Number ORB-MB-00002-APO
ORBIS
ADAPTOR
Part Number ORB-BA-10008-APO
LED
—
COM
—
IN +
OUT +
1
23
4
LED
—
COM
—
IN +
OUT +
1
23
4
+
_
To next
detector
From
control
panel
Screen
(Functional
Earth)
Screen
(Functional
Earth)
COM COM
N/C
N/C
N/O N/O
RELAY
CONTROLLED
DEVICE
RELAY
CONTROLLED
DEVICE
TimeSaver relay base wiring connections
Figure 8
© Apollo Fire Detectors Limited 2004/JDR
EOL
Resistor
Remote
LED
From
Control
Panel
+
–
Screen
(Functional
Earth)
© Apollo Fire Detectors Limited 2004/JDR
COM Not used
In + Not used
Out + Not Used
LED - Remote indicator
1 Remote indicator +
2 + Zone connection
3 - Zone connection
4 Earth screen
LED –
COM –
IN +
OUT +
1
2 3
4
LED –
COM –
IN +
OUT +
1
2 3
4
Sav-Wire base wiring connections
Figure 9
© Apollo Fire Detectors Limited 2004/JDR
NOTE: This Sav-Wire Base may be used only with compatible
control panels.
ORBIS
RELAY BASE®
Part Number ORB-RB-10004-APO
ORBIS
SAV-WIRE BASE®
Part Number ORB-SW-10005-APO
is recommended that the heater base
be used in conjunction with either a
Waterproof Base Cover or Deckhead
Mounting Box to minimise moisture
ingress.
An adaptor can be used to enable
Orbis detectors to be fitted to Series
60/65 bases.
