CODE HEIGHT DIAMETER A B C D E F ERP BAND STANDING LOSS (W)
EN120 906 550 290 330 390 345 N/F N/F B 47
EN150 1093 550 330 370 465 385 N/F N/F B 54
EN180 1281 550 330 370 465 385 N/F N/F B 58
EN210 1469 550 365 405 465 465 N/F 1150 C 70
EN250 1719 550 365 405 465 560 950 1400 C 81
EN300 2032 550 365 405 465 660 1100 1600 C 92
25.0˚
40.0˚
45.0˚
35.0˚
15.0˚
50.0˚
10.0˚

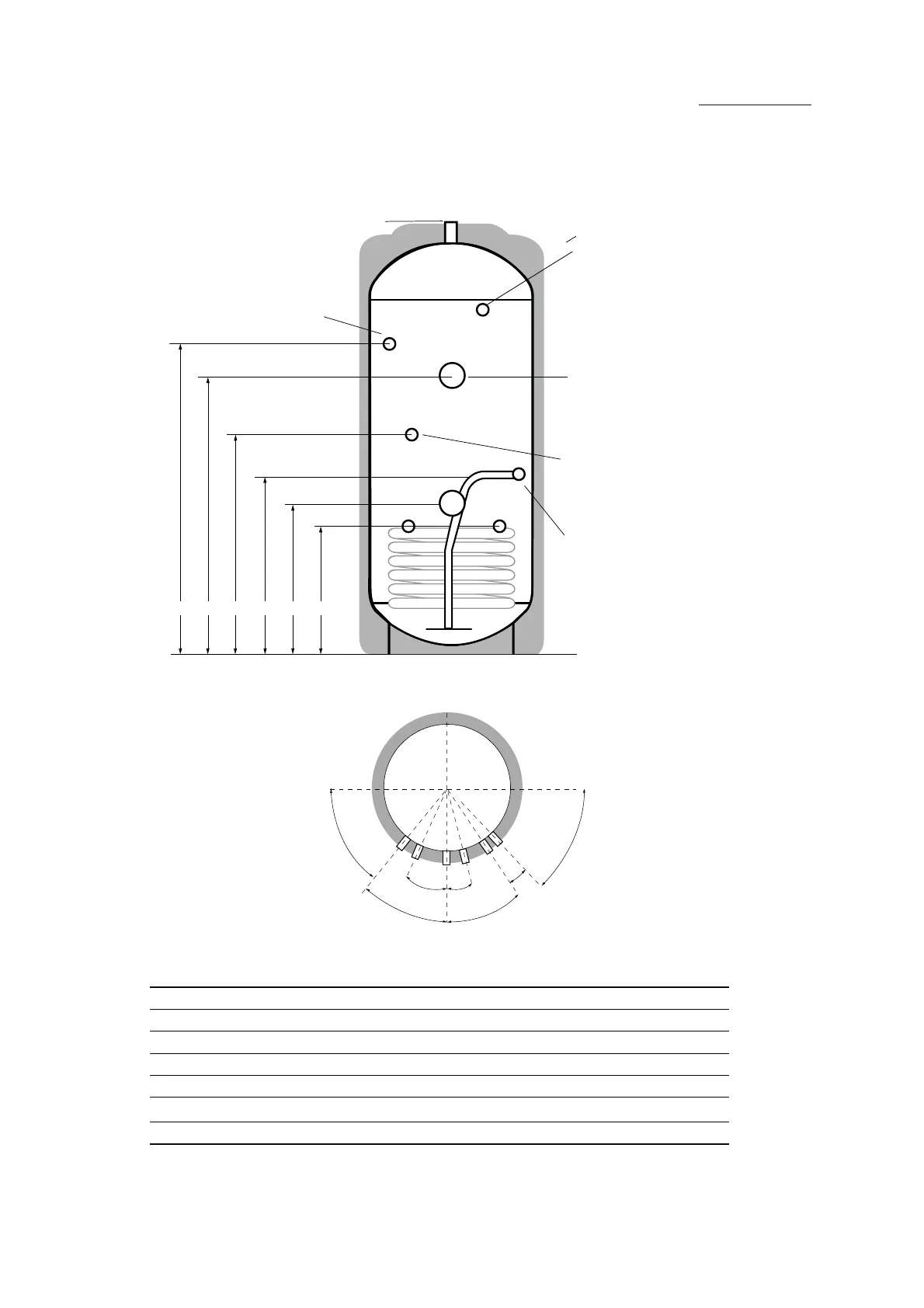

All Dimensions are in mm and are of the cased unit.
N/F = not fitted.
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
22mm SECONDARY
RETURN (not always tted.
See table)
22mm HOT
DRAW - OFF
“
F PTRV BOSS
1
2
DRY STAT
POCKET
SECOND IMMERSION HEATER
(not always tted. See table)
F E D C B A
STAINLESS UV - INDIRECT
12
STAINLESS UV
UNVENTED HOT WATER CYLINDERS
