Apple ADC - Page 13

Apple Cinema Display 22" (ADC) Take Apart - 11
ADC Cable
Procedure

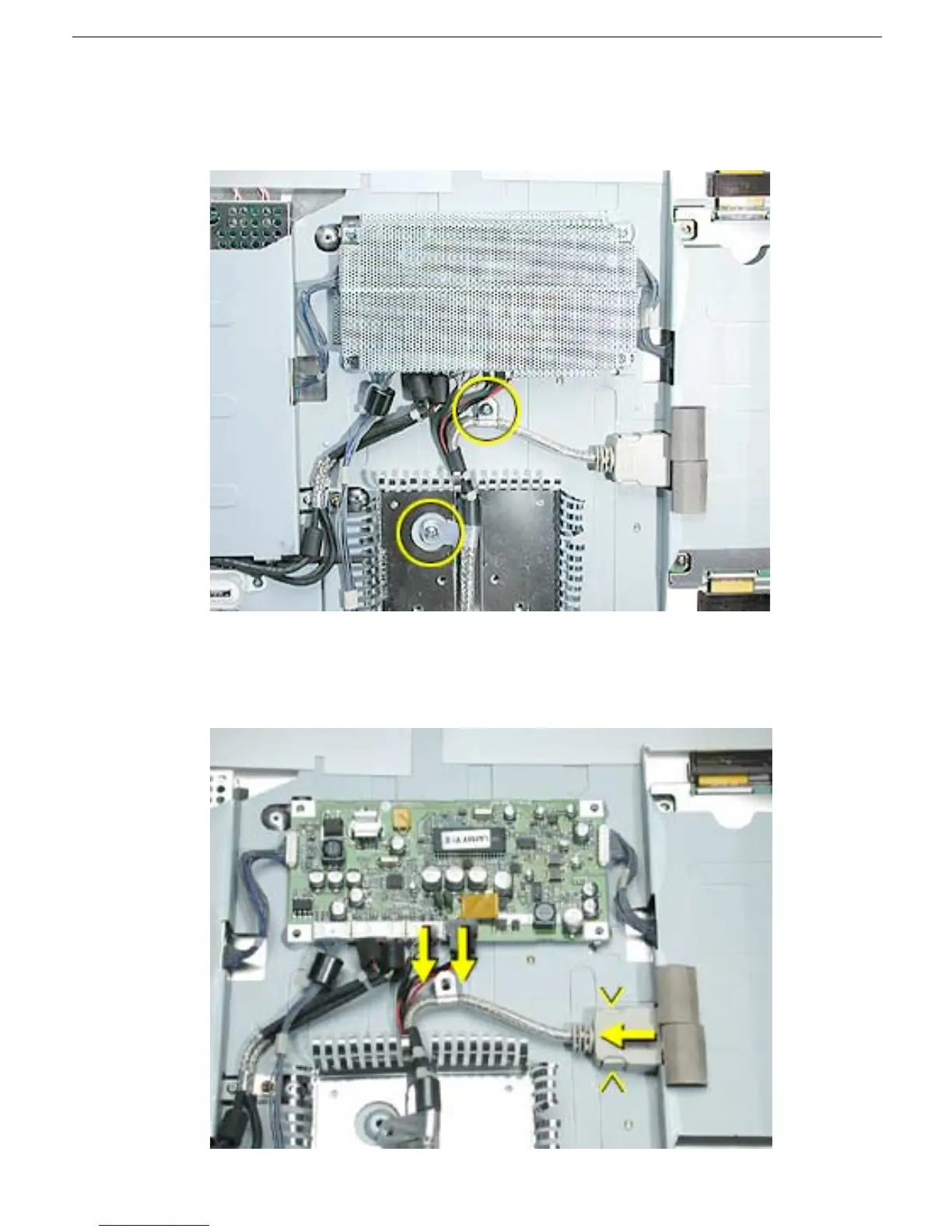

1. Remove two screws holding the ADC cable clips.
2. Disconnect the connectors from the ADC cable at the main board and to the display
panel, then remove the ADC cable.
