Apple Cinema Display 22" (ADC) Take Apart
Inverter Board
Procedure

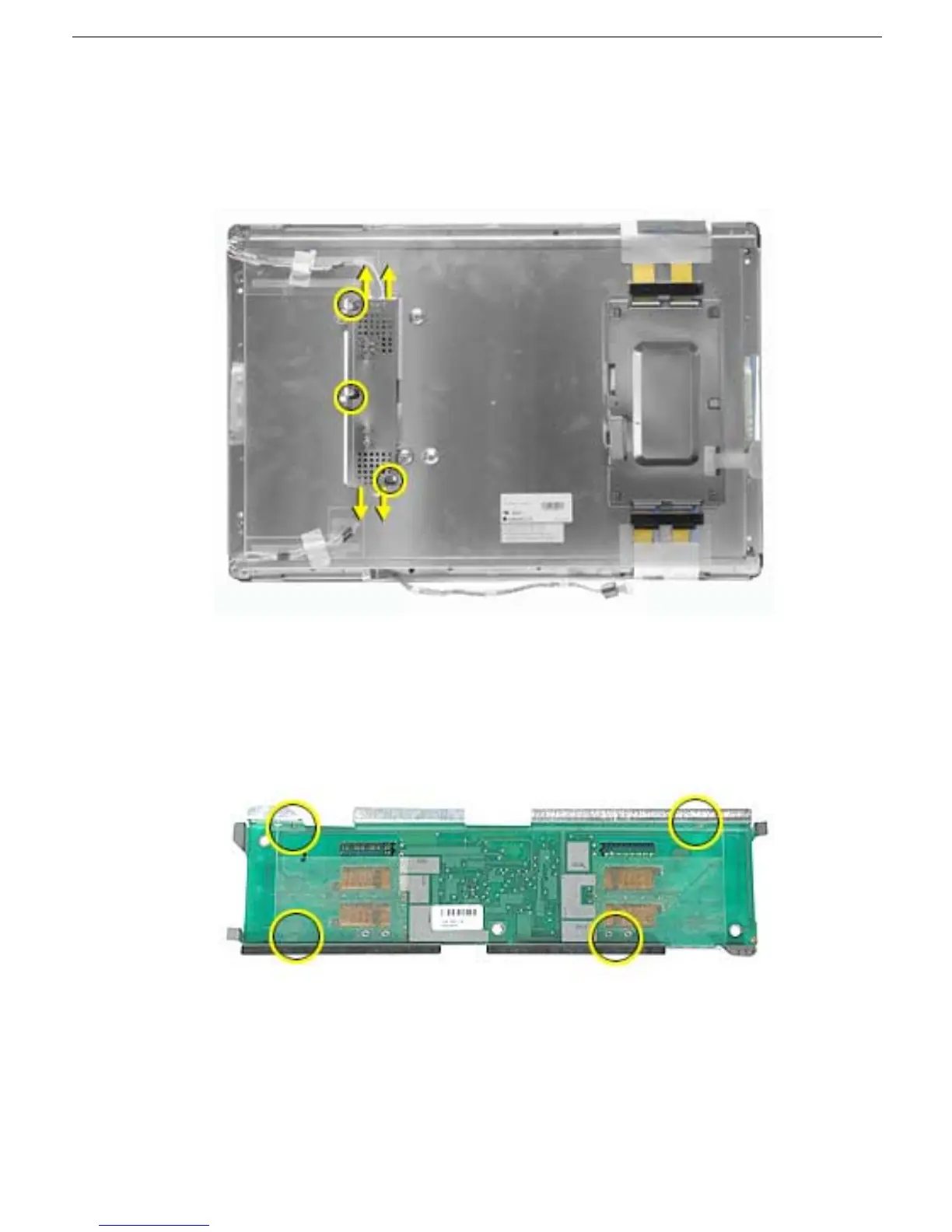

1. Disconnect the backlight bulb wire connectors from the inverter board.
2. Remove the three screws from the inverter shield.
3. The inverter shield has small catches inside that secure the inverter board. Pull back
slightly on the sides of the shield to release the board.
Replacement Note:
Make sure that the board is secured by the four catches on the
shield.
