22 - Apple Cinema Display 22" (ADC) Take Apart
Display Panel
Procedure

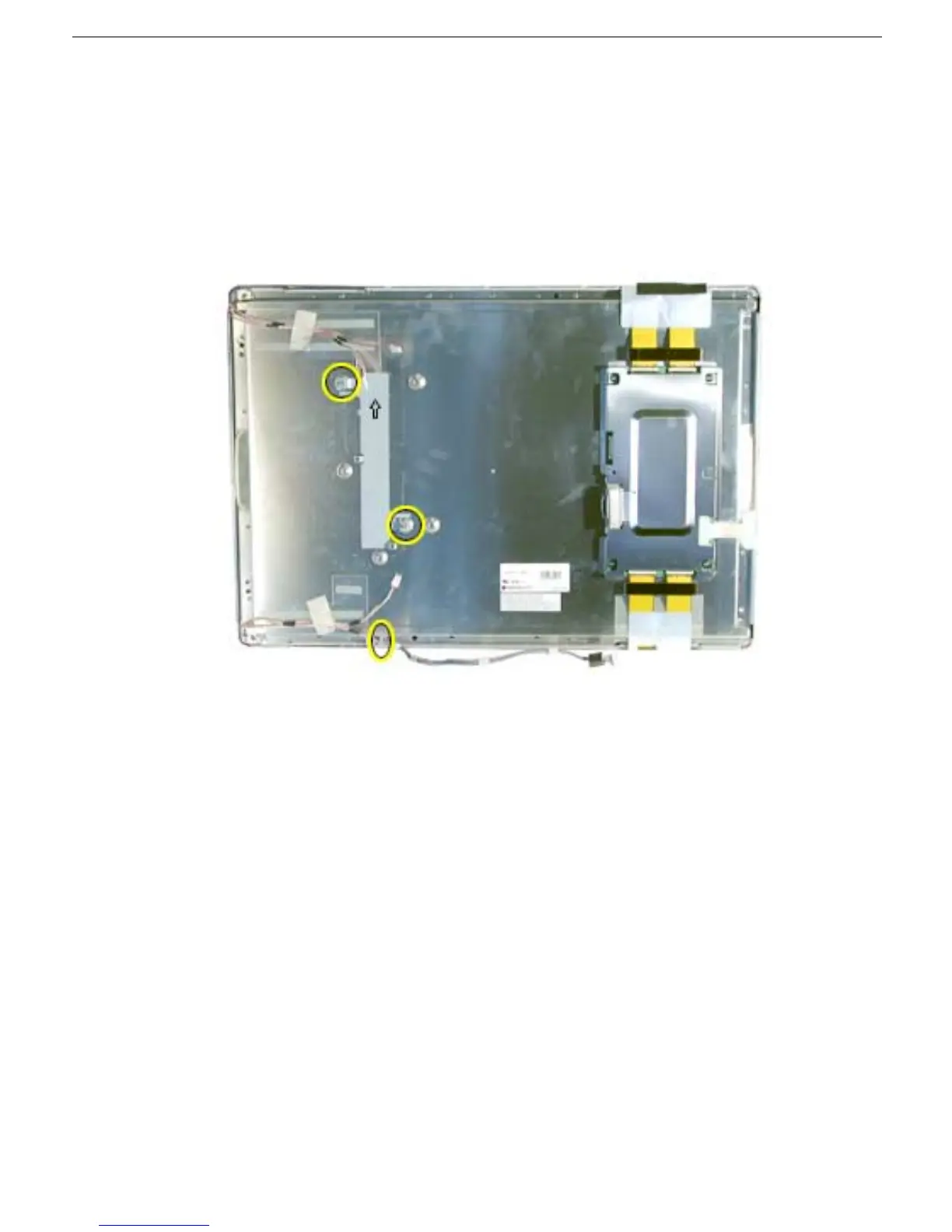

1. Remove the two screws on the inverter board bracket and remove the bracket.
2. Use the nylon probe tool to carefully spread the securing clip and remove the power/
brightness switch cable.
Replacement Note: Install the inverter board bracket with the arrow up.
Important: The backlight bulbs must be returned with the display panel.
