Apple ADC - Exploded View

2 - Apple Cinema Display 22" (ADC) Views

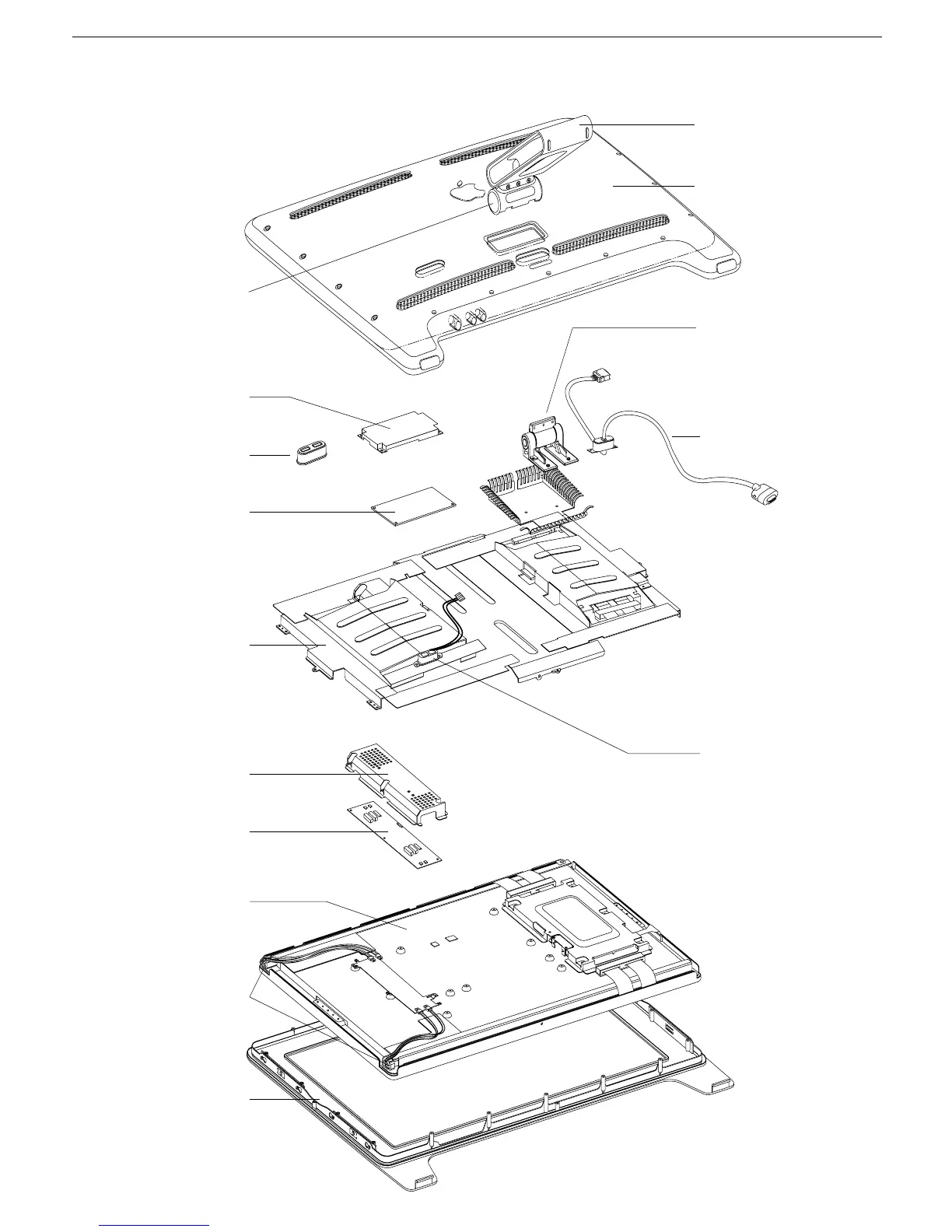

Exploded View
Exploded View
Exploded View
Foot 922-3941
Rear Cover 922-5666 (includes
power/brightness switch board)
ADC Cable Assembly
922-5669
USB Cable Assembly
922-5677
Hinge 922-5670
Hinge Cover 922-3945
USB Cover 922-5674
Chassis 922-5667
Inverter Board 661-2809
Inverter Shield 922-5671
Front Bezel Assembly
922-5668
Backlight Bulb Assembly
922-5675
LCD Display Assembly
661-2801
Main Board Shield 922-5673
Main Board 661-2810
