Apple Cinema Display (20-inch) Take Apart -
15
ADC Cable Assembly
Procedure

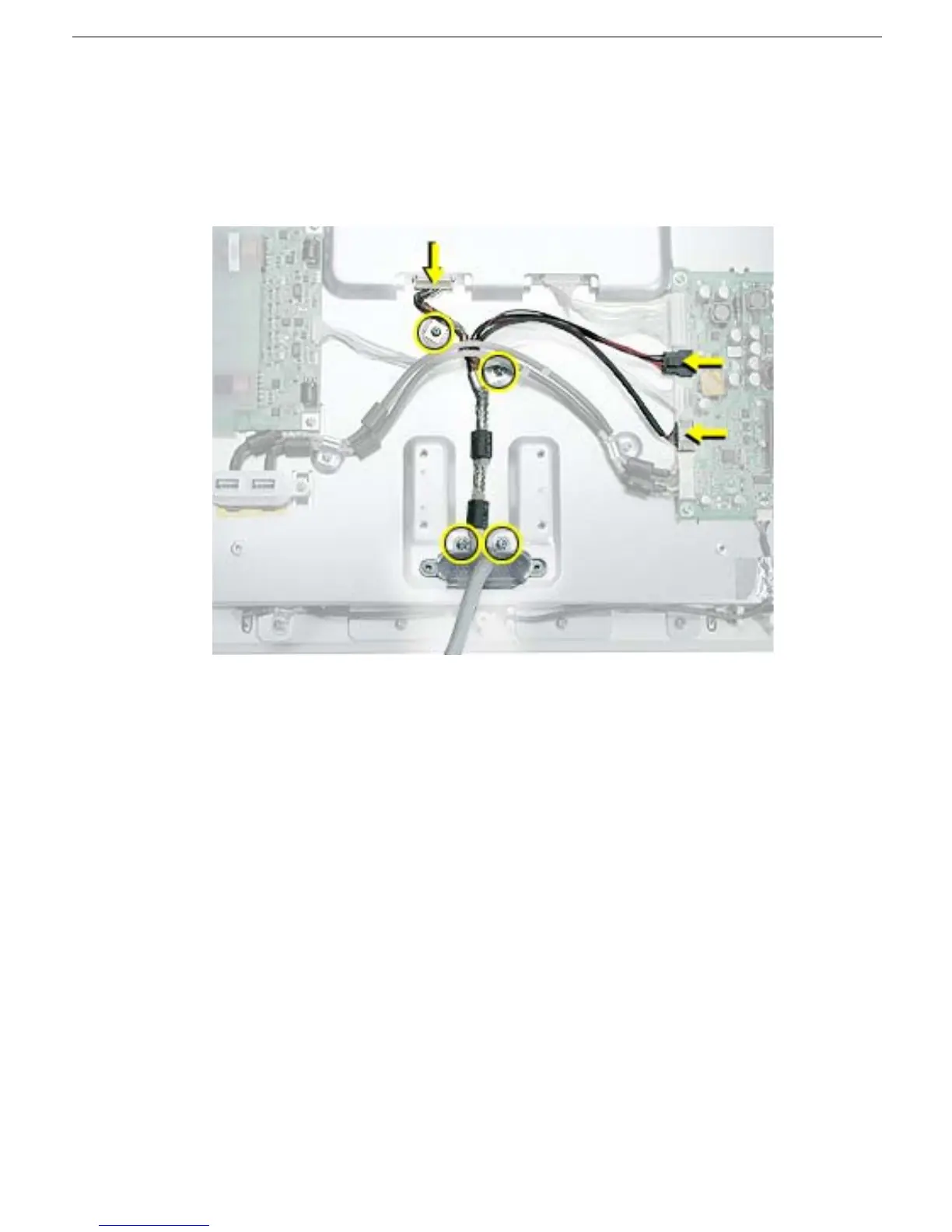

1. Remove four Phillips screws—two from the ADC cable hold down block and two from
the cable clamps.
2. Disconnect the ADC cable’s one cable connector from the panel, and two connectors
from the main board.
3. Remove the ADC cable assembly.
Replacement Note:
Transfer the two cable clamps to the replacement cable assembly, if
usable, otherwise install new clamps.
