Apple Cinema Display (20-inch) Take Apart
Main Board
Main Board
Tools
This procedure requires the following tools:
• #2 Phillips screwdriver
• ESD wrist strap
Preliminary Steps
Before you begin, do the following:
• Remove foot assembly and hinge cover
• Remove rear cover and rear cosmetic shield
• Remove EMI shield
Procedure
Note:
Wear an ESD wrist strap when performing this procedure.

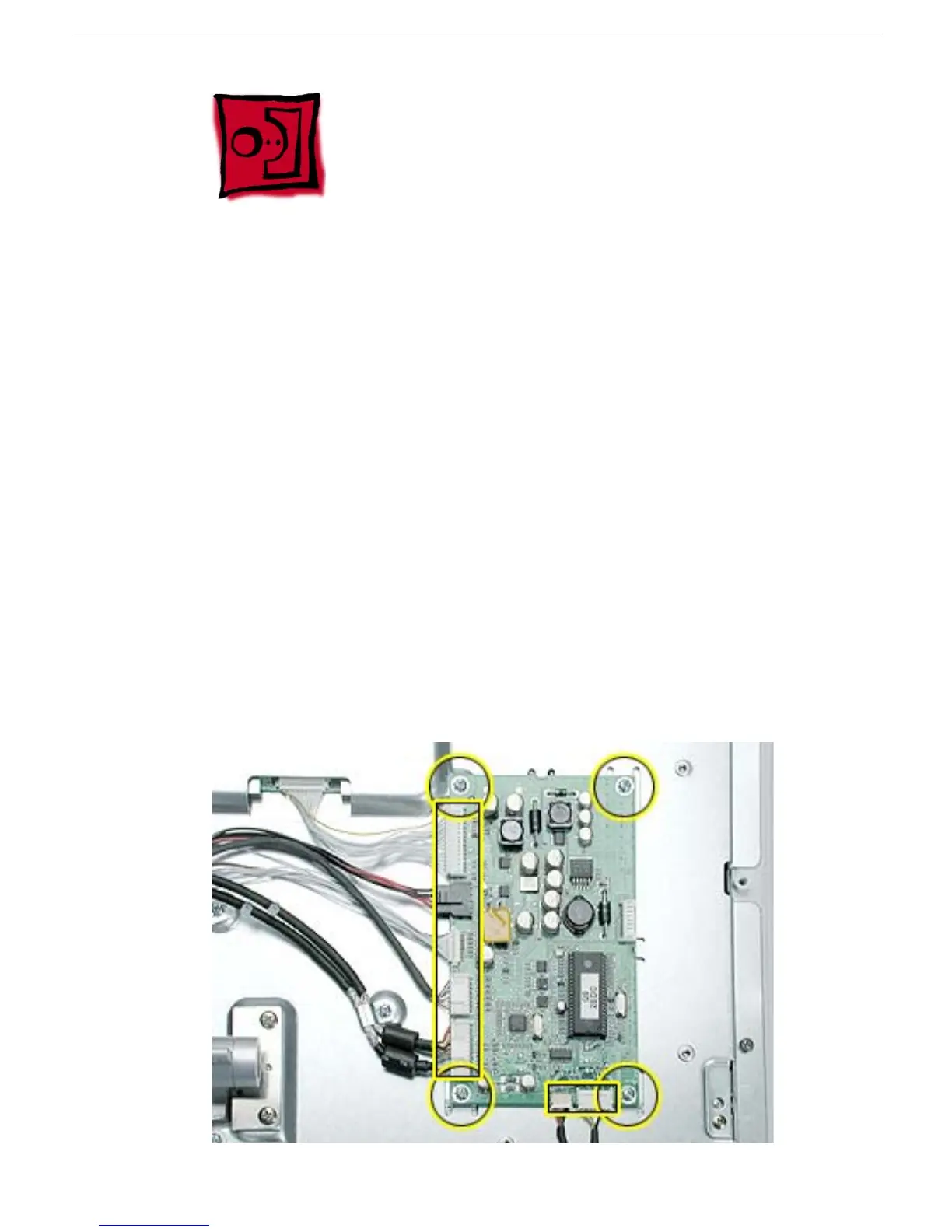

1. Disconnect the cable connectors from the main board.
2. Remove four Phillips screws and remove the board.
Replacement Note:
Verify notches along board edges align with tabs on chassis.
To Next Page
