Bottom Shield
Procedure
1. With the computer on a soft cloth, remove the four Phillips screws from the bottom
case.
2. If tape is used on the bottom shield, peel up, but do not remove, any pieces of tape.
Note:
When reassembling the computer, reuse the tape to secure the replacement
bottom shield.
Replacement Note: When reassembling the computer, install the replacement
bottom shield so that the corner of the shield closest to the ports is secured first.
(With the computer oriented as shown, this corner is the uppermost right corner.)

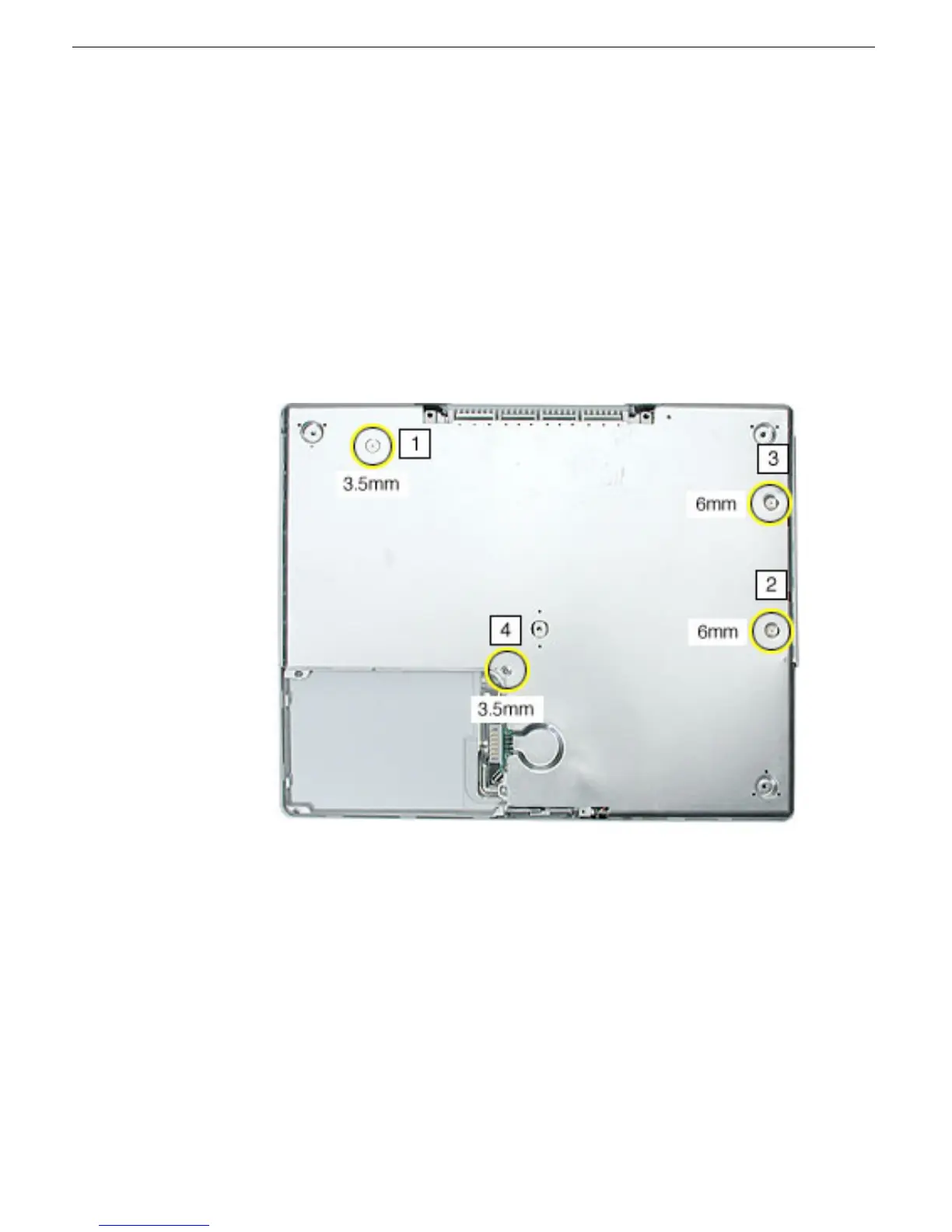

When reinstalling the screws, install them in the order shown.
