31 - iBook G4 (12-inch Mid 2005) Take Apart
Bottom Shield

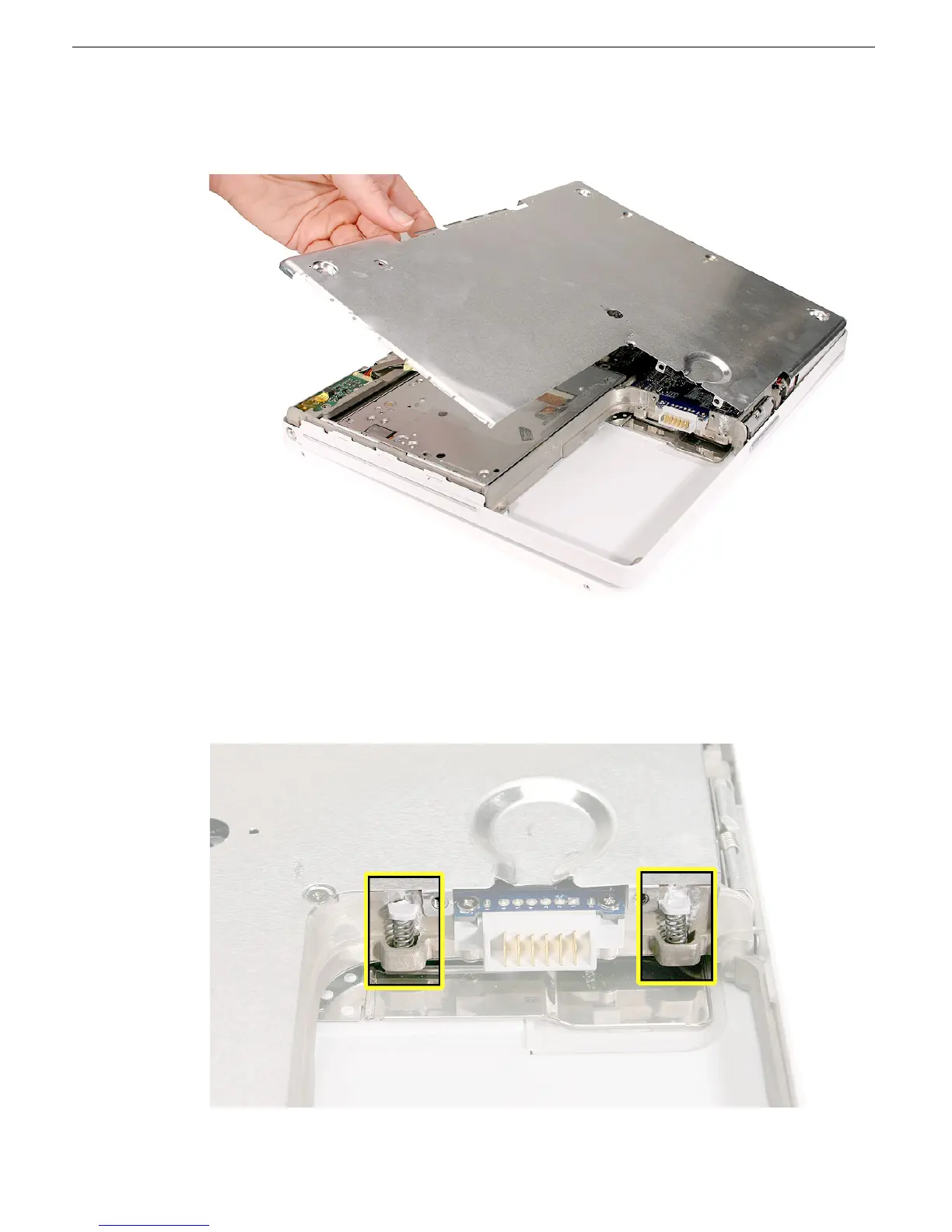

3. Warning: Do not bend the bottom shield.
Lift the bottom shield off the computer.
4. Note: The two springs in the battery compartment can become loose. When
reassembling the computer, make sure that the two springs are in place before
installing the bottom case. Each spring has grease on the coils, and each has a plastic
cap on one end. Make sure the cap fits securely on the spring, and the curved side of
the cap is positioned against the inner frame.
