2. Gently push the top of the card down until the brackets snap onto both sides of the memory card to lock it into place
(Figure 11).
3. Insert the RAM shield (Figure 12).
4. Verify that the end of the wire of the wire holder (where it is attached to the RAM shield, on the keyboard side) does not
catch on the side of the compartment. The screw holes on the shield and computer should align and the shield should lay
uniformly flat.
5. Verify that the AirPort antenna cable routes through the notch in the RAM shield without pinching.
6. Replace the RAM shield screws.
7. If you do not have an AirPort Card, flip down the wire holder over the AirPort Card antenna cable and secure it by inserting
the prongs of the holder into the slots in the RAM shield (Figure 13).
5iBook (Dual USB - Late 2001 - 14.1 LCD - 16 VRAM - 14.1 LCD 16 VRAM) - Memory

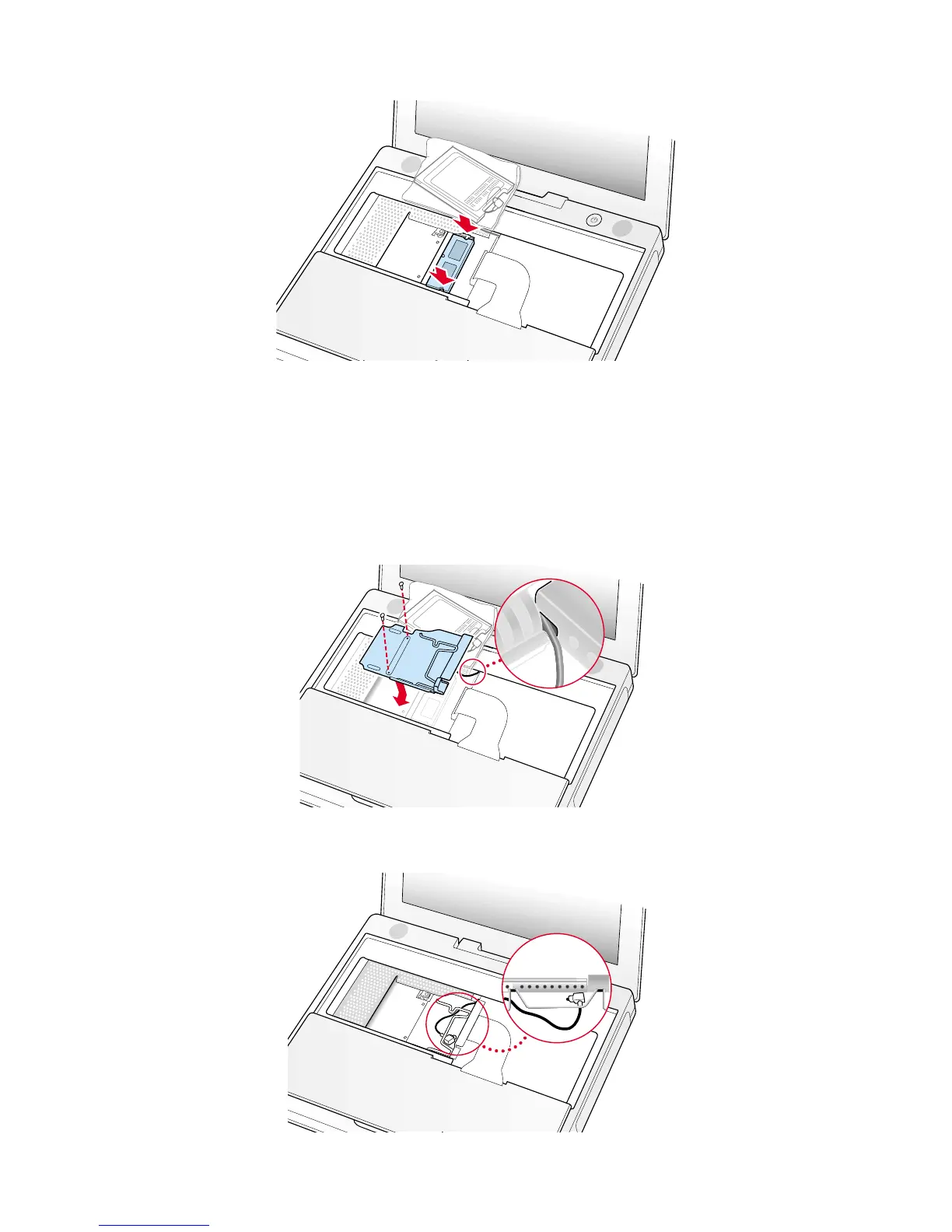

Figure 11
Figure 12
Figure 13
