iBook (14.1 LCD 16 VRAM) Take Apart -
18
Bottom Case

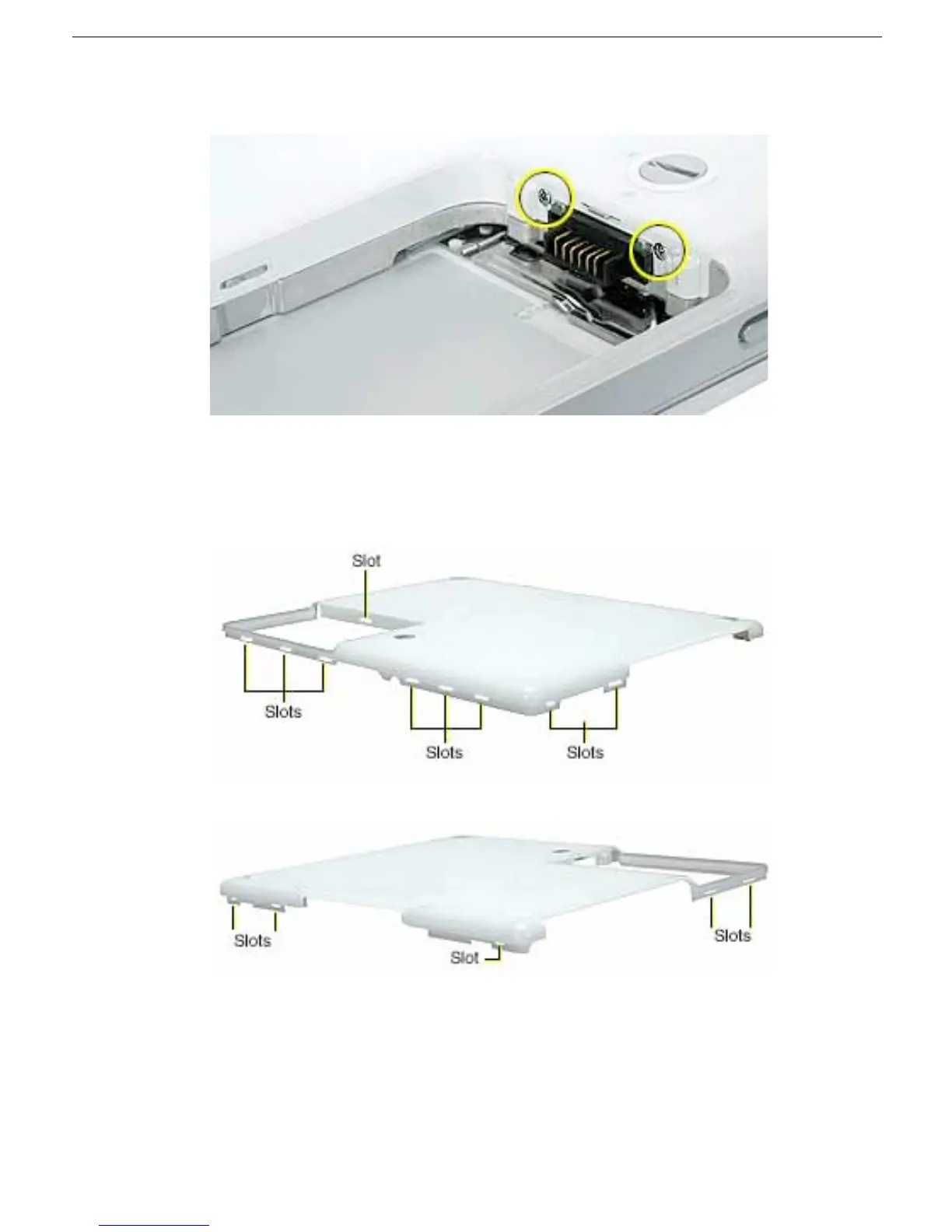

6. Remove the two identical Phillips screws next to the battery connector.
7. Note the locations of the slots on the bottom case. The computer frame has tabs that
fit into slots within the bottom case (six tabs in front; two on each side; three in back).
When using a black stick to pry off the bottom case, it helps to know where the slots
are as you free the tabs from the slots.
