Introduction to the Apple lie 13
Inside the Apple lie
The Apple lie consists of the 65028 microprocessor, RAM
memory, ROM memory, slots for the connection of controller
cards, a power supply, a speaker, game 1/0 connectors, a video
connector , a cassette interface , and a keyboard all enclosed in a
protective case. The inside of the Apple lie is shown in
Illustration 1-2.
Main Board
Once you have 9pened your Apple lie you will notice a large
green printed circuit board at the bottom of the open com-
partment. This board is known as the main board. The main
board contains the various IC chips and components that control
the Apple I le .

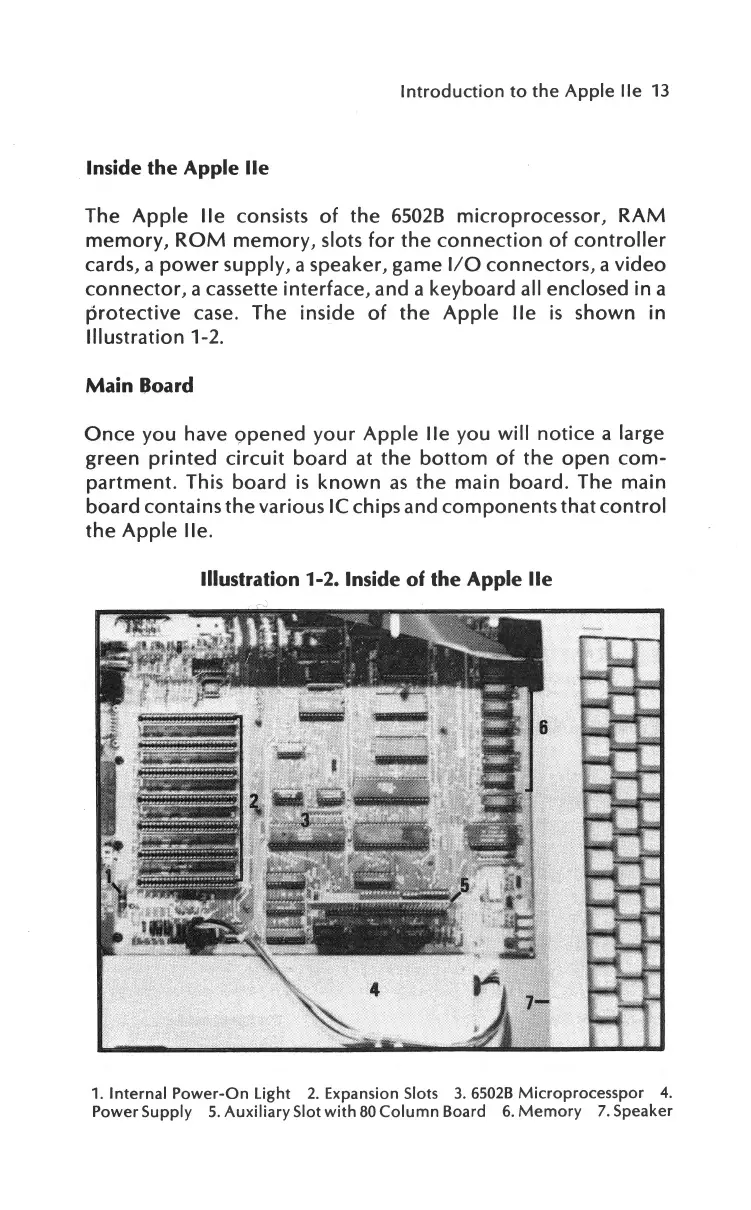

Illustration 1-2. Inside of the Apple lie
1. Interna l Power-On Light 2. Expansion Slots 3. 65028 M i croprocesspor 4.
Power
Supply 5. Auxiliary Slot with 80 Column Board 6. Memory 7. Speaker
