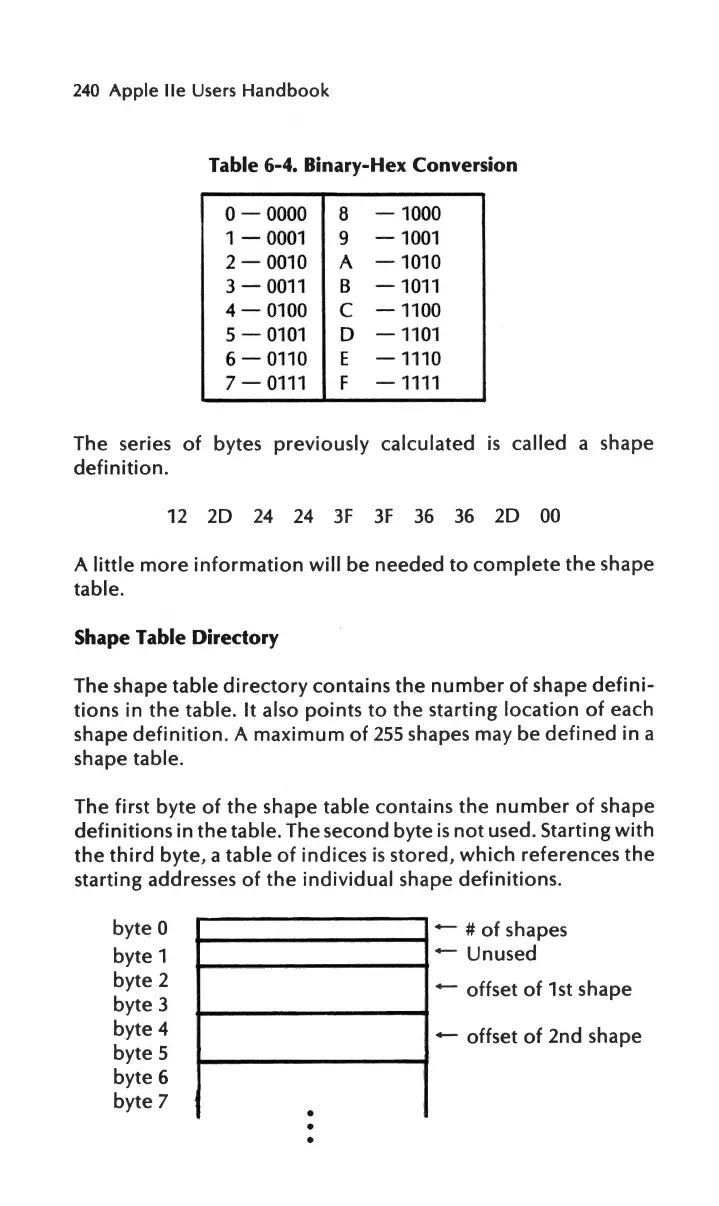

Apple IIe - Page 240

240
Apple
lie
Users
Handbook
Table
6-4. Binary-Hex Conversion
0-
0000
8
-1000
1 -
0001
9
-1001
2-
0010
A
-1010
3 -
0011
B
-1011
4-
0100
c
-1100
5 -
0101
D
-1101
6 -
0110
E
-1110
7 -
0111
F
-1111
The series of bytes previously calculated
is
called
a
shape
definition.
12
2D
24
24
3F 3F
36
36
2D
00
A
little
more
information
will
be
needed
to
complete
the
shape
table.
Shape
Table
Directory
The
shape
table
directory
contains
the
number
of
shape
defini-
tions
in
the
table.
It
also
points
to
the
starting
location
of
each
shape
definition. A maximum of
255
shapes
may
be
defined
in
a
shape
table.
The first
byte
of
the
shape
table
contains
the
number
of
shape
definitions
in
the
table.
The
second
byte
is
not
used. Starting with
the
third byte, a
table
of indices
is
stored,
which
references
the
starting addresses of
the
individual
shape
definitions.
byte
0
t-----------1-
#of
shapes
byte 1
byte 2
byte 3
-
Unused
t----------t
- offset of 1st
shape
- offset of 2nd
shape
byte 4
byte 5
byte 6
byte 7
•
•
•
