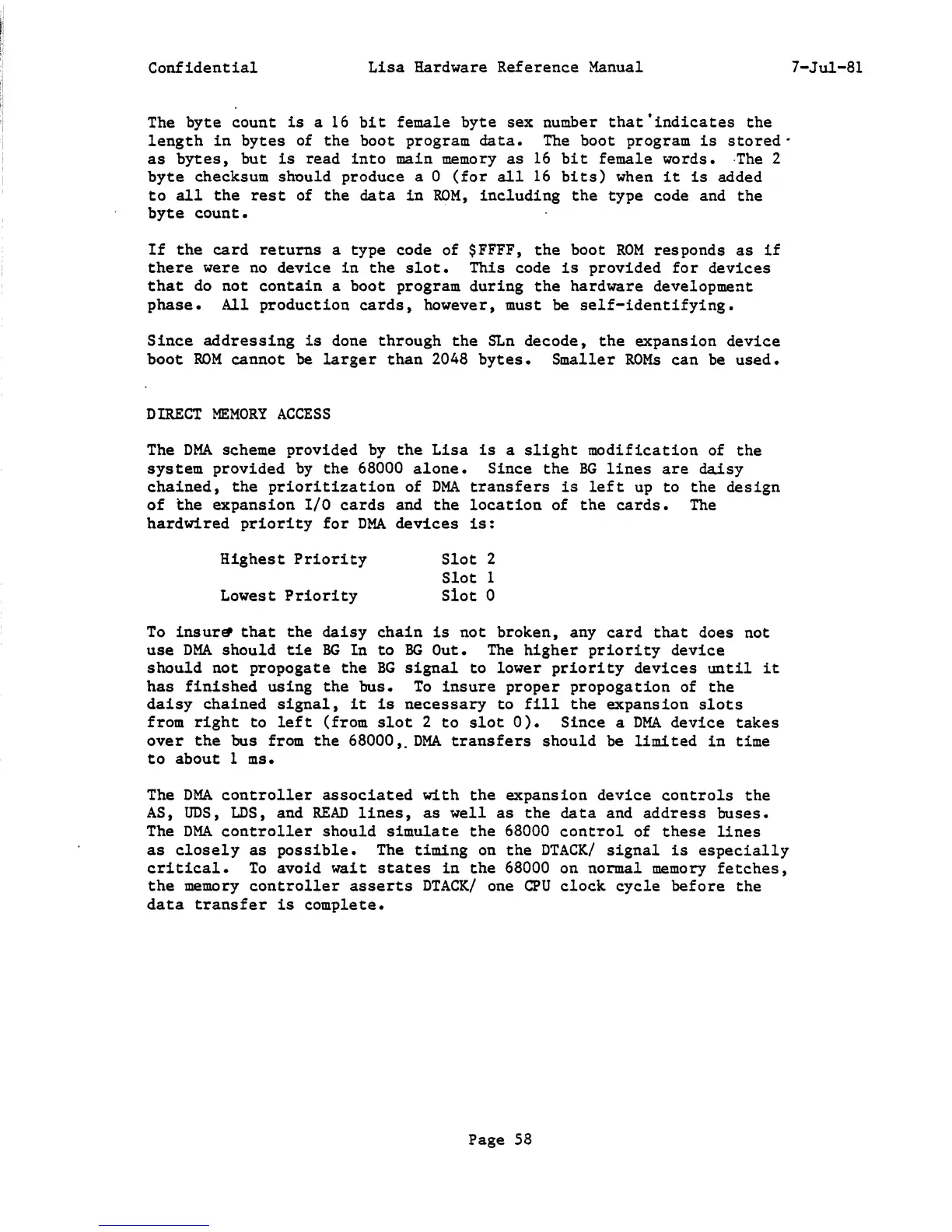

The
byte
count
is
a 16
bit
female
byte
sex number
that'indicates
the
length
in
bytes
of
the
boot program
data.
The
boot program
is
stored"
as
bytes,
but
is
read
into
main
memory
as
16
bit
female words.
·The
2
byte
checksum should produce a 0
(for
all
16
bits)
when
it
is
added
to
all
the
rest
of
the
data
in
ROM,
including
the
type
code and
the
byte
count.
.
If
the
card
returns
a type code of $FFFF,
the
boot
ROM
responds
as
if
there
were
no
device
in
the
slot.
This code
is
provided
for
devices
that
do
not
contain
a boot program
during
the
hardware development
phase.
All
production
cards,
however, must be
self-identifying.
Since
addressing
is
done
through
the
SLn
decode,
the
expansion
device
boot
ROM
cannot
be
larger
than
2048
bytes.
Smaller
ROMs
can
be
used.
DIRECT
MEMORY
ACCESS
The
DMA
scheme provided
by
the
Lisa
is
a
slight
modification
of
the
system
provided
by
the
68000
alone.
Since
the
BG
lines
are
daisy
chained,
the
prioritization
of
DMA
transfers
is
left
up
to
the
design
of
the
expansion
I/O
cards
and
the
location
of
the
cards.
The
hardwired
priority
for
DMA
devices
is:
Highest
Priority
Lowest
Priority
Slot
2
Slot
1
Slot
0
To
insur~
that
the
daisy
chain
is
not
broken, any
card
that
does not
use
DMA
should
tie
BG
In
to
BG
Out.
The
higher
priority
device
should
not
propogate
the
BG
signal
to
lower
priority
devices
until
it
has
finished
using
the
bus.
To
insure
proper
propogation
of
the
daisy
chained
signal,
it
is
necessary
to
fill
the
expansion
slots
from
right
to
left
(from
slot
2
to
slot
0).
Since a
DMA
device
takes
over
the
bus from
the
68000,.
DMA
transfers
should be
limited
in
time
to
about
1 ms.
The
DMA
controller
associated
with
the
expansion
device
controls
the
AS,
ODS,
LOS,
and
READ
lines,
as
well
as
the
data
and
address
buses.
The
DMA
controller
should
simulate
the
68000
control
of
these
lines
as
closely
as
possible.
The
timing
on
the
DTACK/
signal
is
especially
critical.
To
avoid
wait
states
in
the
68000 on normal
memory
fetches,
the
memory
controller
asserts
DTACK/
one
CPU
clock
cycle
before
the
data
transfer
is
complete.
Page
58
7-Jul-81
