Xserve Logic Board - 7

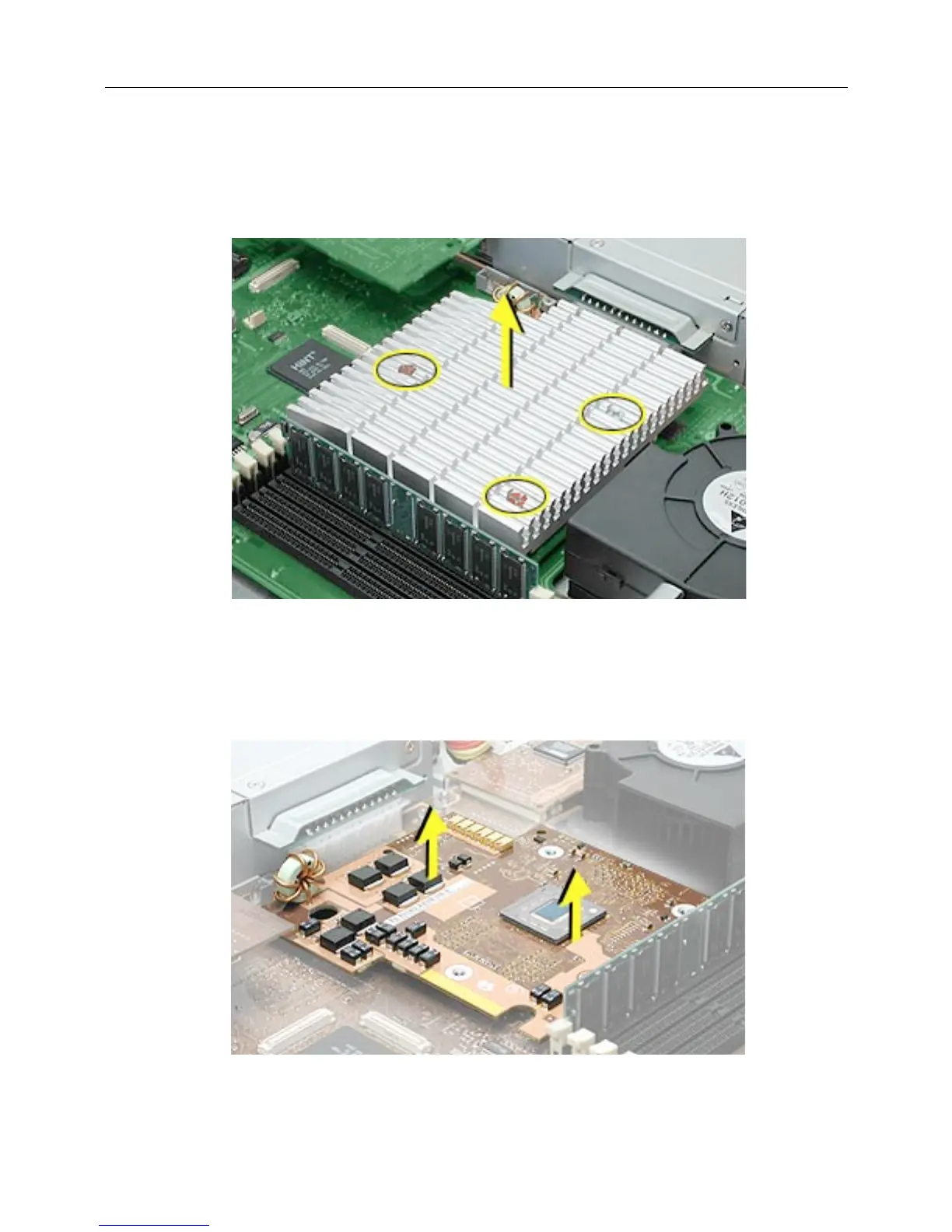

3. Release the three captive screws that secure the heatsink. (Figure 8)
4. Lift the heatsink straight up and remove it from the server.
Figure 8
5. Lift the processor straight up to disconnect it from the logic board. (Figure 9)
6. Remove the processor from the server.
Figure 9
