Apple Logic Board - Heatsink and Processor, Version 2

Xserve Logic Board - 8
Heatsink and Processor, Version 2
1. Using a Phillips screwdriver, remove the three screws that mount the heatsink and
processor to the logic board. (Figure 10)
2. Carefully lift the heatsink and processor straight up and out of the server.

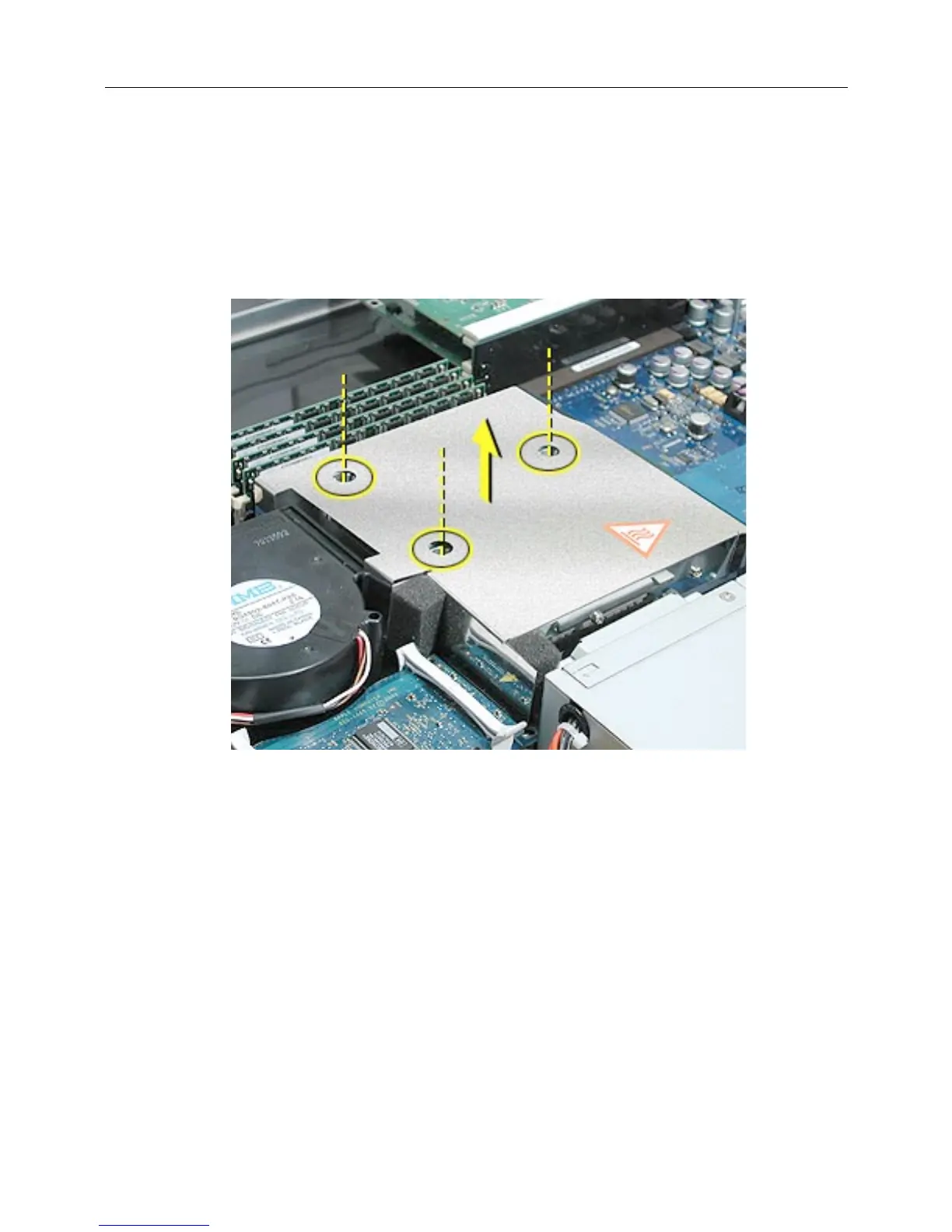

Figure 10
Note: The heatsink is part of the processor in Version 2; do not attempt to remove the
heatsink from the processor.
